• 2MXM40A9 - SPLIT

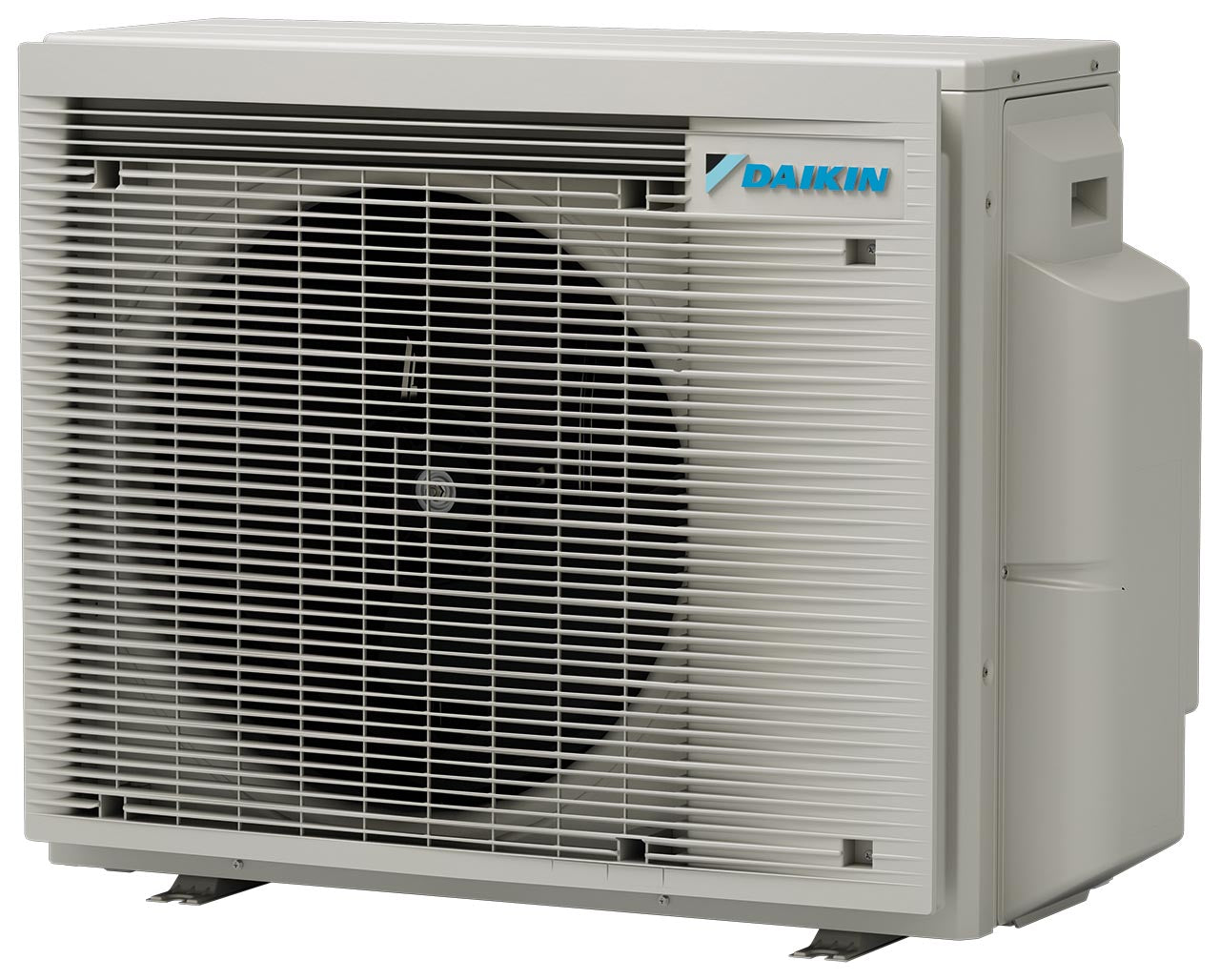

2MXM40A9 - SPLIT<COMP<H/P 2MXM40A9
2MXM40A9 - SPLIT<COMP<H/P 2MXM40A9
  • SKU: 2MXM40A9

2MXM40A9 - SPLIT<COMP<H/P

£1,581.00

Shipping calculated at checkout.

Price excludes VAT. VAT will be added at checkout.

Free Shipping on Orders Over £500

Easy 30-day Returns

Manufacturer’s Warranty

Select The Options Above

Product Code: 2MXM40A9

2MXM40A9 - SPLIT<COMP<H/P
Searched Code: 2MXM40A9

Product Details

Multi model application

Key Features

  • New design outlook for outdoor unit
  • Seasonal efficiency values up to A+++ in cooling and A++ in heating
  • Wide choice of connectable indoor units
  • Bluevolution range: lower environmental impact
  • Outdoor units with swing compressor
  • Multi application: combines up to 2 indoor units

Technical Documentation

View technical documentation

Technical Specifications

Category Sub Category Parameter Condition Value Unit
Compressor Type Hermetically sealed swing compressor
Dimensions Unit Depth 350 mm
Height 552 mm
Width 852 mm
Energy Efficiency Range A+++ ~ D
Operation range Cooling Ambient Min. -10 °CDB
Max. 46 °CDB
Piping connections Additional refrigerant charge 0.02 (for piping length exceeding 20m) kg/m
Level difference IU OU Max. 15
IU Max. 7.5
Piping length OU IU Max. 20 (1)
Total piping length System Actual 30 m
Power supply Frequency 50 Hz
Phase 1~
220-240
Refrigerant Charge 0.88 kg
0.60
GWP 675
Type R-32
Sound pressure level Cooling Nom. 46 dBA
Heating Nom. 48 dBA
Weight Unit 36 kg
