• 2MXM68A8 - 2Port R32 Multi 6.8kW
2MXM68A8 - 2Port R32 Multi 6.8kW 2MXM68A8
2MXM68A8 - 2Port R32 Multi 6.8kW 2MXM68A8
  • SKU: 2MXM68A8

2MXM68A8 - 2Port R32 Multi 6.8kW

£2,098.00

Shipping calculated at checkout.

Price excludes VAT. VAT will be added at checkout.

Free Shipping on Orders Over £500

Easy 30-day Returns

Manufacturer’s Warranty

Select The Options Above

Product Code: 2MXM68A8

2MXM68A8 - 2Port R32 Multi 6.8kW
Searched Code: 2MXM68A8

Product Details

Multi model application

Key Features

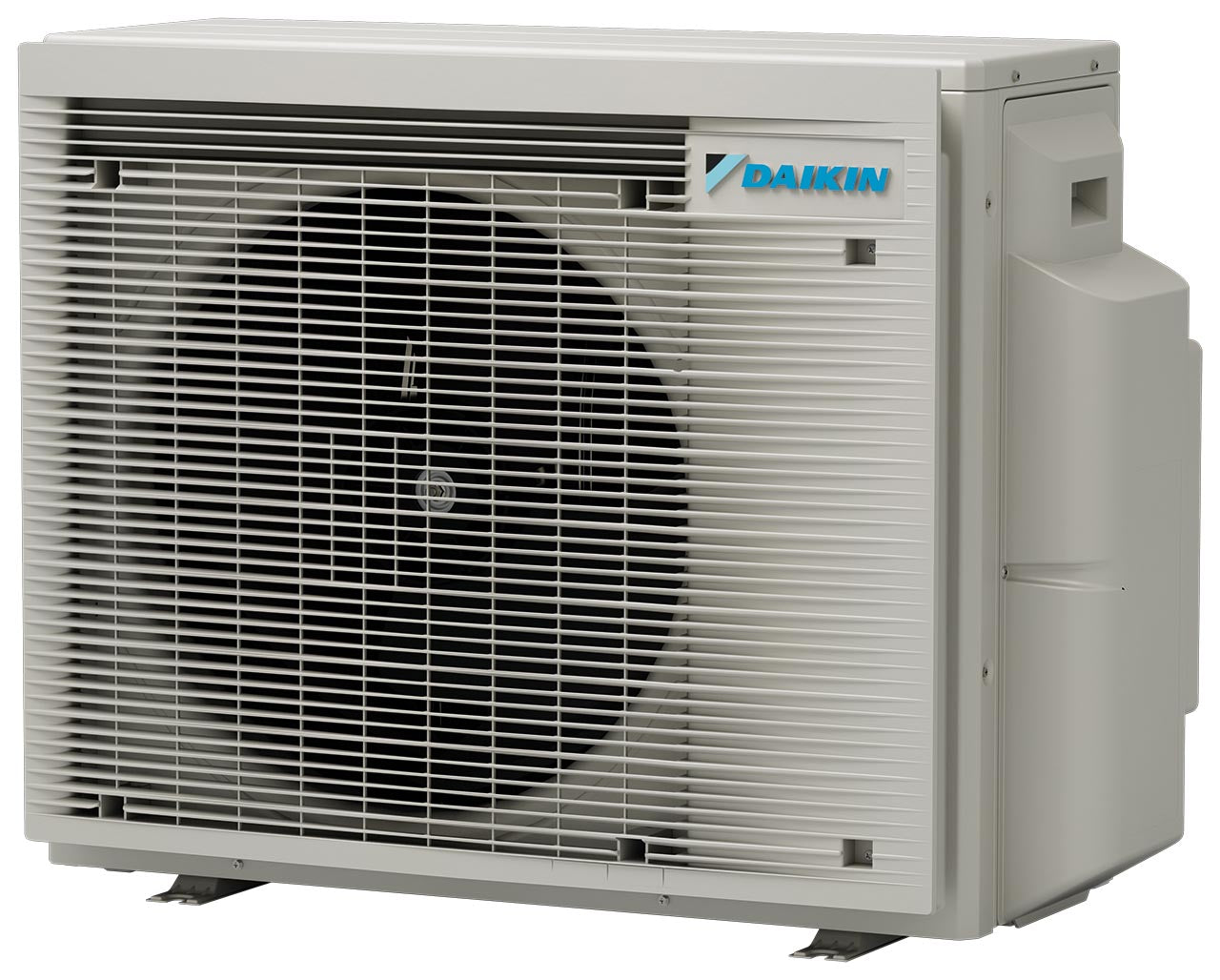

  • New design outlook for outdoor unit
  • Seasonal efficiency values up to A+++ in cooling and A++ in heating
  • Wide choice of connectable indoor units
  • New extended operation range for maximum comfort in more severe conditions (from -20C up to +50C).
  • Bluevolution range: lower environmental impact
  • Outdoor units with swing compressor
  • Multi application: combines up to 2 indoor units

Technical Documentation

View technical documentation

Technical Specifications

Category Sub Category Parameter Condition Value Unit
Compressor Type Hermetically sealed swing compressor
Dimensions Unit Depth 408 mm
Height 734 mm
Width 974 mm
Energy Efficiency Range A+++ ~ D
Operation range Cooling Ambient Min. -10 °CDB
Max. 50 °CDB
Piping connections Additional refrigerant charge 0.02 (for piping length exceeding 30m) kg/m
Level difference IU OU Max. 15
IU Max. 7.5
Piping length OU IU Max. 25 (1)
Total piping length System Actual 50 m
Power supply Frequency 50 Hz
Phase 1~
220-240
Refrigerant Charge 2.00 kg
1.35
GWP 675
Type R-32
Sound pressure level Cooling Nom. 48 dBA
Heating Nom. 48 dBA
Weight Unit 60 kg
