- SKU: 4MWXM52A9

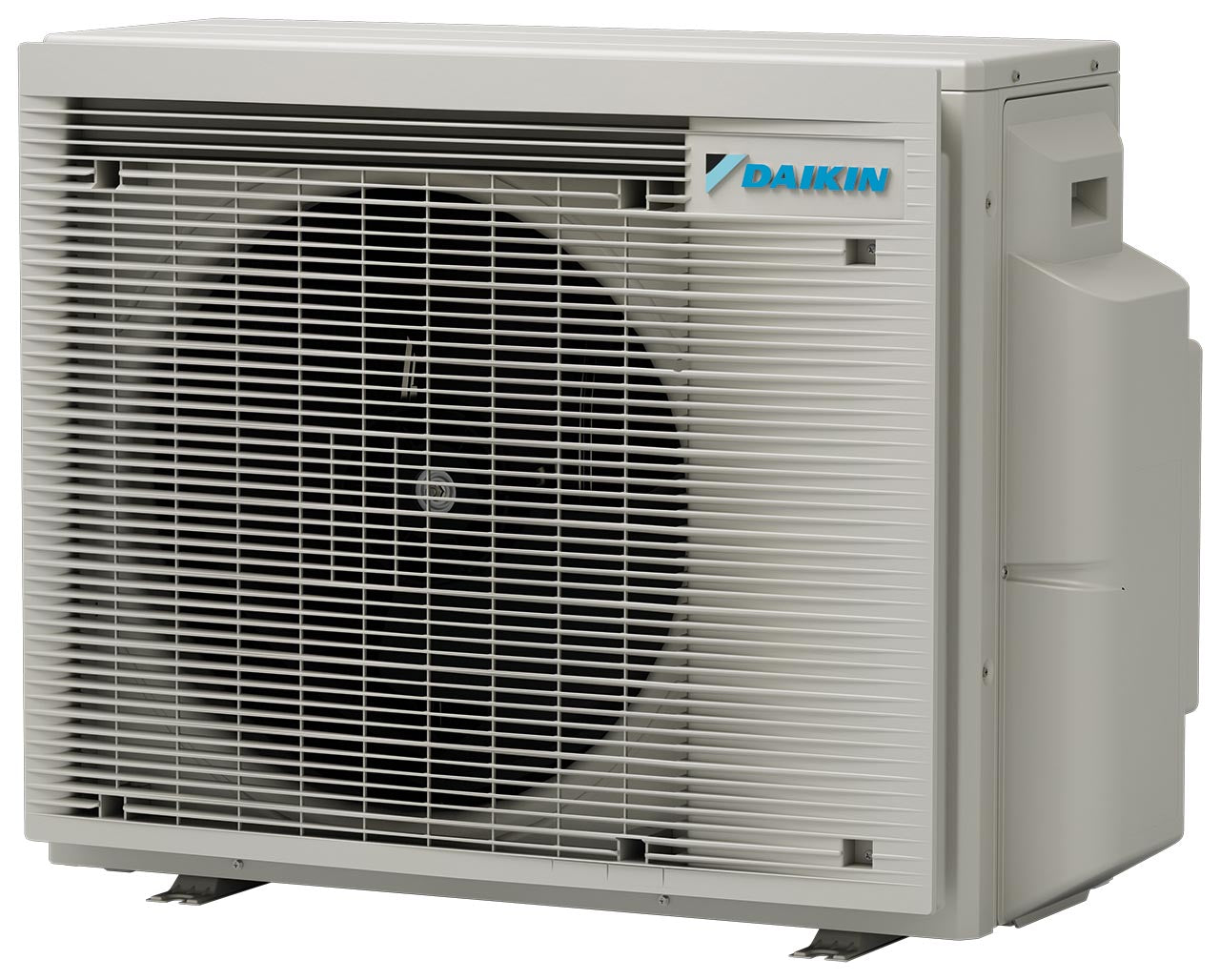

4MWXM52A9 - Multi+
£1,923.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: 4MWXM52A9
4MWXM52A9 - Multi+
Searched Code: 4MWXM52A9
Searched Code: 4MWXM52A9
Product Details
Multi model application
Key Features
- Multi + combines up to 3 indoor units and 1 tank
- New design outlook for outdoor unit
- Seasonal efficiency values up to A+++ in cooling and A++ in heating
- Wide choice of connectable indoor units
- Multi application: combines up to 3 indoor units
Technical Documentation
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Compressor | Type | Hermetically sealed swing compressor | |||
| Dimensions | Unit | Depth | 401 | mm | |
| Height | 734 | mm | |||
| Width | 974 | mm | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Fan motor | Speed | Cooling | Super low | 420 | rpm |
| Heating | Super low | 420 | rpm | ||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB |
| Max. | 46 | °CDB | |||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 30m) | kg/m | ||
| Level difference | IU | OU | Max. | 15.0 | |
| IU | Max. | 7.5 | |||
| Piping length | OU | IU | Max. | 25 (1) | |
| Total piping length | System | Actual | 50 | m | |
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 220-240 | |||||
| Refrigerant | Charge | 2.2 | kg | ||
| 1.49 | |||||
| GWP | 675 | ||||
| Type | R-32 | ||||
| Sound pressure level | Cooling | Nom. | 46 | dBA | |
| Heating | Nom. | 47 | dBA | ||
| Weight | Unit | 60 | kg |
