- SKU: 5MWXM68A9

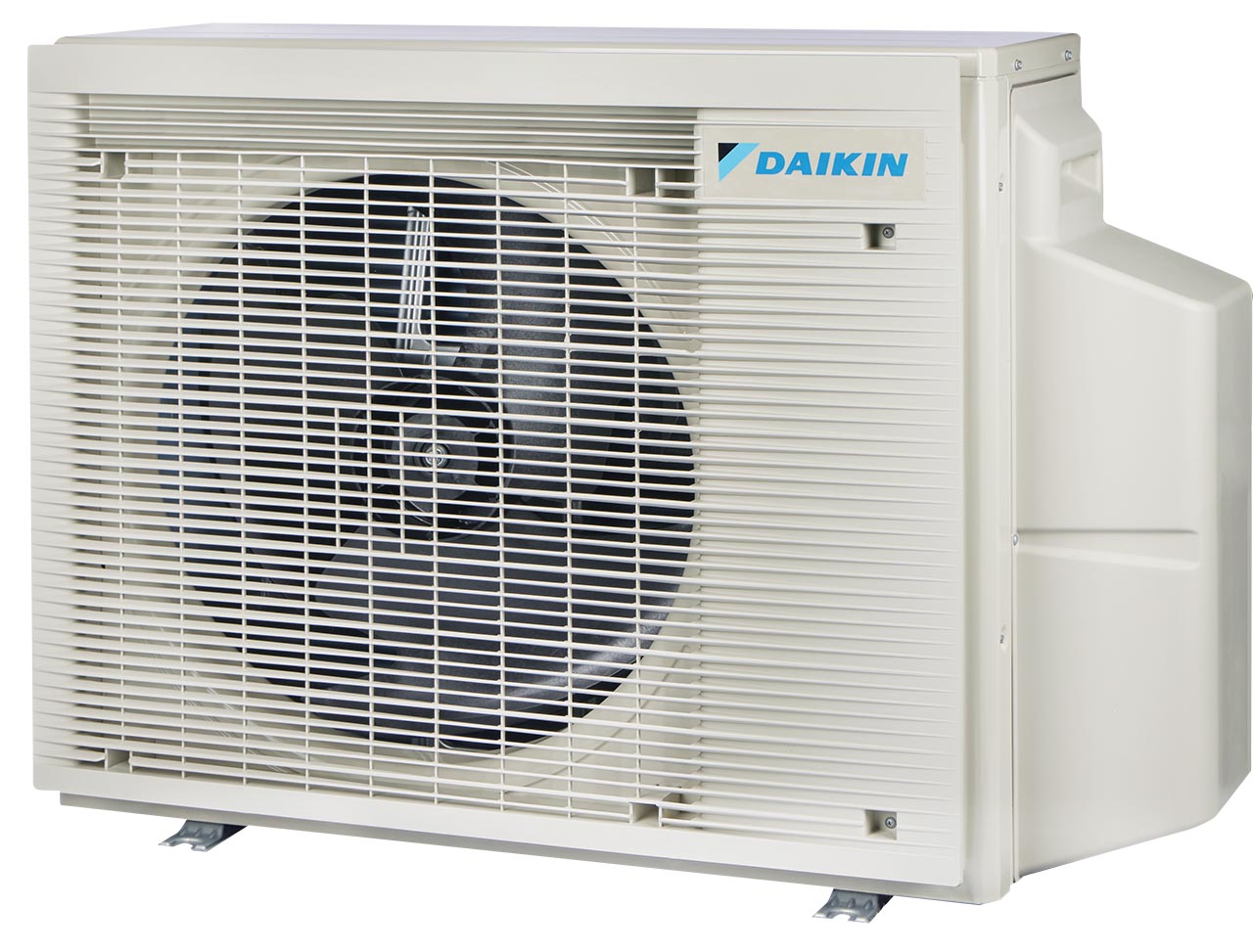

5MWXM68A9 - 5 port Multi+ - 6.8kW Outdoor Unit
£2,852.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: 5MWXM68A9
5MWXM68A9 - 5 port Multi+ - 6.8kW Outdoor Unit
Searched Code: 5MWXM68A9
Searched Code: 5MWXM68A9
Product Details
Multi model application
Key Features
- New design outlook for outdoor unit
- Seasonal efficiency values up to A+++ in cooling and A++ in heating
- Multi application: combines up to 3 indoor units
- Multi+ combines up to 4 indoor units and 1 tank
Technical Documentation
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Compressor | Type | Hermetically sealed swing compressor | |||
| Dimensions | Unit | Depth | 408 | mm | |
| Height | 734 | mm | |||
| Width | 1040 | mm | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB |
| Max. | 46 | °CDB | |||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 30m) | kg/m | ||
| Level difference | IU | OU | Max. | 15 (3) | |
| IU | Max. | 7.5 (3) | |||
| Piping length | OU | IU | Max. | 25 (2) | |
| Total piping length | System | Actual | 60 | m | |
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 220-440 | |||||
| Refrigerant | Charge | 2 | kg | ||
| 1.35 | |||||
| GWP | 675 | ||||
| Type | R-32 | ||||
| Sound pressure level | Cooling | Nom. | 48 | dBA | |
| Heating | Nom. | 49 | dBA | ||
| Weight | Unit | 69 | kg |
