- SKU: FTXM25A + RXM25A9
SB.FTXM25A/RXMA9/1 - Standard Inverter - 2.5kW - 1ph - Max. 20m + RXM25A9 - SPLIT<COMP<H/P
£938.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: FTXM25A + RXM25A9
SB.FTXM25A/RXMA9/1 - Standard Inverter - 2.5kW - 1ph - Max. 20m
Searched Code: FTXM25A
Searched Code: FTXM25A
Product Details

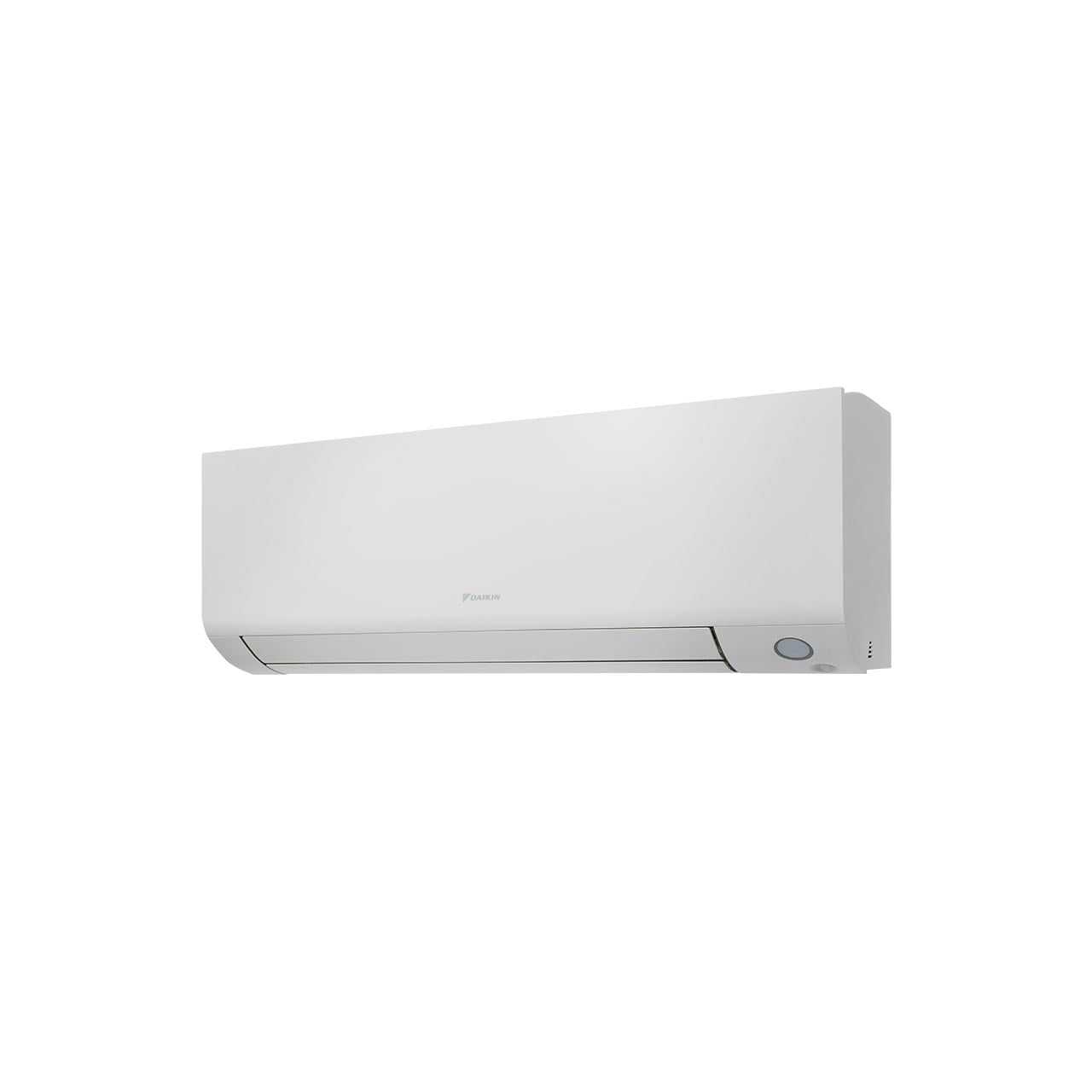

Wall mounted unit
Attractive, wall mounted design with perfect indoor air quality
Energy Labels
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Colour | White | |||
| Control systems | Infrared remote control | ARC466A86 | |||
| Wired remote control | BRC073A1 | ||||
| Dimensions | Unit | Depth | 252 | mm | |
| Height | 298 | mm | |||
| Width | 804 | mm | |||
| Fan | Air flow rate | Cooling | High | 11.9 | m³/min |
| Medium | 8.9 | m³/min | |||
| Low | 6.3 | m³/min | |||
| Silent operation | 4.9 | m³/min | |||
| Heating | High | 11.4 | m³/min | ||
| Medium | 9.2 | m³/min | |||
| Low | 6.9 | m³/min | |||
| Silent operation | 4.9 | m³/min | |||
| Piping connections | Drain | 16 | |||
| Gas | OD | 9.5 | mm | ||
| Liquid | OD | 6.4 | mm | ||
| Power input | Cooling | Nom. | 0.019 | kW | |
| Heating | Nom. | 0.018 | kW | ||
| Power supply | Frequency | 50 | Hz | ||
| Name | V1 | ||||
| Phase | 1~ | ||||
| 220-240 | V | ||||
| Refrigerant | GWP | 675 | |||
| Sound power level | Cooling | 54 | dBA | ||
| Heating | 53 | dBA | |||
| Sound pressure level | Cooling | High | 41 | dBA | |
| Low | 25 | dBA | |||
| Medium | 33 | dBA | |||
| Silent operation | 19 | dBA | |||
| Heating | High | 39 | dBA | ||
| Low | 27 | dBA | |||
| Medium | 34 | dBA | |||
| Silent operation | 20 | dBA | |||
| Weight | Unit | 11.5 | kg |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Compressor | Type | Hermetically sealed swing compressor | |||
| Dimensions | Unit | Depth | 367 | mm | |
| Height | 610 | mm | |||
| Width | 923 | mm | |||
| Fan motor | Speed | Cooling | Super low | 600 | rpm |
| Operation range | Cooling | Ambient | Min. | -10 | °CDB |
| Max. | 50 | °CDB | |||
| Heating | Ambient | Min. | -21 | °CWB | |
| Max. | 18 | °CWB | |||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 10m) | kg/m | ||
| Level difference | IU | OU | Max. | 15 | |
| Piping length | OU | IU | Max. | 20 | |
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 220-240 | |||||
| Refrigerant | Charge | 0.95 | kg | ||
| 0.65 | |||||
| GWP | 675 | ||||
| Type | R-32 | ||||
| Sound pressure level | Cooling | Nom. | 46 | dBA | |
| Heating | Nom. | 47 | dBA | ||
| Weight | Unit | 36 | kg |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Cooling capacity | Max. | 3.8 | kW | ||
| Min. | 0.9 | kW | |||
| Nom. | 2.5 | kW | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Heating capacity | Max. | 5 | kW | ||
| Min. | 0.8 | kW | |||
| Nom. | 2.8 | kW | |||
| Nominal efficiency | Annual energy consumption | 240 | kWh | ||
| COP | 5 | ||||
| EER | 5.2 | ||||
| Energy labeling Directive | Cooling | A | |||
| Heating | A | ||||
| Space cooling | Annual energy consumption | 92 | kWh/a | ||
| Capacity | Pdesign | 2.5 | kW | ||
| Energy efficiency class | A+++ | ||||
| SEER | 9.47 | ||||
| Space heating (Average climate) | Annual energy consumption | 647 | kWh/a | ||
| Capacity | Pdesign | 2.4 | kW | ||
| Energy efficiency class | A+++ | ||||
| Pdh Heating capacity at -10° | 2.4 | kW | |||
| SCOP/A | 5.2 |

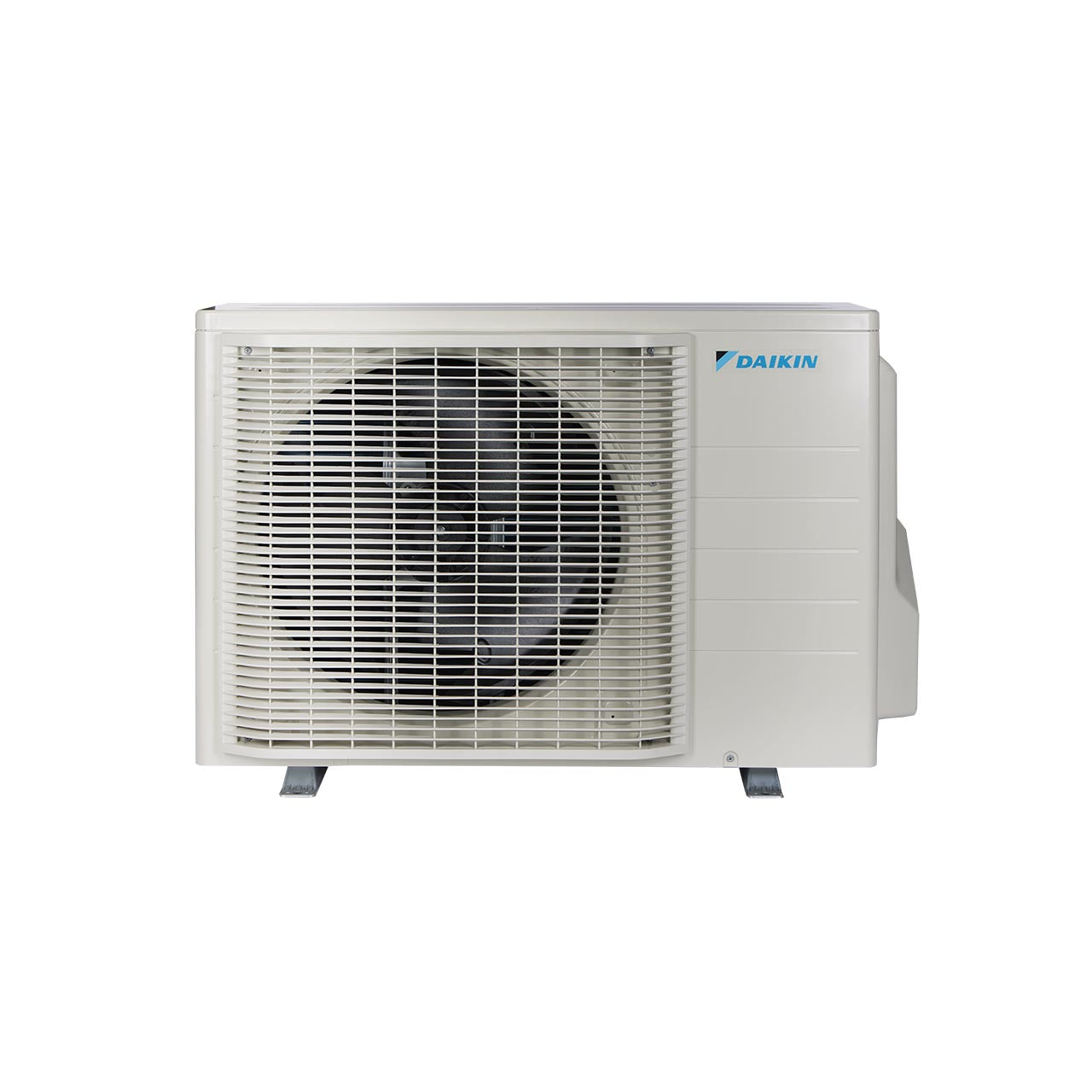

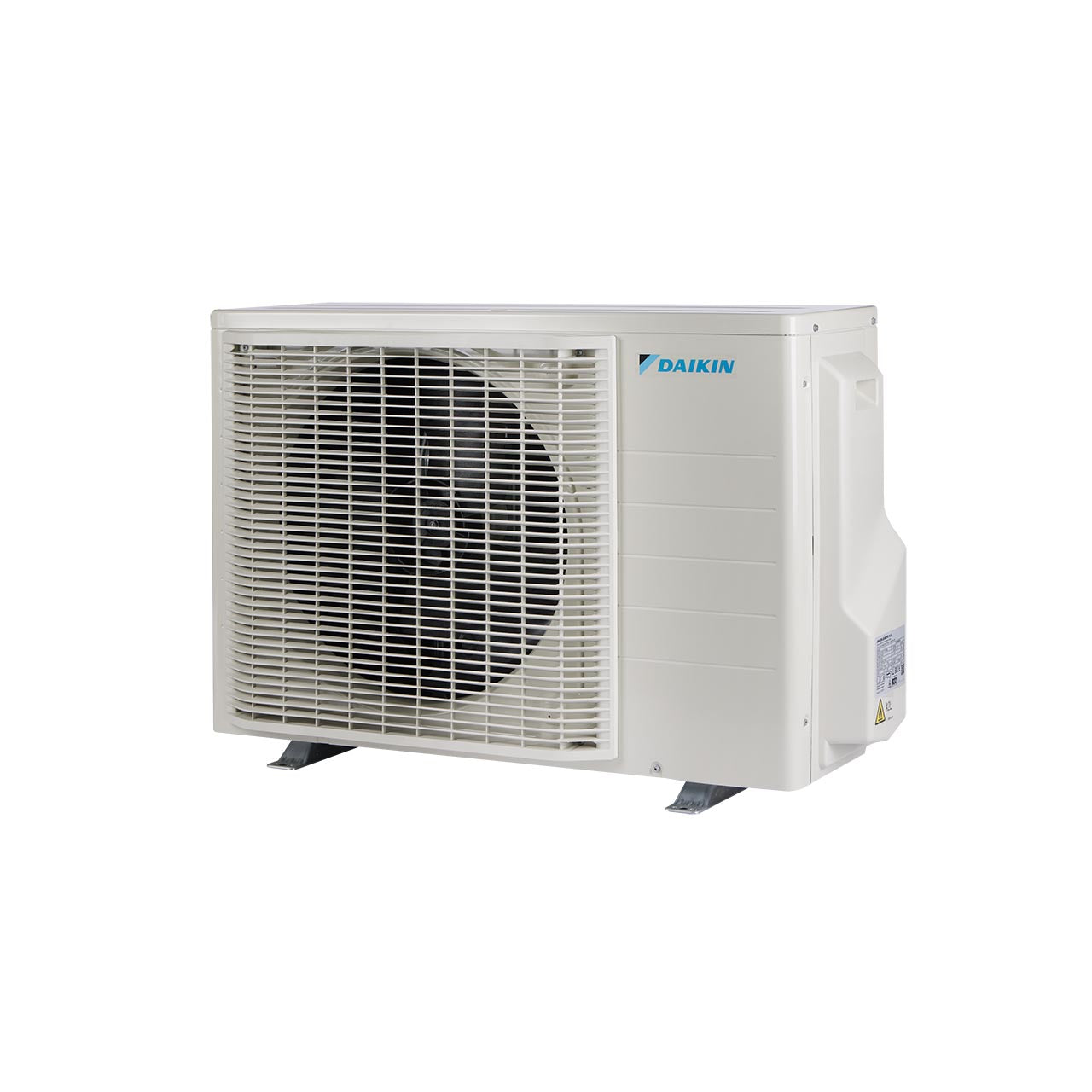

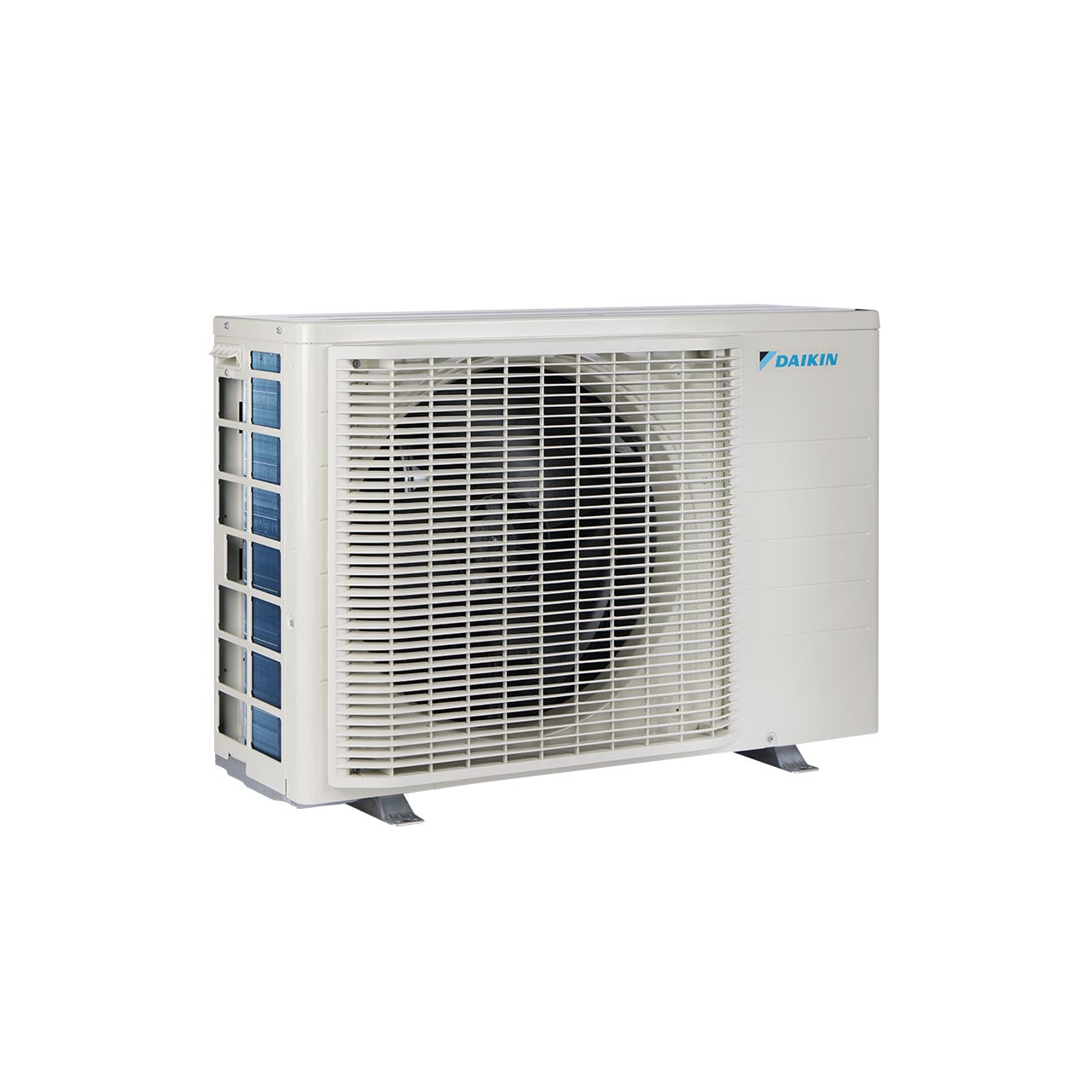

RXM25A9 - SPLIT<COMP<H/P
Searched Code: RXM25A9
Searched Code: RXM25A9
Key Features
- Pair application
- Anti-corrosion treated outdoor heat exchanger fin
- Easy-to-mount outdoor units: roof, terrace or wall
- Bluevolution range: lower environmental impact
- Outdoor units with swing compressor
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Compressor | Type | Hermetically sealed swing compressor | |||
| Dimensions | Unit | Depth | 367 | mm | |
| Height | 610 | mm | |||
| Width | 923 | mm | |||
| Fan motor | Speed | Cooling | Super low | 600 | rpm |
| Operation range | Cooling | Ambient | Min. | -10 | °CDB |
| Max. | 50 | °CDB | |||
| Heating | Ambient | Min. | -21 | °CWB | |
| Max. | 18 | °CWB | |||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 10m) | kg/m | ||
| Level difference | IU | OU | Max. | 15 | |
| Piping length | OU | IU | Max. | 20 | |
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 220-240 | |||||
| Refrigerant | Charge | 0.95 | kg | ||
| 0.65 | |||||
| GWP | 675 | ||||
| Type | R-32 | ||||
| Sound pressure level | Cooling | Nom. | 46 | dBA | |
| Heating | Nom. | 47 | dBA | ||
| Weight | Unit | 36 | kg |
