  • SKU: FTXM71A + RXM71A

SB.FTXM71A/RXM-A/1 - Standard Inverter - 7.1kW - 1ph - Max. 30m + RXM71A - SPLIT<COMP<H/P

£2,062.00

Shipping calculated at checkout.

Price excludes VAT. VAT will be added at checkout.

Free Shipping on Orders Over £500

Easy 30-day Returns

Manufacturer’s Warranty

Select The Options Above

Product Code: FTXM71A + RXM71A

SB.FTXM71A/RXM-A/1 - Standard Inverter - 7.1kW - 1ph - Max. 30m
Searched Code: FTXM71A

Product Details

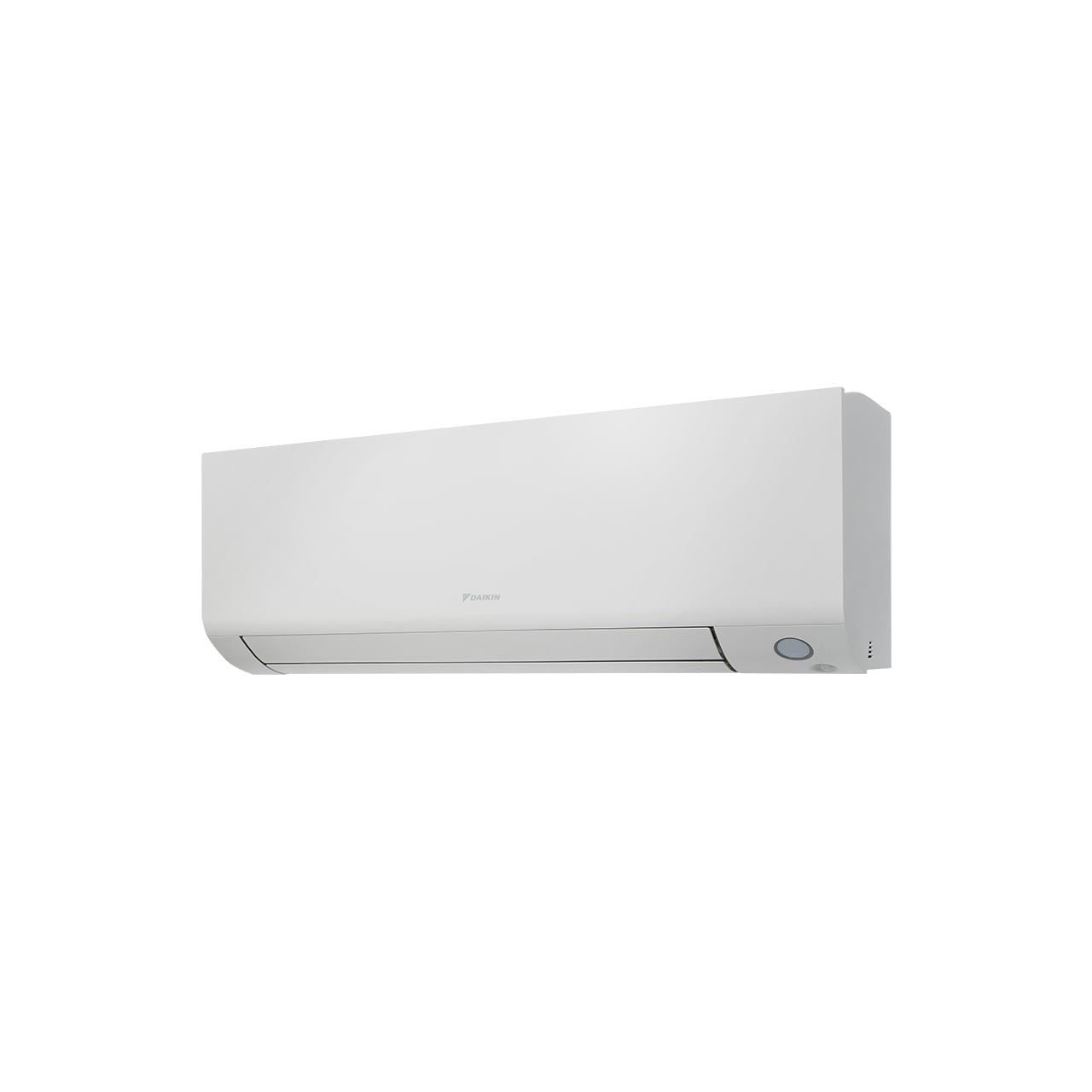

Wall mounted unit

Attractive, wall mounted design with perfect indoor air quality

Energy Labels

Technical Specifications

Category Sub Category Parameter Condition Value Unit
Casing Colour White
Control systems Infrared remote control ARC466A86
Wired remote control BRC073A1
Dimensions Unit Depth 292 mm
Height 298 mm
Width 997 mm
Fan Air flow rate Cooling High 15.8 m³/min
Medium 13.6 m³/min
Low 11.4 m³/min
Silent operation 9.3 m³/min
Heating High 17.3 m³/min
Medium 15.3 m³/min
Low 12.3 m³/min
Silent operation 11.2 m³/min
Piping connections Drain 16
Gas OD 15.9 mm
Liquid OD 6.4 mm
Power input Cooling Nom. 0.037 kW
Heating Nom. 0.041 kW
Power supply Frequency 50 Hz
Name V1
Phase 1~
220-240 V
Refrigerant GWP 675
Sound power level Cooling 60 dBA
Heating 61 dBA
Sound pressure level Cooling High 47 dBA
Low 38 dBA
Medium 43 dBA
Silent operation 32 dBA
Heating High 46 dBA
Low 37 dBA
Medium 42 dBA
Silent operation 34 dBA
Weight Unit 14.5 kg
Category Sub Category Parameter Condition Value Unit
Compressor Type Hermetically sealed swing compressor
Dimensions Unit Depth 401 mm
Height 734 mm
Width 954 mm
Energy Efficiency Range A+++ ~ D
Operation range Cooling Ambient Min. -10 °CDB
Max. 46 °CDB
Heating Ambient Min. -15 °CWB
Max. 18 °CWB
Piping connections Additional refrigerant charge 0.02 (for piping length exceeding 10m) kg/m
Level difference IU OU Max. 20
Piping length OU IU Max. 30
Power supply Frequency 50 Hz
Phase 1~
220-240
Refrigerant Charge 1.15 kg
0.78
GWP 675
Type R-32
Sound pressure level Cooling Nom. 47 dBA
Heating Nom. 48 dBA
Weight Unit 55 kg
Category Sub Category Parameter Condition Value Unit
Cooling capacity Max. 8.5 kW
Min. 2.3 kW
Nom. 7.1 kW
Heating capacity Max. 10.2 kW
Min. 2.3 kW
Nom. 8.2 kW
Nominal efficiency Annual energy consumption 1172 kWh
COP 3.19
EER 3.03
Energy labeling Directive Cooling B
Heating D
Space cooling Annual energy consumption 401 kWh/a
Capacity Pdesign 7.1 kW
Energy efficiency class A++
SEER 6.2
Space heating (Average climate) Annual energy consumption 2116 kWh/a
Capacity Pdesign 6.2 kW
Energy efficiency class A+
Pdh Heating capacity at -10° 5.01 kW
SCOP/A 4.1

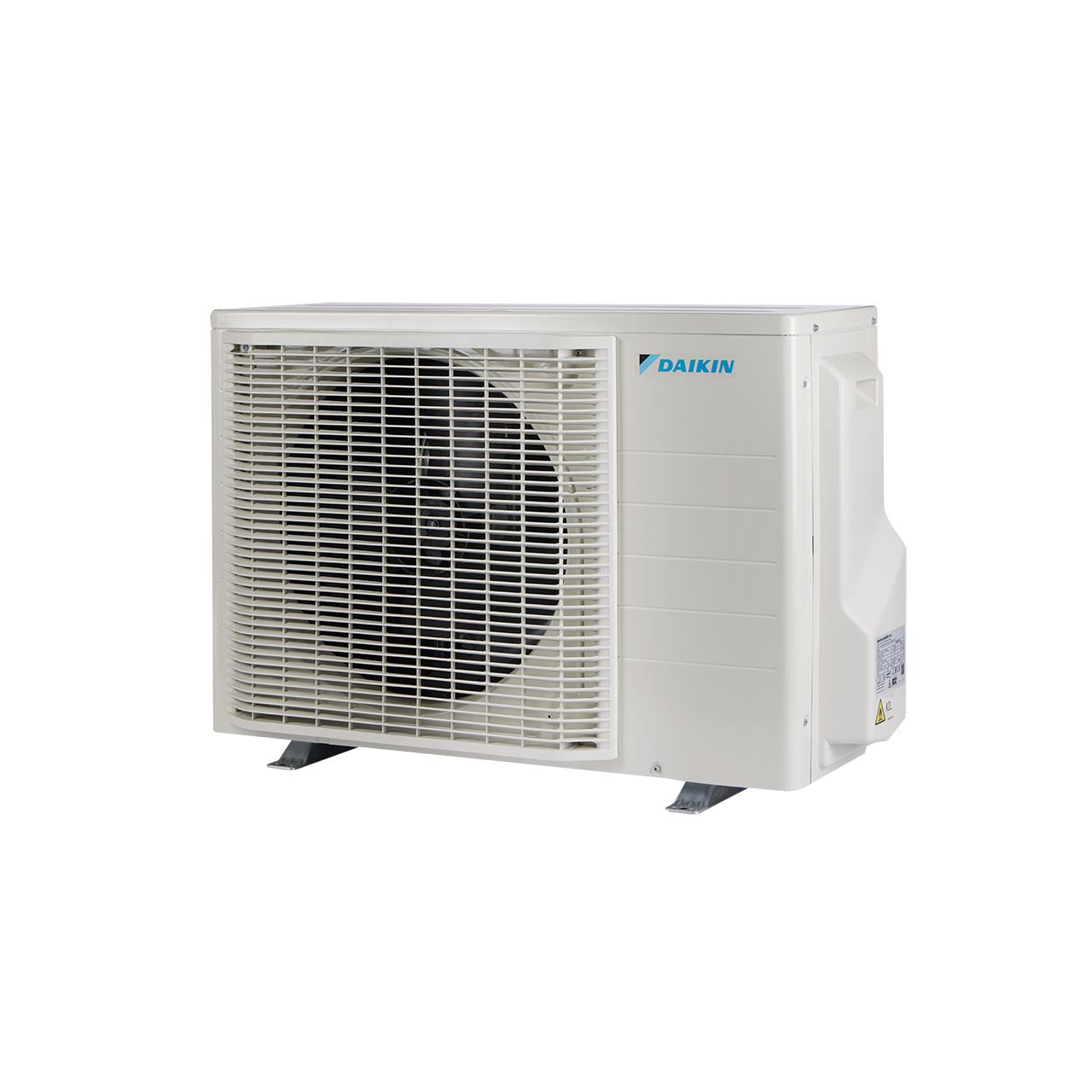

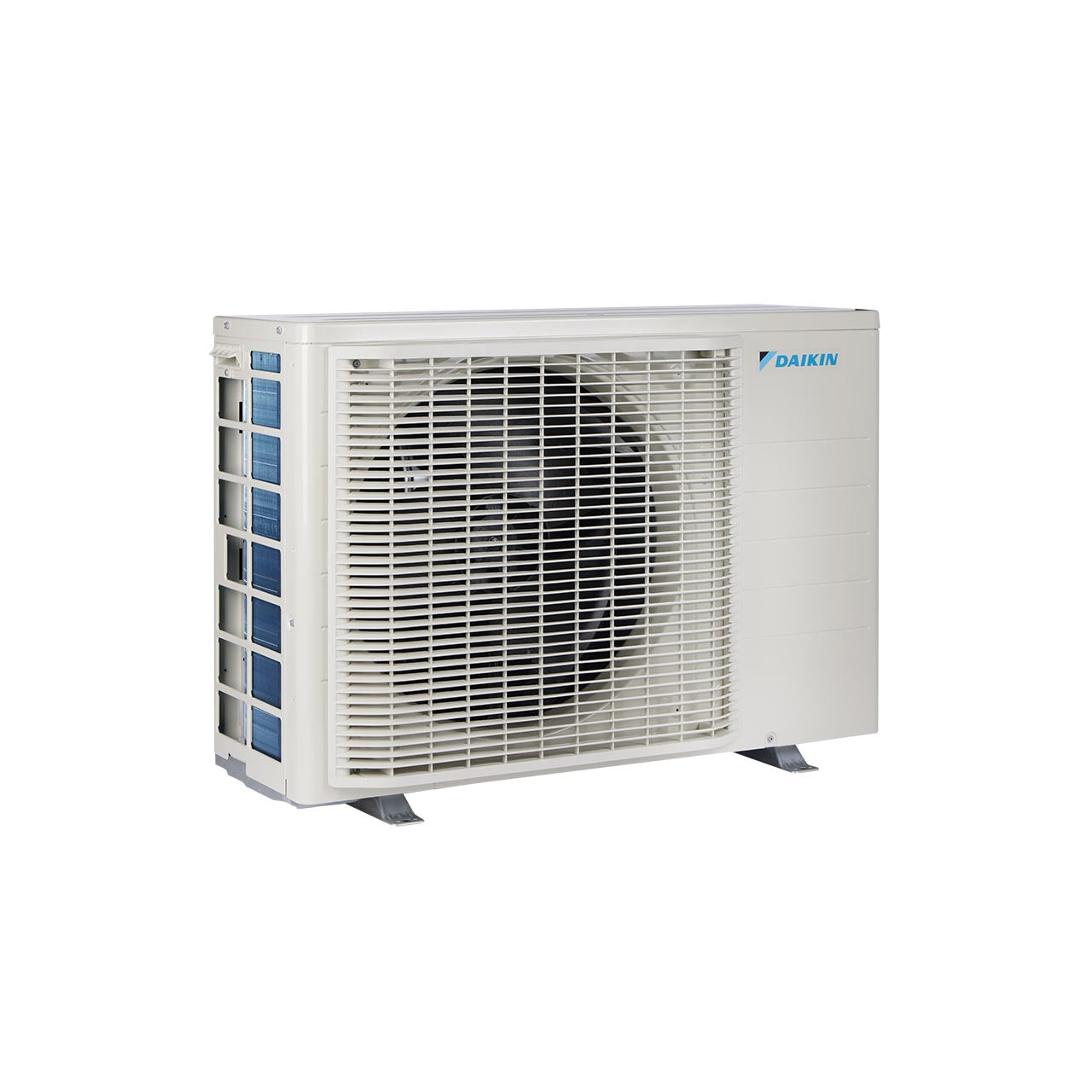

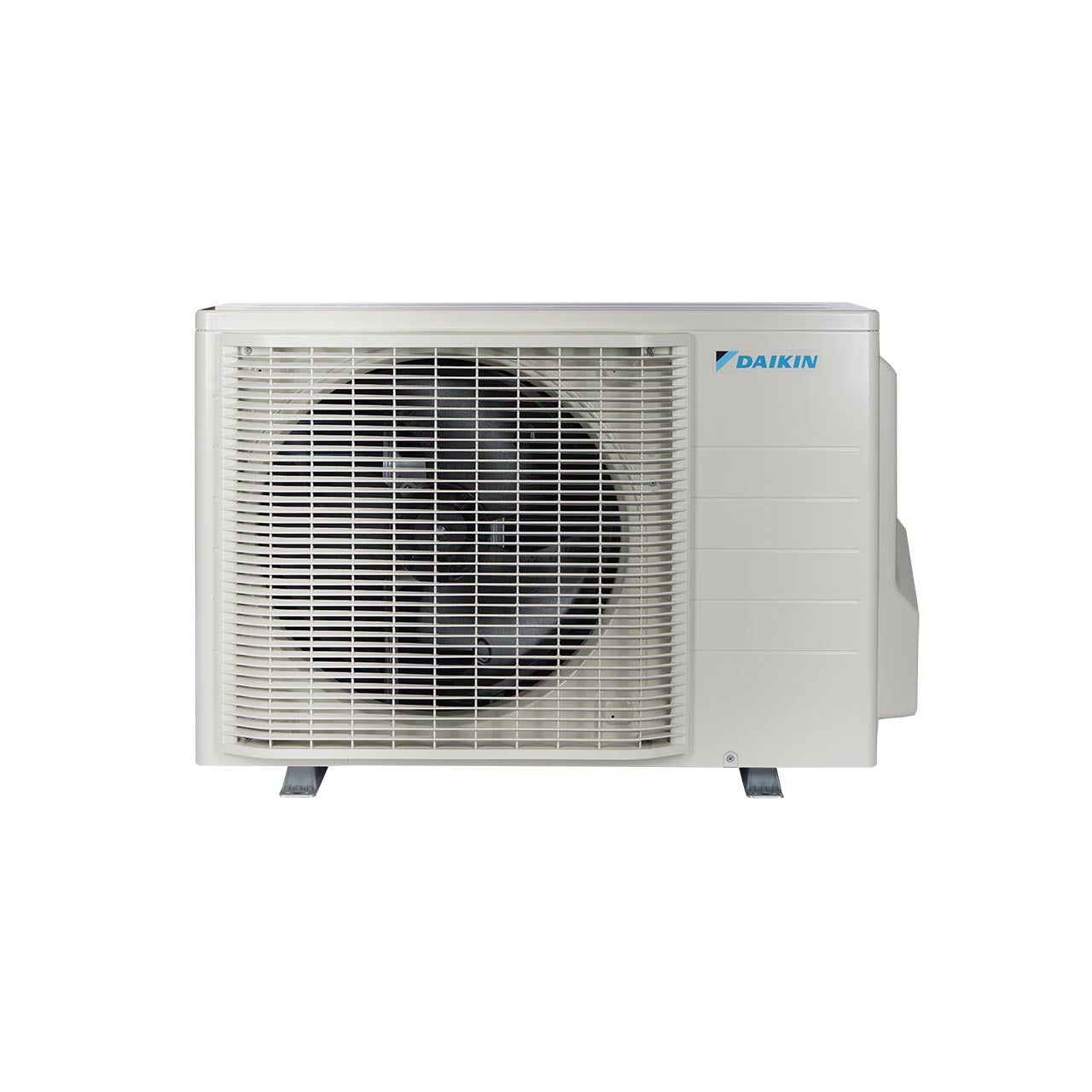

RXM71A - SPLIT<COMP<H/P
Searched Code: RXM71A

Key Features

  • Pair application
  • Bluevolution range: lower environmental impact
  • Outdoor units with swing compressor

Technical Specifications

Category Sub Category Parameter Condition Value Unit
Compressor Type Hermetically sealed swing compressor
Dimensions Unit Depth 401 mm
Height 734 mm
Width 954 mm
Energy Efficiency Range A+++ ~ D
Operation range Cooling Ambient Min. -10 °CDB
Max. 46 °CDB
Heating Ambient Min. -15 °CWB
Max. 18 °CWB
Piping connections Additional refrigerant charge 0.02 (for piping length exceeding 10m) kg/m
Level difference IU OU Max. 20
Piping length OU IU Max. 30
Power supply Frequency 50 Hz
Phase 1~
220-240
Refrigerant Charge 1.15 kg
0.78
GWP 675
Type R-32
Sound pressure level Cooling Nom. 47 dBA
Heating Nom. 48 dBA
Weight Unit 55 kg
