- SKU: FTXA35CS + RXA35A8
SB.FTXA35CS/RXA8/1 - Stylish Silver - 3.5kW - 1ph - Max. 20m + RXA35A8 - SPLIT<COMP<H/P
£1,561.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: FTXA35CS + RXA35A8
SB.FTXA35CS/RXA8/1 - Stylish Silver - 3.5kW - 1ph - Max. 20m
Searched Code: FTXA35CS
Searched Code: FTXA35CS
Product Details

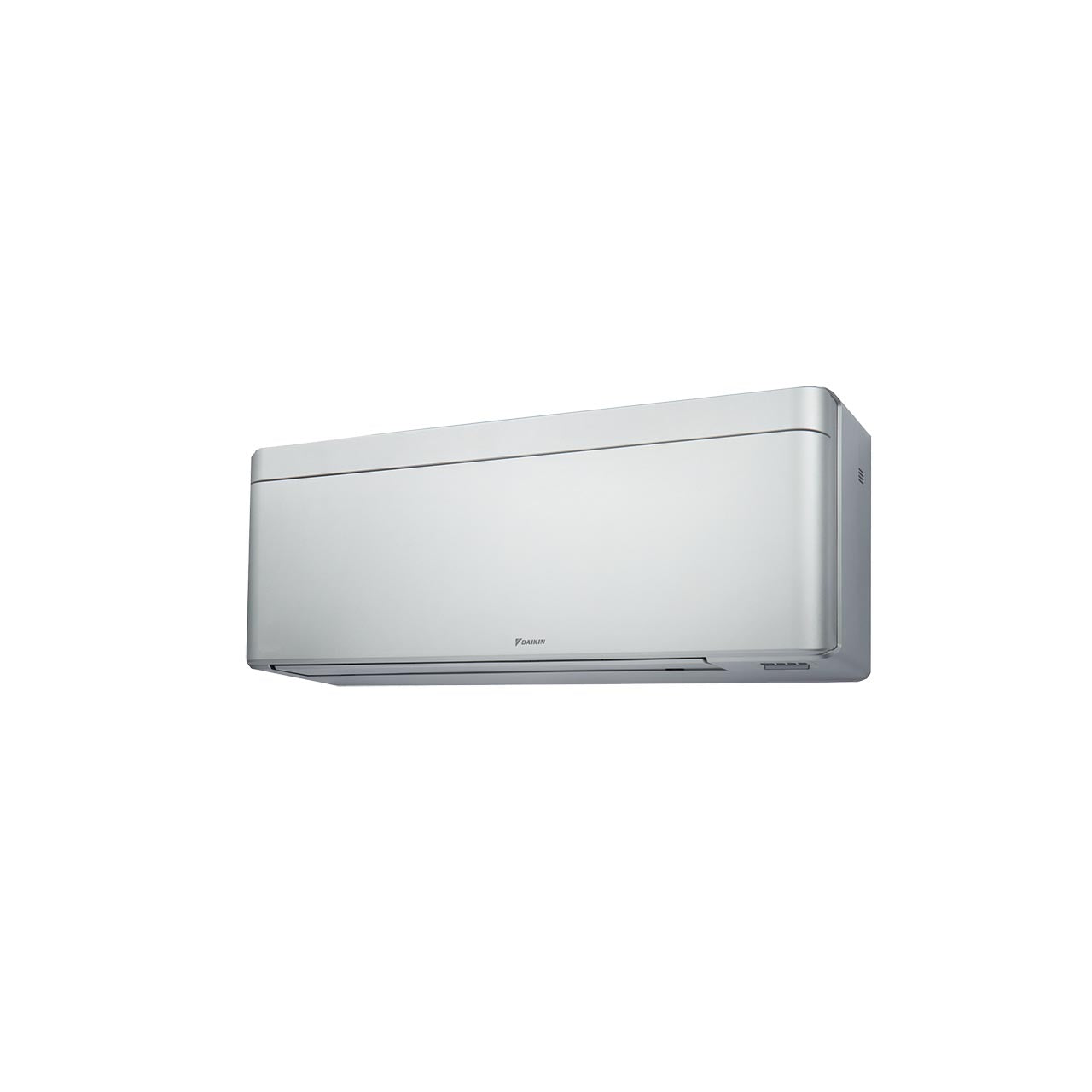

Wall mounted unit Wall mounted unit Wall mounted unit Wall mounted unit Wall mounted unit
Where innovation meets creativity Where innovation meets creativity Where innovation meets creativity Where innovation meets creativity Where innovation meets creativity
Energy Labels
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Colour | Silver | |||
| Control systems | Infrared remote control | ARC466A85 | |||
| Wired remote control | BRC073A1 | ||||
| Dimensions | Unit | Depth | 189 | mm | |
| Height | 295 | mm | |||
| Width | 798 | mm | |||
| Fan | Air flow rate | Cooling | High | 11.9 | m³/min |
| Medium | 8.6 | m³/min | |||
| Low | 6.1 | m³/min | |||
| Silent operation | 4.6 | m³/min | |||
| Heating | High | 11.5 | m³/min | ||
| Medium | 9 | m³/min | |||
| Low | 6.4 | m³/min | |||
| Silent operation | 4.5 | m³/min | |||
| Piping connections | Drain | 18 | |||
| Gas | OD | 9.5 | mm | ||
| Liquid | OD | 6.35 | mm | ||
| Power input | Cooling | Nom. | 0.023 | kW | |
| Heating | Nom. | 0.22 | kW | ||
| Power supply | Frequency | 50 | Hz | ||
| Name | V1 | ||||
| Phase | 1~ | ||||
| 220-240 | V | ||||
| Refrigerant | GWP | 675 | |||
| Sound power level | Cooling | 60 | dBA | ||
| Sound pressure level | Cooling | High | 41 | dBA | |
| Low | 25 | dBA | |||
| Medium | 33 | dBA | |||
| Silent operation | 19 | dBA | |||
| Heating | High | 41 | dBA | ||
| Low | 25 | dBA | |||
| Medium | 33 | dBA | |||
| Silent operation | 19 | dBA | |||
| Weight | Unit | 11.5 | kg |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Compressor | Type | Hermetically sealed swing compressor | |||
| Dimensions | Unit | Depth | 350 | mm | |
| Height | 550 | mm | |||
| Width | 840 | mm | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB |
| Max. | 46 | °CDB | |||
| Heating | Ambient | Min. | -15 | °CWB | |
| Max. | 18 | °CWB | |||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 10m) | kg/m | ||
| Level difference | IU | OU | Max. | 15.0 | |
| Piping length | OU | IU | Max. | 20 | |
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 220-240 | |||||
| Refrigerant | Charge | 0.76 | kg | ||
| 0.52 | |||||
| GWP | 675.0 | ||||
| Type | R-32 | ||||
| Sound pressure level | Cooling | Nom. | 49.0 | dBA | |
| Heating | Nom. | 49.0 | dBA | ||
| Weight | Unit | 32 | kg |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Cooling capacity | Max. | 4.00 | kW | ||
| Min. | 1.40 | kW | |||
| Nom. | 3.40 | kW | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Heating capacity | Max. | 5.20 | kW | ||
| Min. | 1.40 | kW | |||
| Nom. | 4.00 | kW | |||
| Nominal efficiency | Annual energy consumption | 389 | kWh | ||
| COP | 4.04 | ||||
| EER | 4.37 | ||||
| Energy labeling Directive | Cooling | A | |||
| Heating | A | ||||
| Space cooling | Annual energy consumption | 136 | kWh/a | ||
| Capacity | Pdesign | 3.40 | kW | ||
| Energy efficiency class | A+++ | ||||
| SEER | 8.73 | ||||
| Space heating (Average climate) | Annual energy consumption | 680 | kWh/a | ||
| Capacity | Pdesign | 2.50 | kW | ||
| Energy efficiency class | A+++ | ||||
| Pdh Heating capacity at -10° | 2.10 | kW | |||
| SCOP/A | 5.15 |

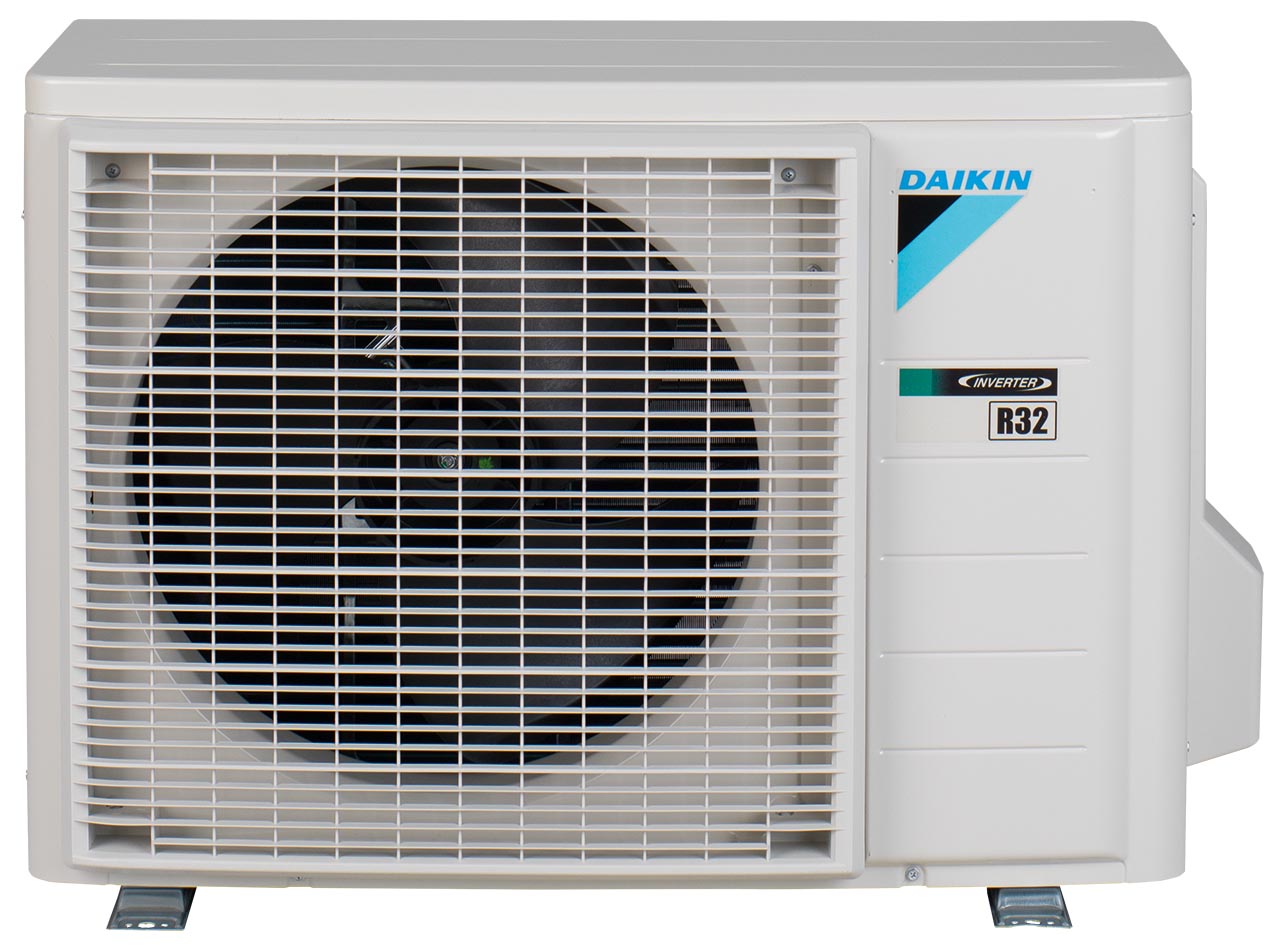

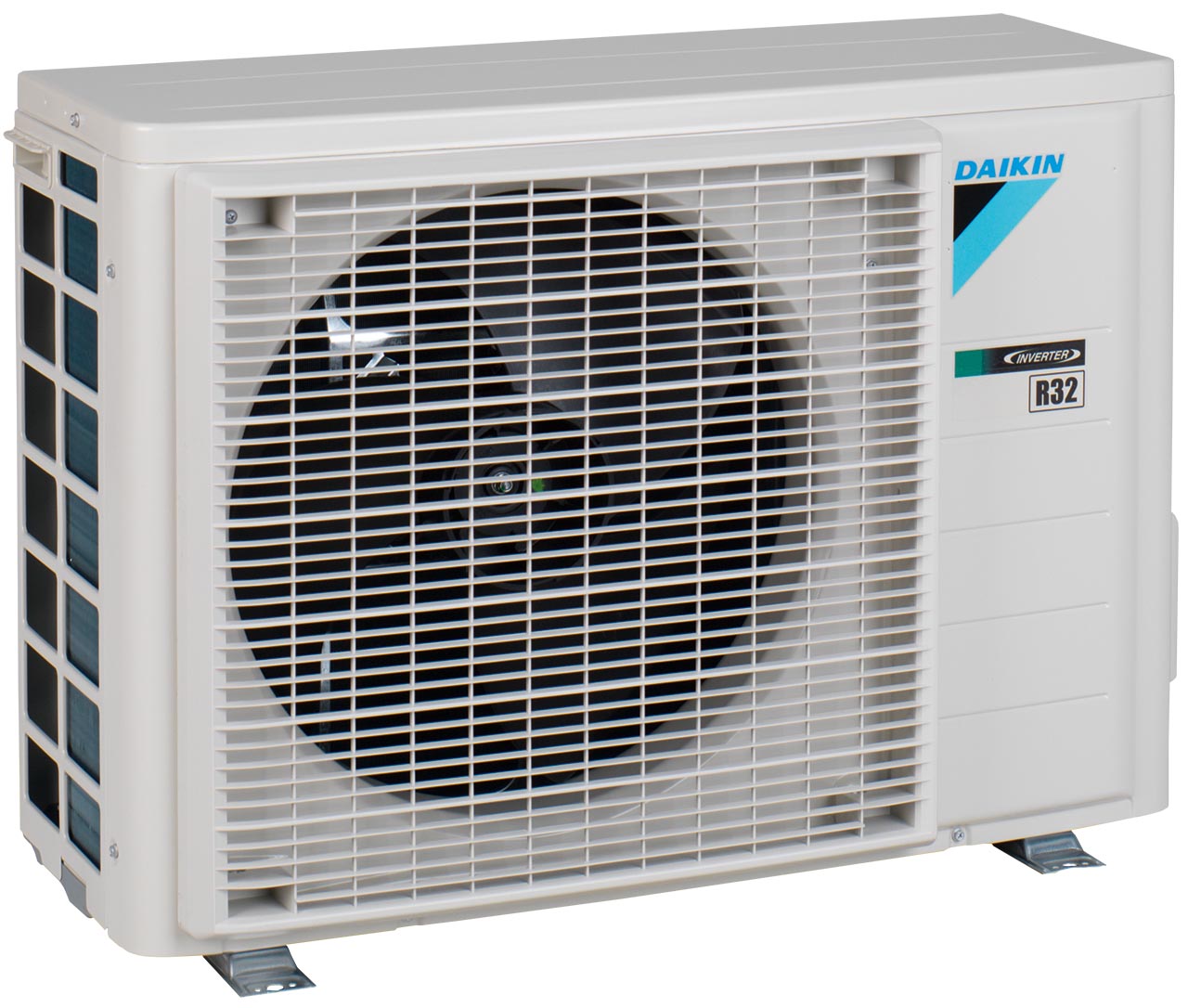

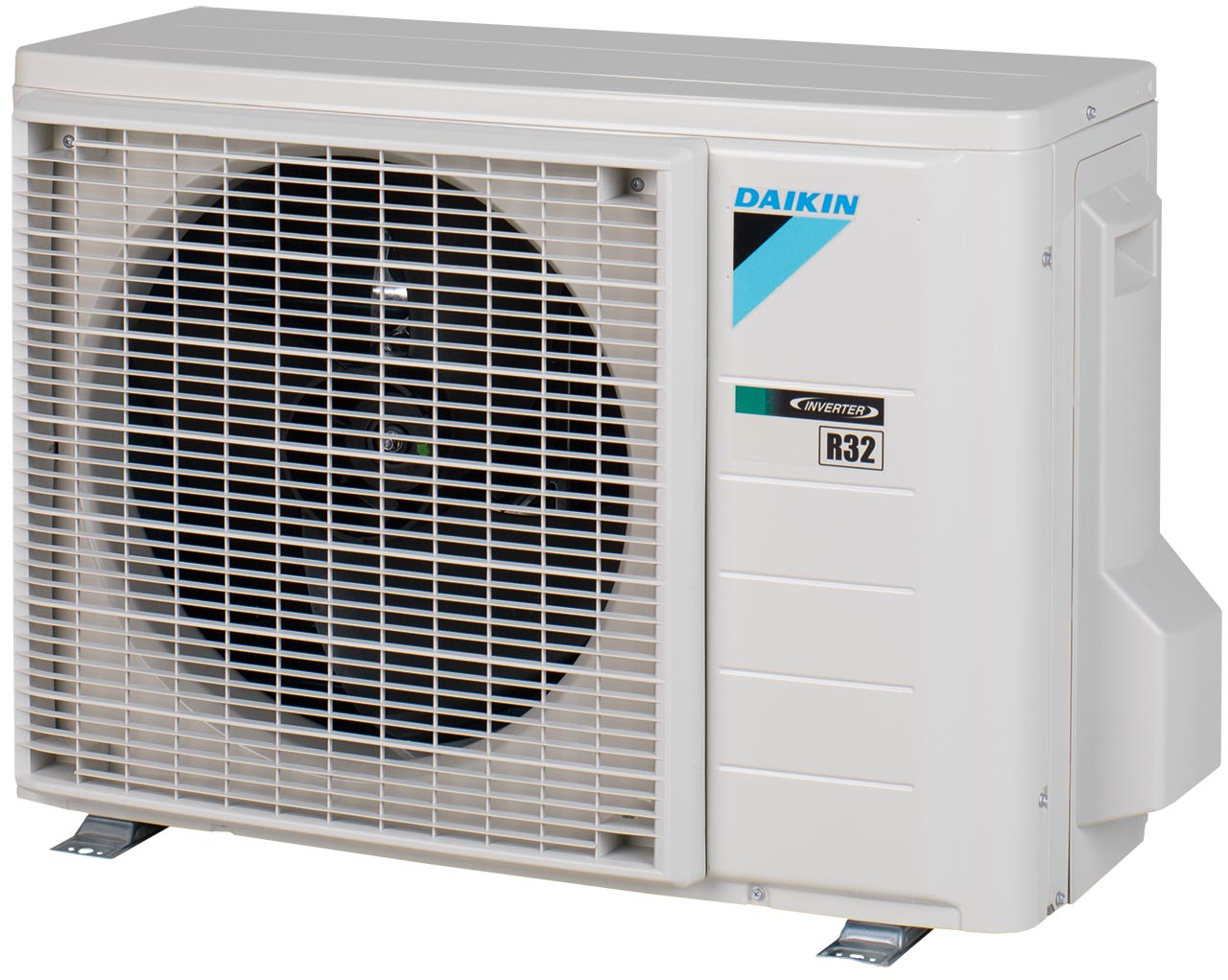

RXA35A8 - SPLIT<COMP<H/P
Searched Code: RXA35A8
Searched Code: RXA35A8
Key Features
- Pair application
- Bluevolution range: lower environmental impact
- Outdoor units with swing compressor
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Compressor | Type | Hermetically sealed swing compressor | |||
| Dimensions | Unit | Depth | 350 | mm | |
| Height | 550 | mm | |||
| Width | 840 | mm | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB |
| Max. | 46 | °CDB | |||
| Heating | Ambient | Min. | -15 | °CWB | |
| Max. | 18 | °CWB | |||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 10m) | kg/m | ||
| Level difference | IU | OU | Max. | 15.0 | |
| Piping length | OU | IU | Max. | 20 | |
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 220-240 | |||||
| Refrigerant | Charge | 0.76 | kg | ||
| 0.52 | |||||
| GWP | 675.0 | ||||
| Type | R-32 | ||||
| Sound pressure level | Cooling | Nom. | 49.0 | dBA | |
| Heating | Nom. | 49.0 | dBA | ||
| Weight | Unit | 32 | kg |
