- SKU: EBBX11D6V

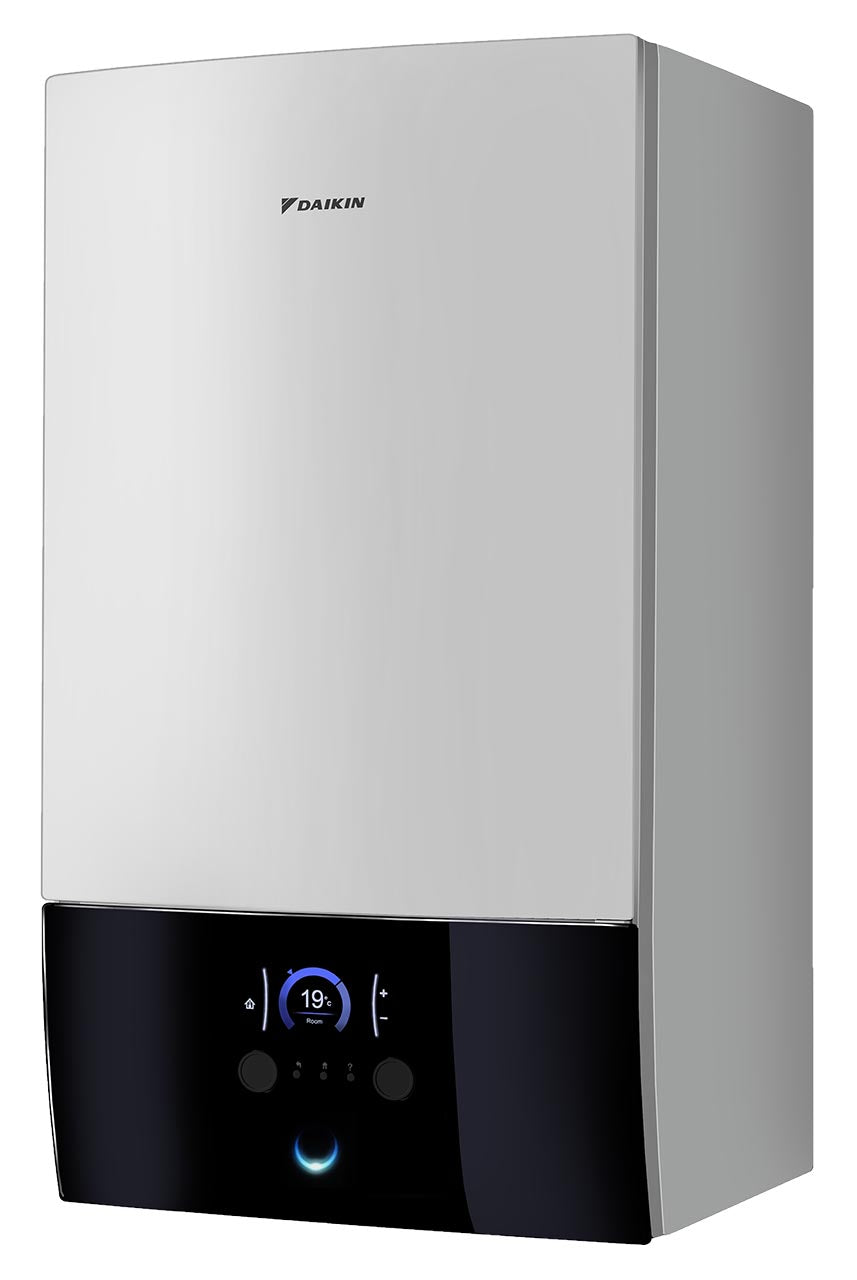

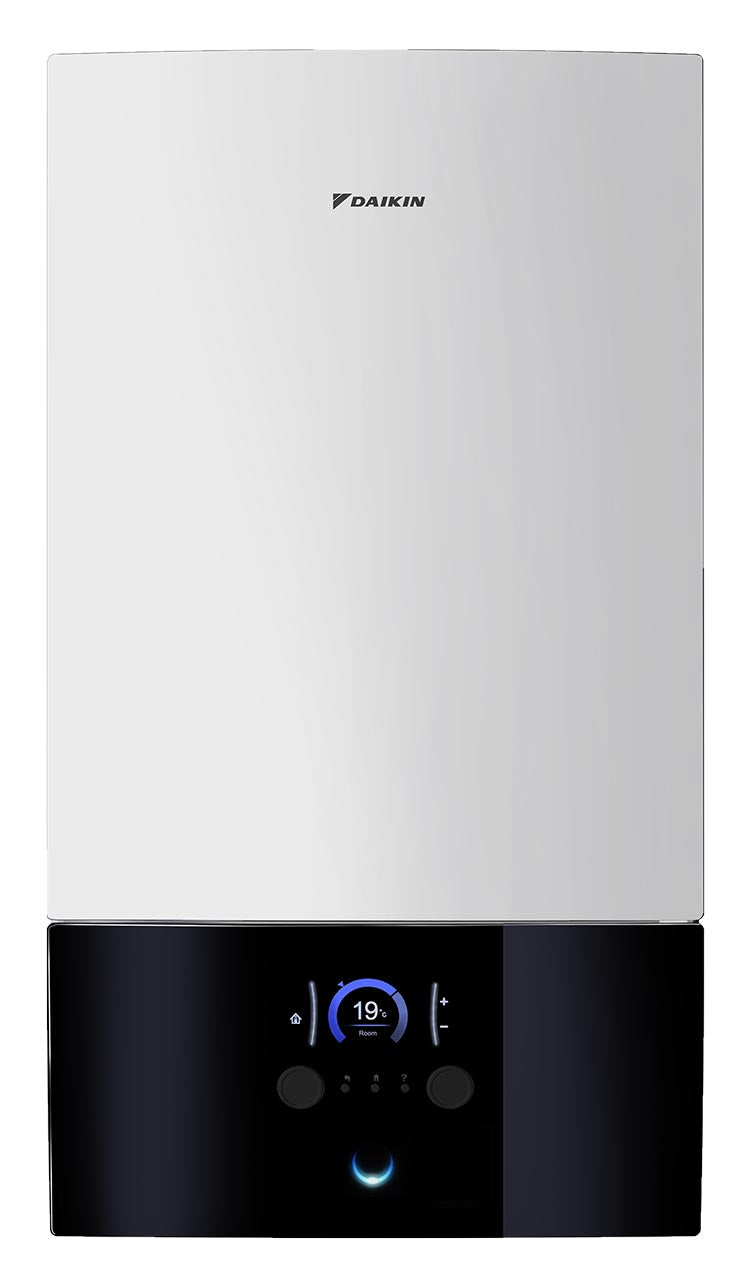

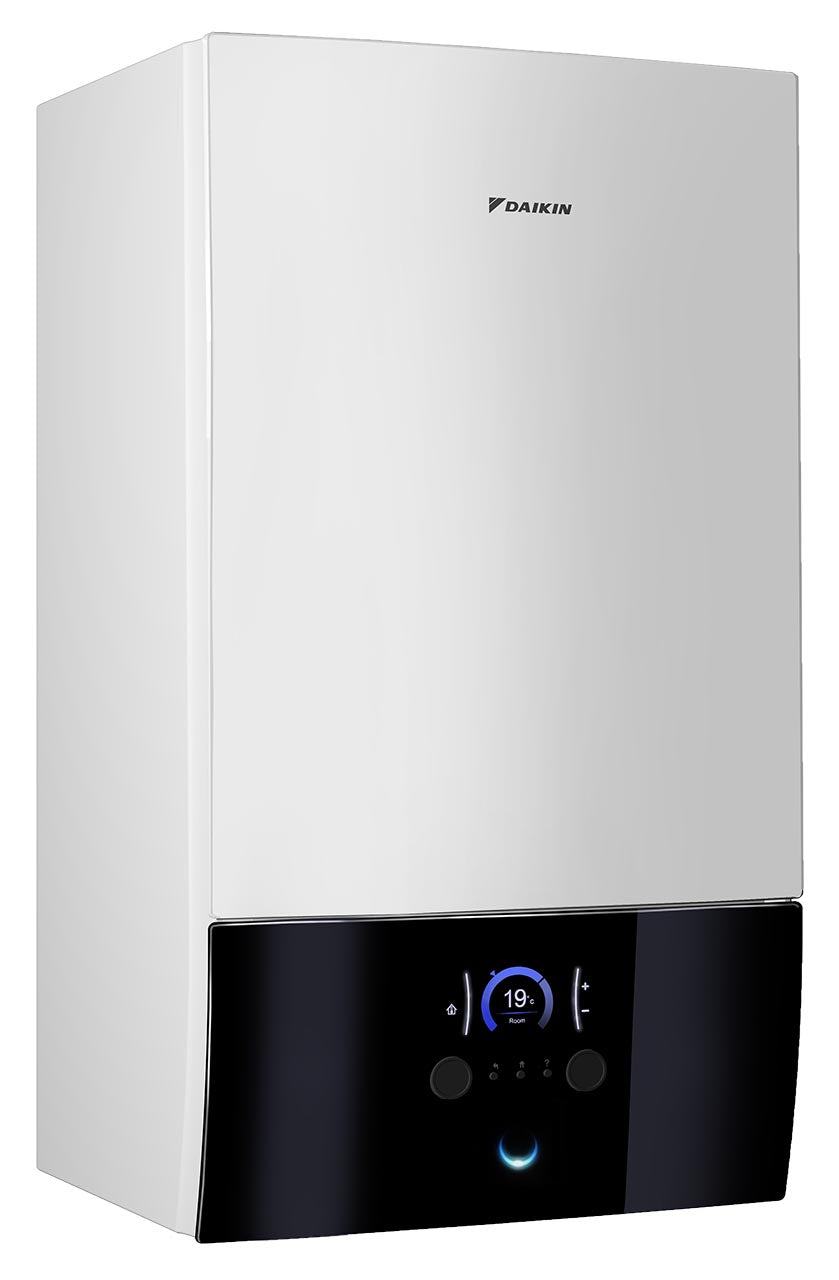

EBBX11D6V - Daikin Altherma 3 R W
£2,907.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: EBBX11D6V
Product Details
Daikin Altherma low temperature split

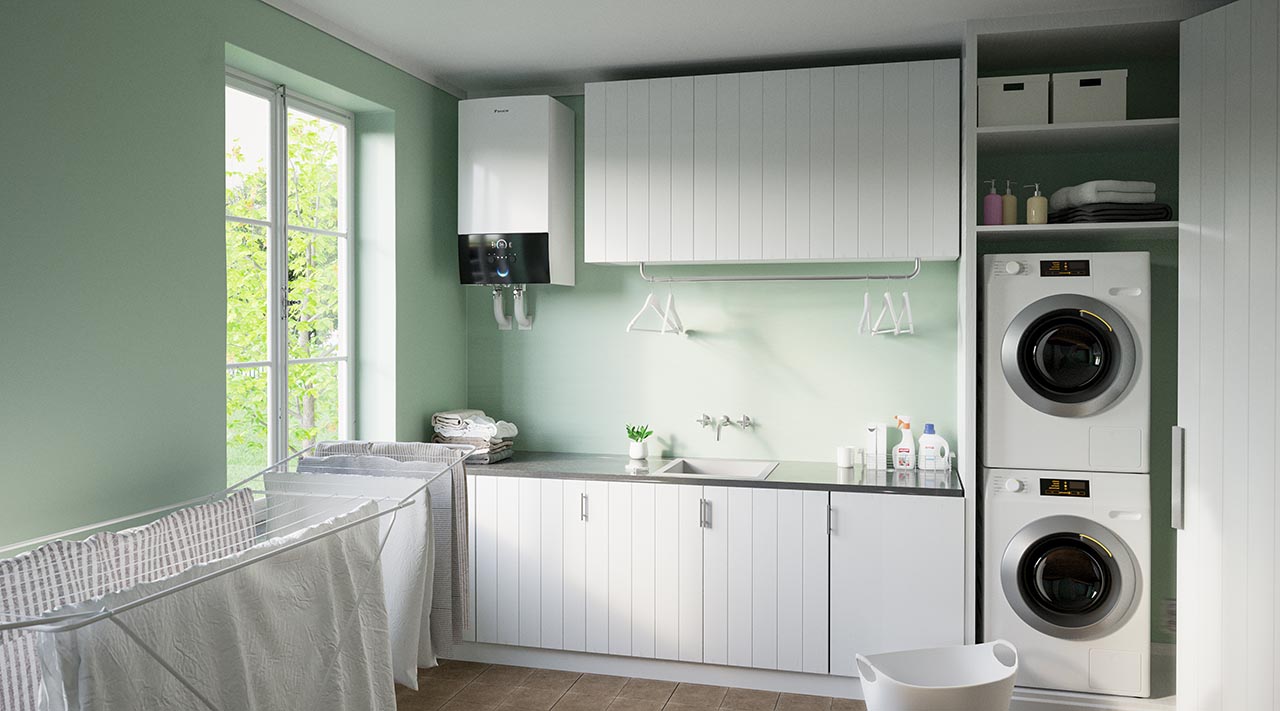

Wall mounted reversible air to water heat pump ideal for low energy houses
Key Features
- W-LAN module and cartridge compatible
- Combine with a tank or ECH2O thermal store.
- Unit design blends in with other household appliances.
- Compact dimensions for small installation space
- Easy access to PCB board and hydraulic components
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Colour | White + Black | |||
| Material | Resin, sheet metal | ||||
| Dimensions | Unit | Depth | 390 | mm | |
| Height | 840 | mm | |||
| Width | 440 | mm | |||
| Electric heater | Power supply | Frequency | 50 | Hz | |
| Name | 6V3 | ||||
| Phase | 1~ / 3~ | ||||
| 230 | V | ||||
| Recommended fuses | 20 | A | |||
| Operation range | Cooling | Ambient | Min. | 10 | °CDB |
| Water side | Min. | 5 | °C | ||
| Max. | 22 | °C | |||
| Heating | Water side | Min. | 15 | °C | |
| Max. | 60 | °C | |||
| PED | Category | Category II | |||
| Power supply | Name | See note 6 | |||
| Sound power level | Nom. | 44 | dBA | ||
| Sound pressure level | Nom. | 30 | dBA | ||
| Weight | Unit | 52.5 | kg |
