Product Code: EBLA09D3V3U
Product Details

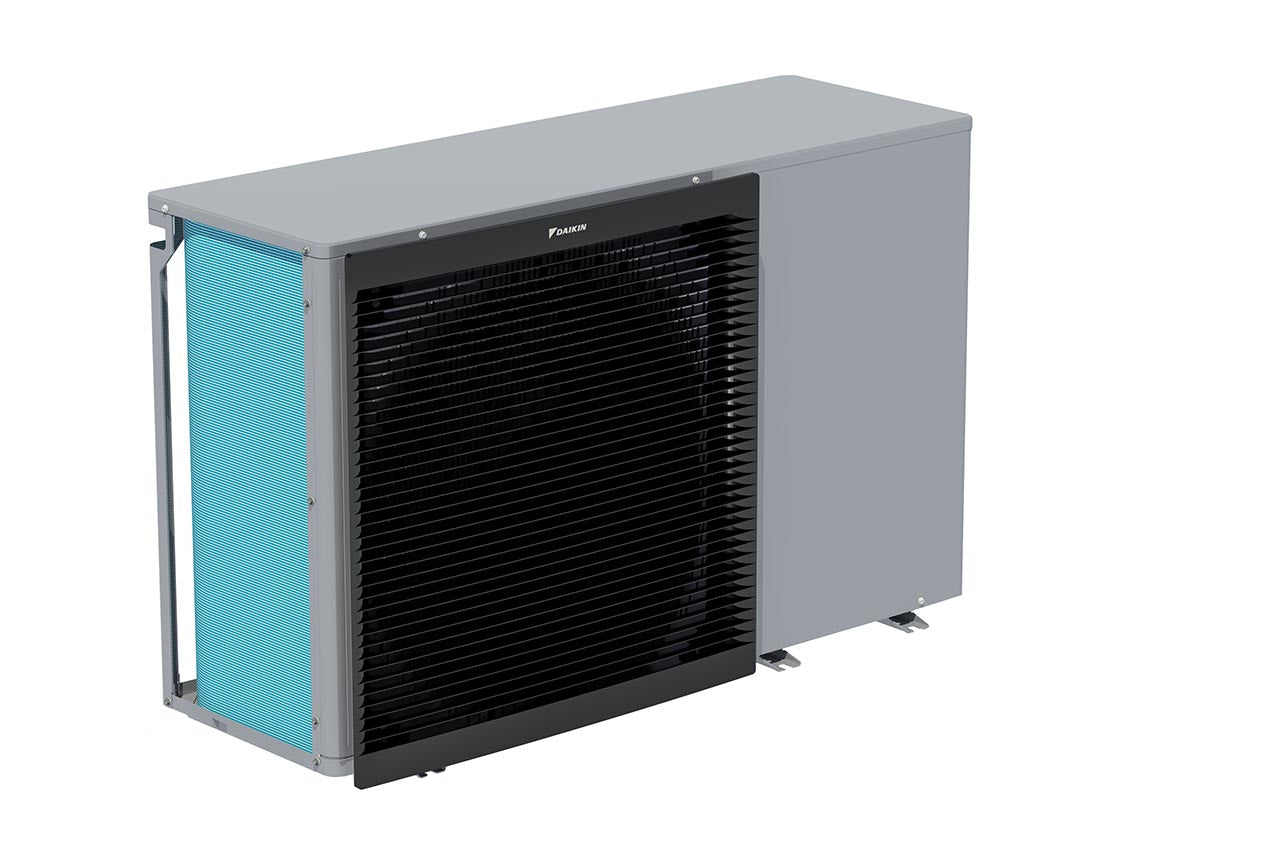

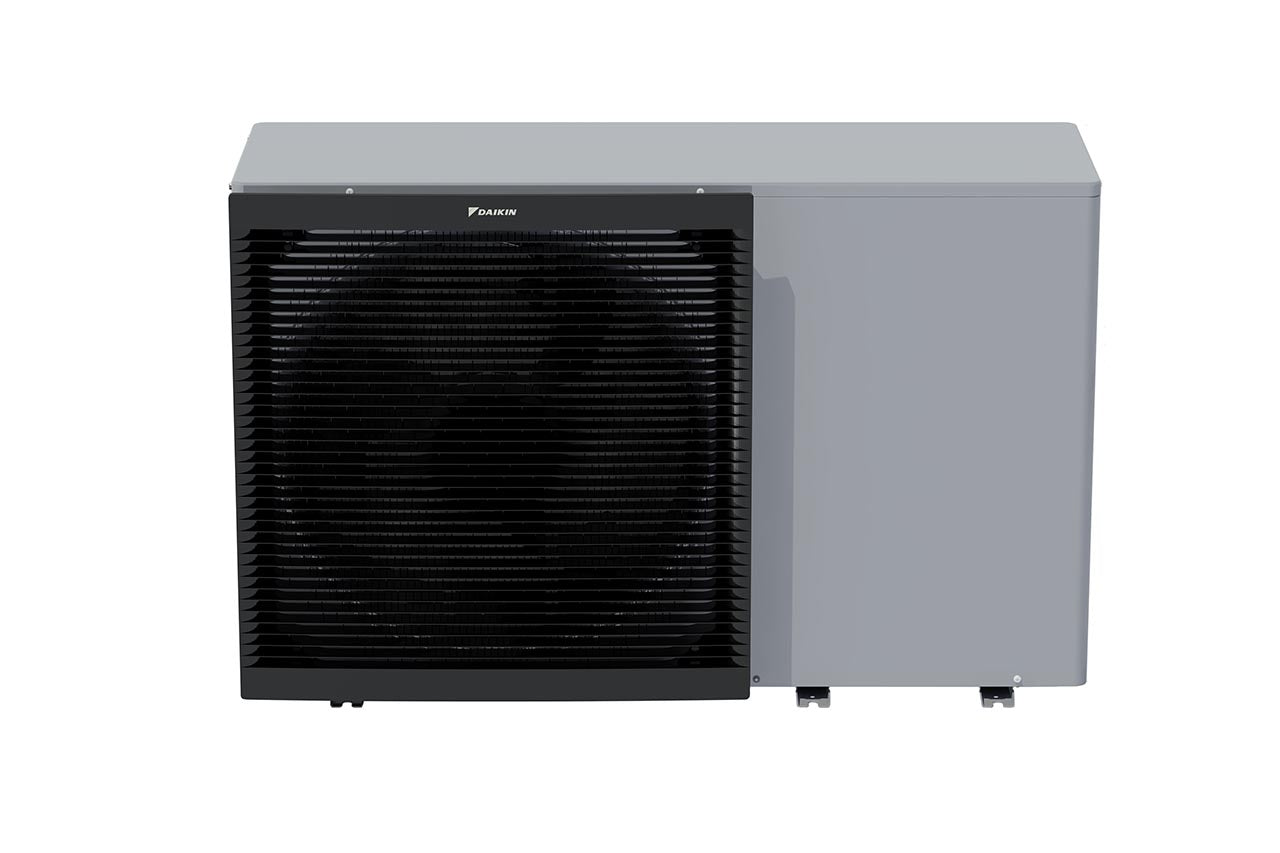

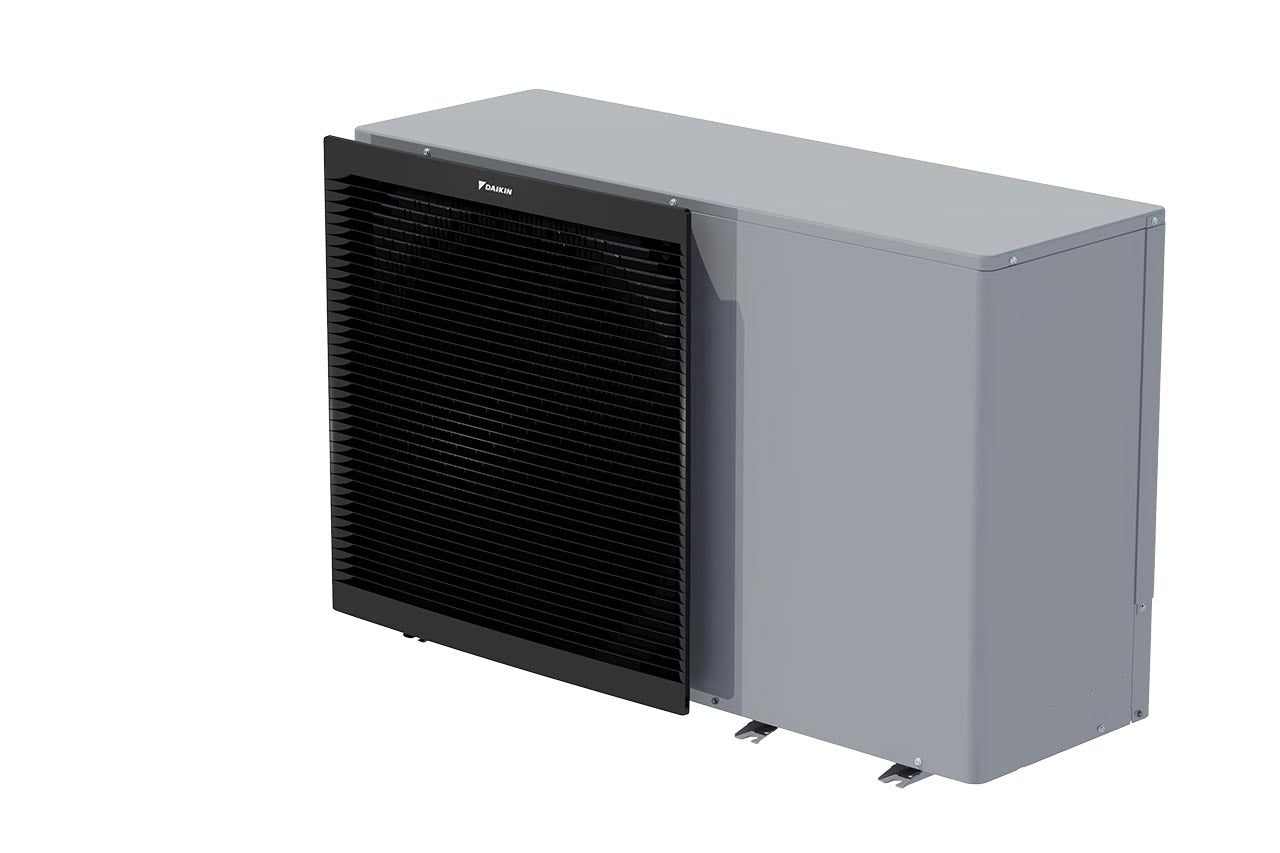

Daikin Altherma low temperature monobloc
Reversible air to water monobloc system, ideal when indoor space is limited
Key Features
- Separate back-up heater kit
- Possible to combine with domestic hot water
- Heating and cooling air to water heat pump
- W-LAN cartridge connection (optional)
- Monobloc all-in-one concept including hydraulic parts
Energy Labels
- Energy Class - Space Heating - Low Temperature
- Energy Label
- Energy Class - Space Heating - Medium Temperature
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Type | Link | ||||
| Energy Class - Space Heating - Low Temperature | |||||
| Energy Class - Space Heating - Medium Temperature |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| COP | 4.91 (1) , 3.71 (2) | ||||
| Compressor component | Main power supply | Phase | 1~ | ||
| 230 | V | ||||
| Cooling capacity | Nom. | 9.35 (3) , 9.10 (4) | kW | ||
| Dimensions | Unit | Depth | 460 | mm | |
| Height | 870 | mm | |||
| Width | 1380 | mm | |||
| EER @ | 3.35 (3) , 5.34 (4) | ||||
| Energy Efficiency Range | Space Heating A+++ ~ D, Water Heating A+ ~ F | ||||
| Fan | Air flow rate | Cooling | High | 63.1 | m³/min |
| Heating | High | 48.0 | m³/min | ||
| Heater capacity | Step 1 | 3 | kW | ||
| Heating capacity | Nom. | 9.37 (1) , 9.00 (2) | kW | ||
| Operation range | Cooling | Ambient | Min. | 10 | °CDB |
| Max. | 43 | °CDB | |||
| Water side | Min. | 5 | °C | ||
| Max. | 22 | °C | |||
| Domestic hot water | Ambient | Min. | -25 | °CDB | |
| Max. | 35 | °CDB | |||
| Water side | Min. | 25 | °C | ||
| Max. | 55 (6) | °C | |||
| Heating | Water side | Min. | 15 (6) | °C | |
| Max. | 60 (6) | °C | |||
| Power input | Cooling | Nom. | 2.79 (3) , 1.71 (4) | kW | |
| Heating | Nom. | 1.91 (1) , 2.43 (2) | kW | ||
| Power supply | Frequency | 50 | Hz | ||
| Name | V3 | ||||
| Phase | 1~ | ||||
| 230 | V | ||||
| Refrigerant | Charge | 3.80 | kg | ||
| 2.57 | tCO2Eq | ||||
| GWP | 675.0 | ||||
| Type | R-32 | ||||
| Space heating | Average climate water outlet 35°C | General | SCOP @ | 4.77 | |
| Seasonal space heating eff. class | A+++ | ||||
| Average climate water outlet 55°C | General | SCOP @ | 3.55 | ||
| Seasonal space heating eff. class | A++ | ||||
| Weight | Unit | 149 | kg |
