- SKU: EBVH16SU23D6V

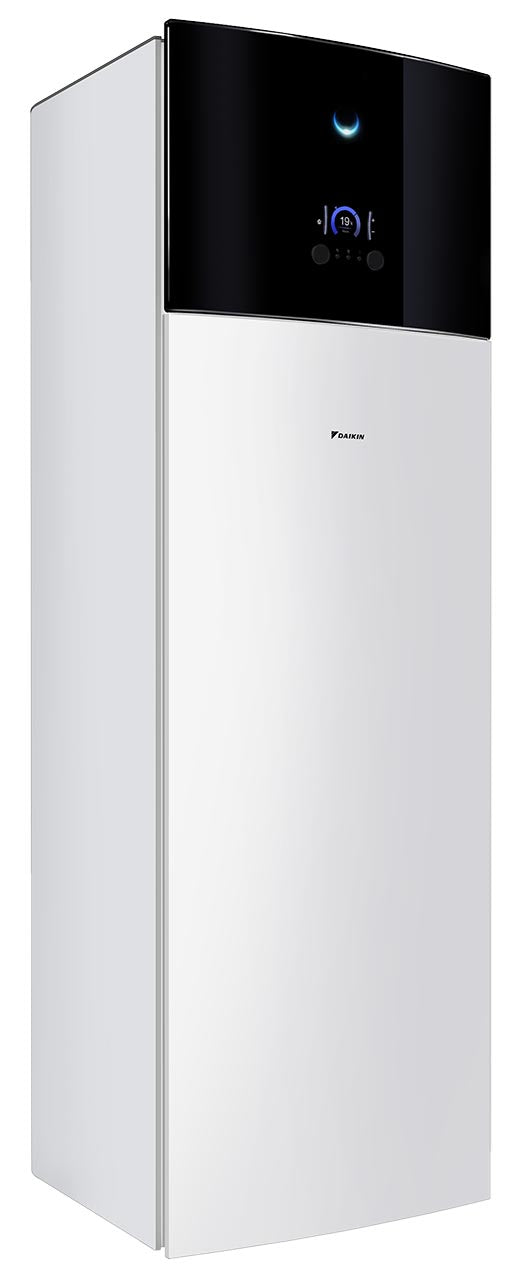

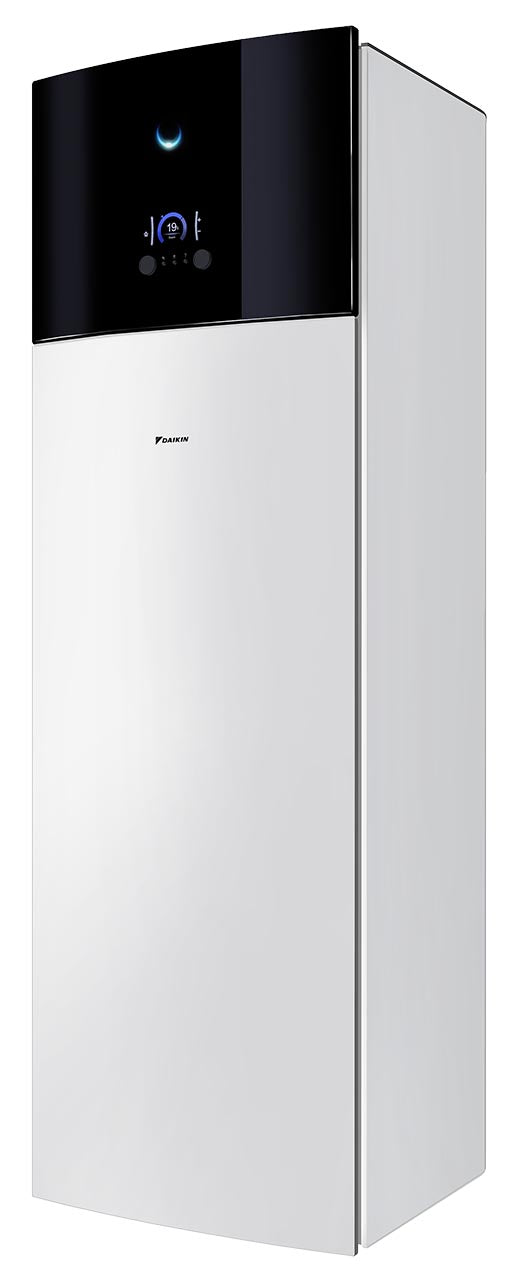

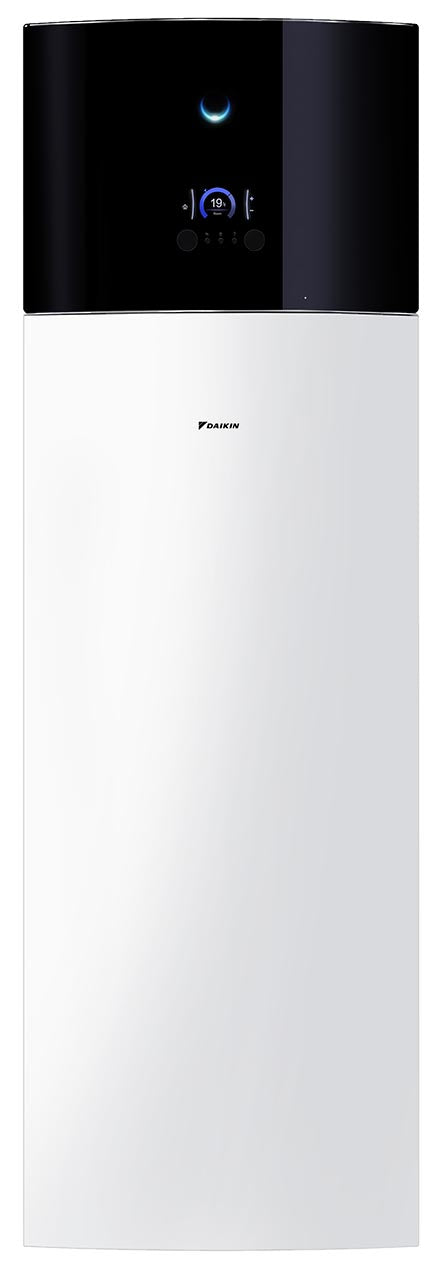

EBVH16SU23D6V - Daikin Altherma 3 R F
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Product Code: EBVH16SU23D6V
Product Details
Daikin Altherma low temperature split
Floor standing air to water heat pump for heating and hot water, ideal for low energy houses
Key Features
- Combined domestic hot water tank and heat pump
- W-LAN module and cartridge compatible
- Integrated back-up heater
- Easy access to PCB board and hydraulic components
- Small installation footprint, similar to other household appliances
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Colour | White + Black | |||
| Material | Precoated sheet metal | ||||
| Dimensions | Unit | Depth | 634 | mm | |
| Height | 1855 | mm | |||
| Width | 595 | mm | |||
| Electric heater | Power supply | Frequency | 50 | Hz | |
| Name | 6V3 | ||||
| Phase | 1~ / 3~ | ||||
| 230 | V | ||||
| Recommended fuses | 20 (7) | A | |||
| Operation range | Cooling | Ambient | Min. | 10 (5) | °CDB |
| Water side | Min. | 5 (5) | °C | ||
| Max. | 22 (5) | °C | |||
| Heating | Water side | Min. | 15 (5) | °C | |
| Max. | 60 (5) | °C | |||
| PED | Category | Category II | |||
| Power supply | Name | See note 6 | |||
| Sound power level | Nom. | 44.0 (4) | dBA | ||
| Sound pressure level | Nom. | 30.0 (4) | dBA | ||
| Weight | Unit | 133 | kg |
