- SKU: EDLA04EV3
EDLA04EV3 - Daikin Altherma 3 M
£3,476.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: EDLA04EV3
Product Details

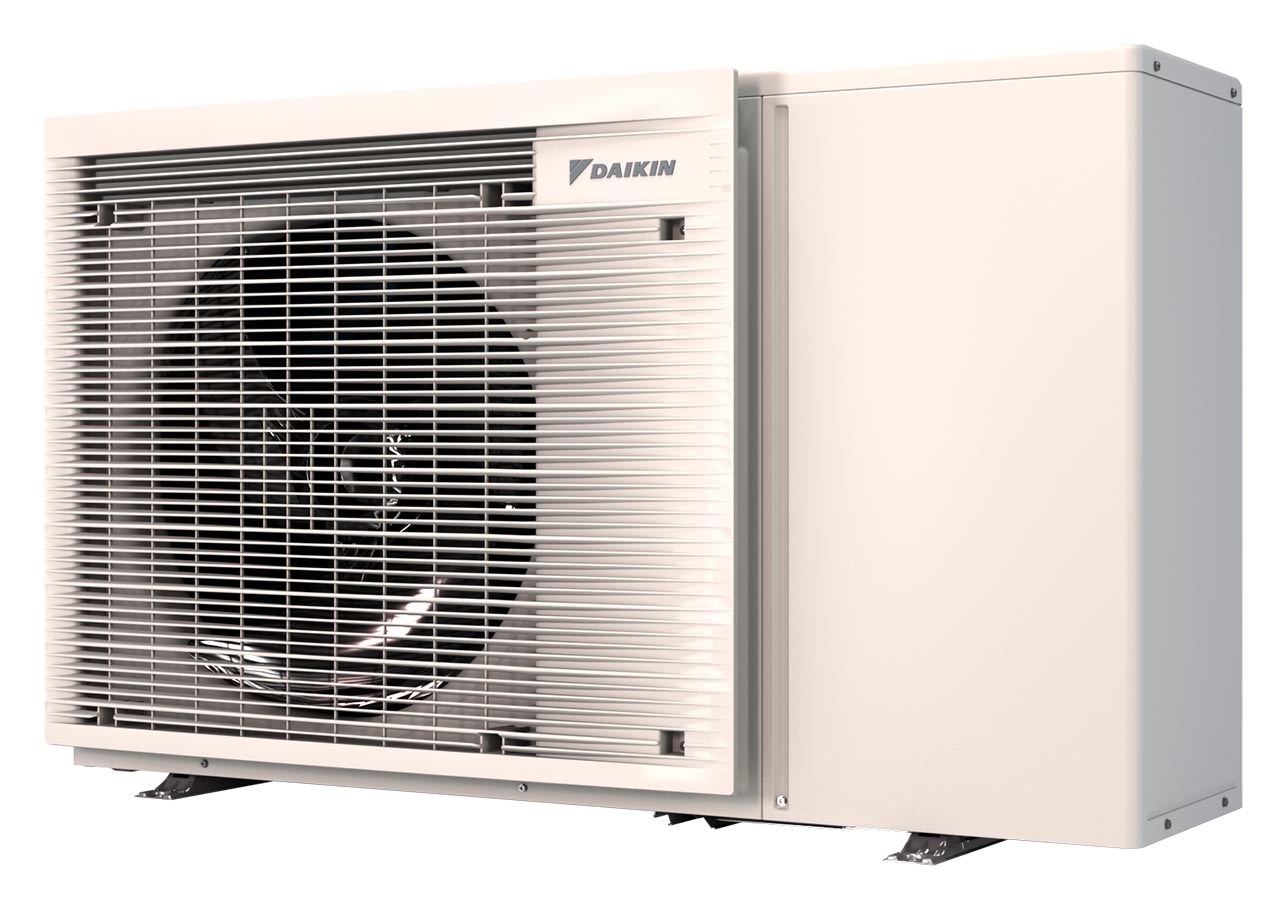

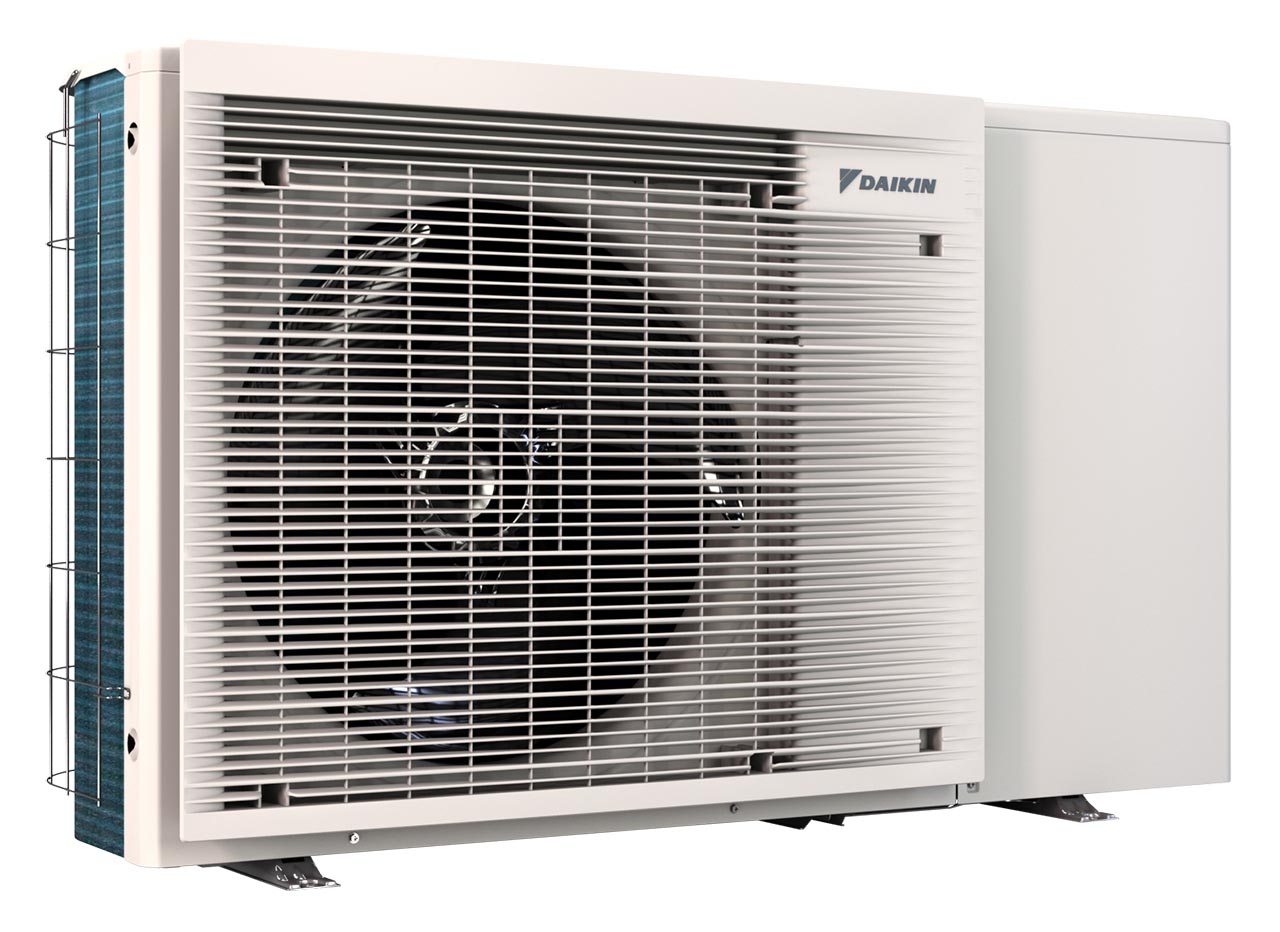

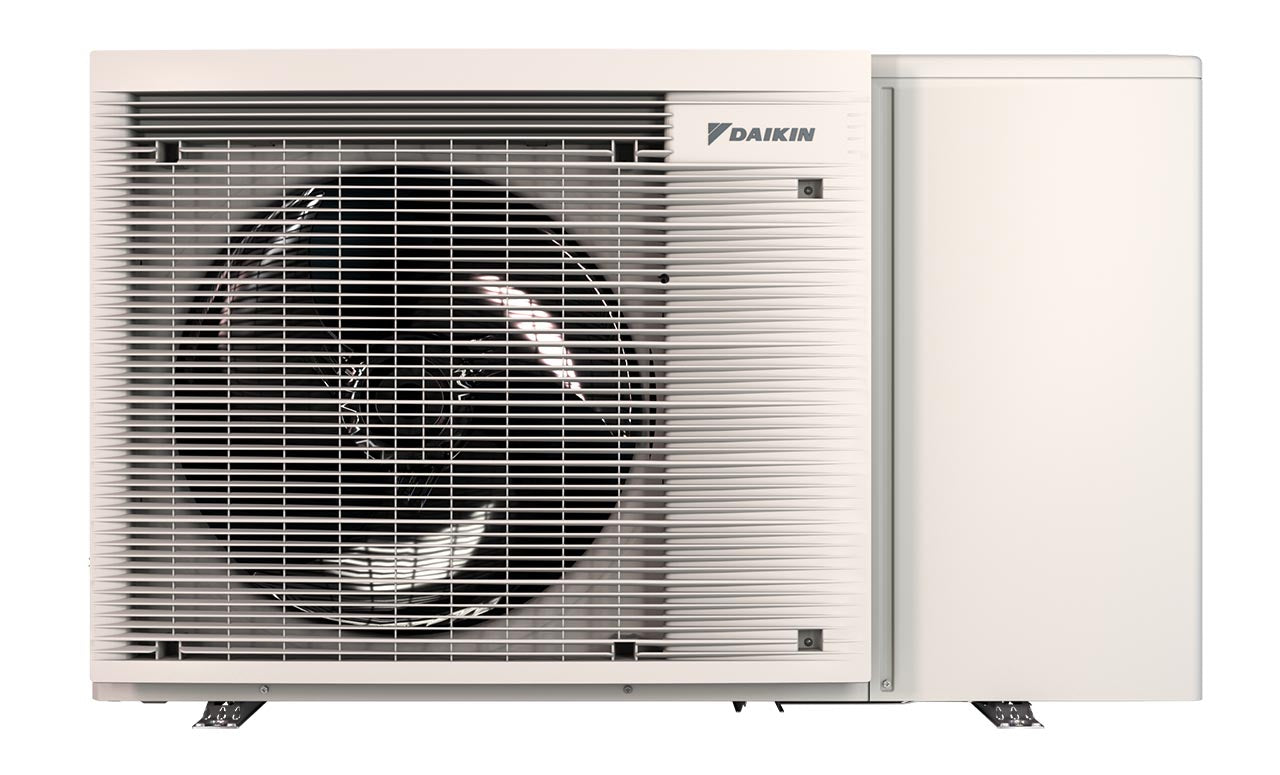

Daikin Altherma low temperature monobloc
Heating only air to water monobloc system, ideal when indoor space is limited
Key Features
- Separate back-up heater kit
- Heating only air to water heat pump
- WLAN cartridge included
- Possible to combine with domestic hot water
- Monobloc all-in-one concept including hydraulic parts
Energy Labels
- Energy Class - Space Heating - Low Temperature
- Energy Label
- Energy Class - Space Heating - Medium Temperature
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Type | Link | ||||
| Energy Class - Space Heating - Low Temperature | |||||
| Energy Class - Space Heating - Medium Temperature |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| COP | 5.10 (1) , 3.65 (2) | ||||
| Compressor component | Main power supply | Phase | 3N~ | ||
| 220 | V | ||||
| Dimensions | Unit | Depth | 362 | mm | |
| Height | 770 | mm | |||
| Width | 1250 | mm | |||
| Heating capacity | Nom. | 4.30 (1) , 4.60 (2) | kW | ||
| Operation range | Domestic hot water | Ambient | Min. | -27 | °CDB |
| Max. | 35 | °CDB | |||
| Water side | Min. | 25 | °C | ||
| Max. | 55 (3) | °C | |||
| Heating | Water side | Min. | 9 (3) | °C | |
| Max. | 65 (3) | °C | |||
| Power input | Heating | Nom. | 0.840 (1) , 1.26 (2) | kW | |
| Power supply | Frequency | 50 | Hz | ||
| Name | V3 | ||||
| Phase | 1~ | ||||
| 230 +/-10% | V | ||||
| Refrigerant | Charge | 1.35 | kg | ||
| 0.91 | tCO2Eq | ||||
| GWP | 675 | ||||
| Type | R-32 | ||||
| Sound power level | Heating | Nom. | 58.0 (1) | dBA | |
| Sound pressure level | Heating | Nom. | 44.0 (1) | dBA | |
| Space heating | Average climate water outlet 35°C | General | SCOP @ | 4.48 | |
| Seasonal space heating eff. class | A+++ | ||||
| Average climate water outlet 55°C | General | SCOP @ | 3.26 | ||
| Seasonal space heating eff. class | A++ | ||||
| Weight | Unit | 88 | kg |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Type | Link | ||||
| Energy Class - Space Heating - Low Temperature | |||||
| Energy Class - Space Heating - Medium Temperature |
