- SKU: EDLA16D3V37
EDLA16D3V37 - Daikin Altherma 3 M
£6,358.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: EDLA16D3V37
Product Details

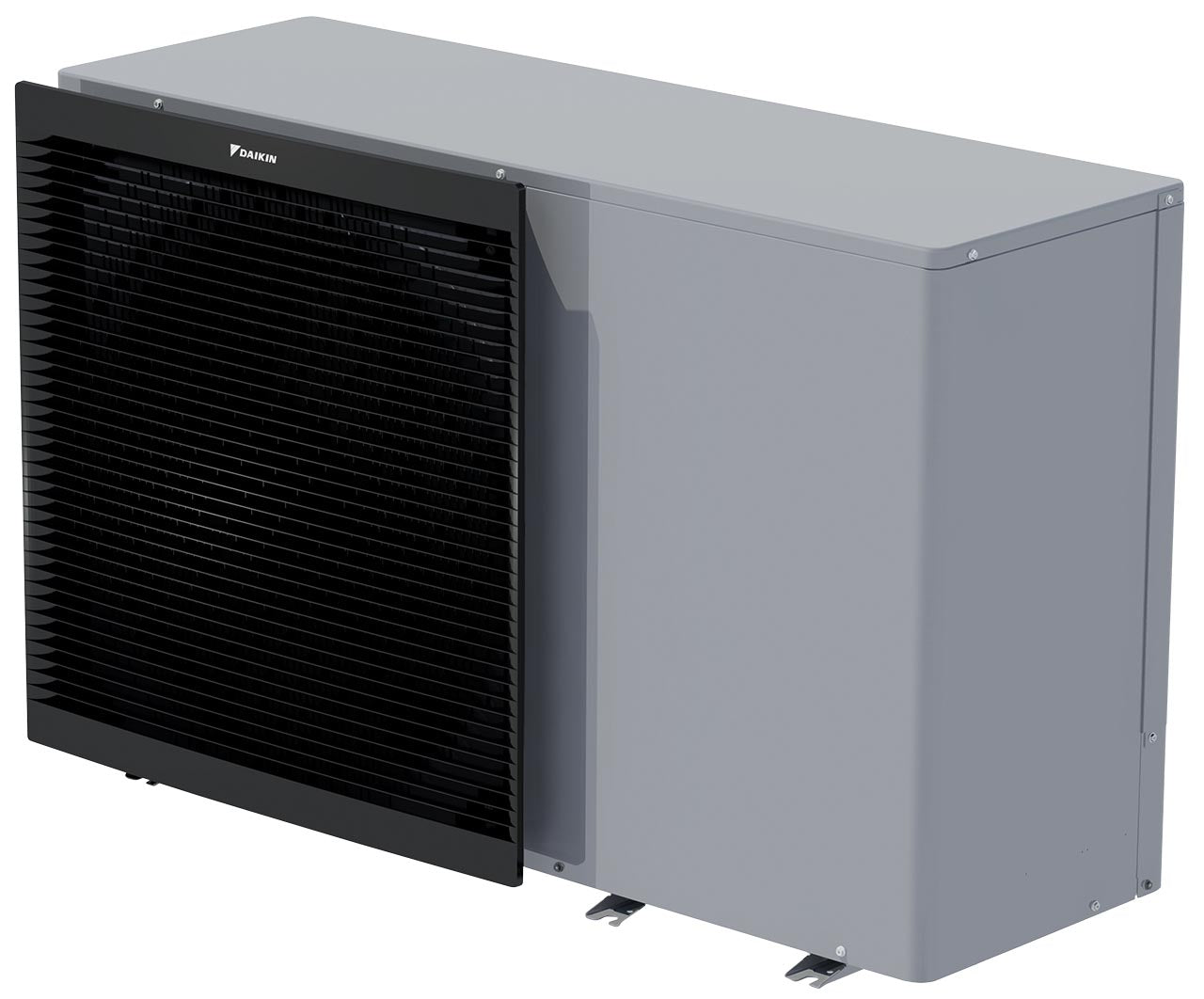

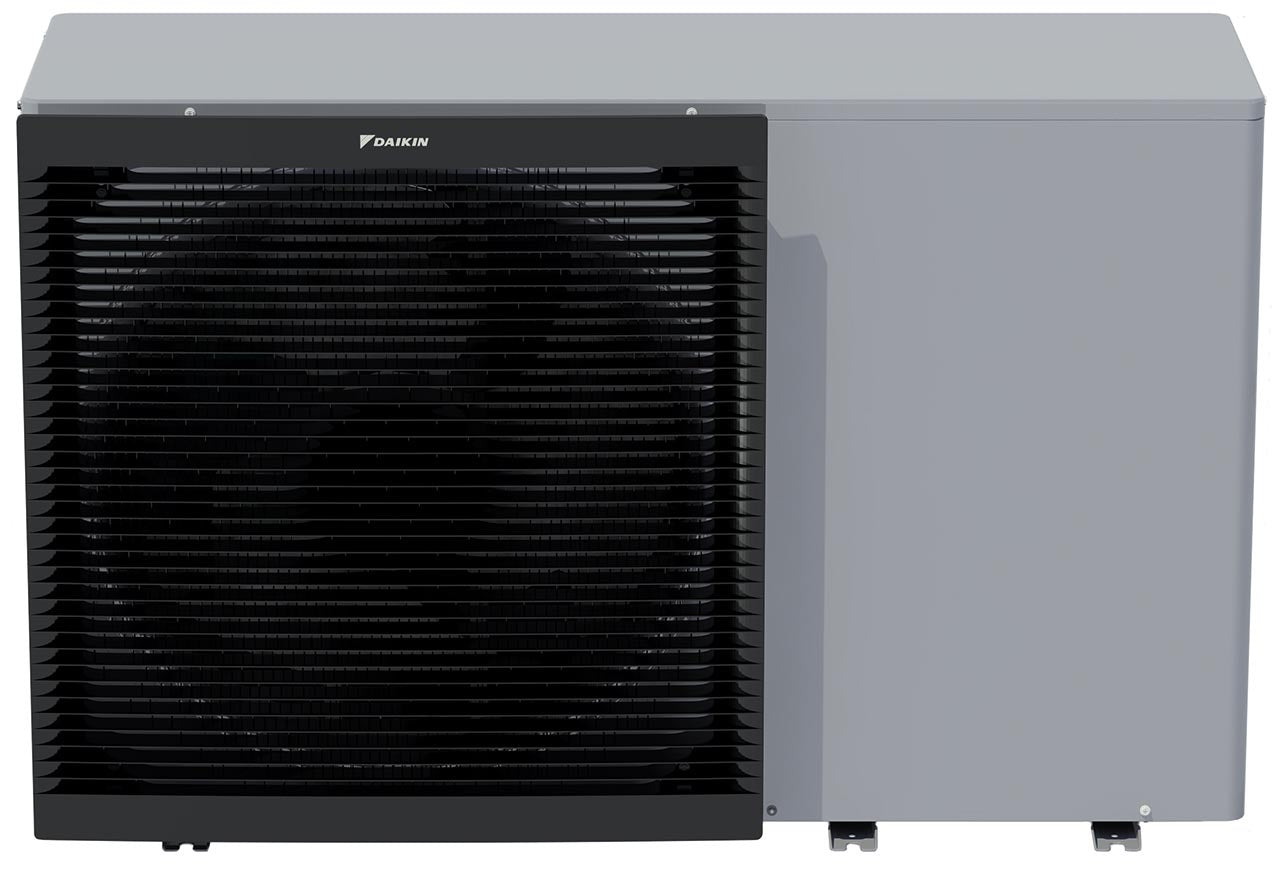

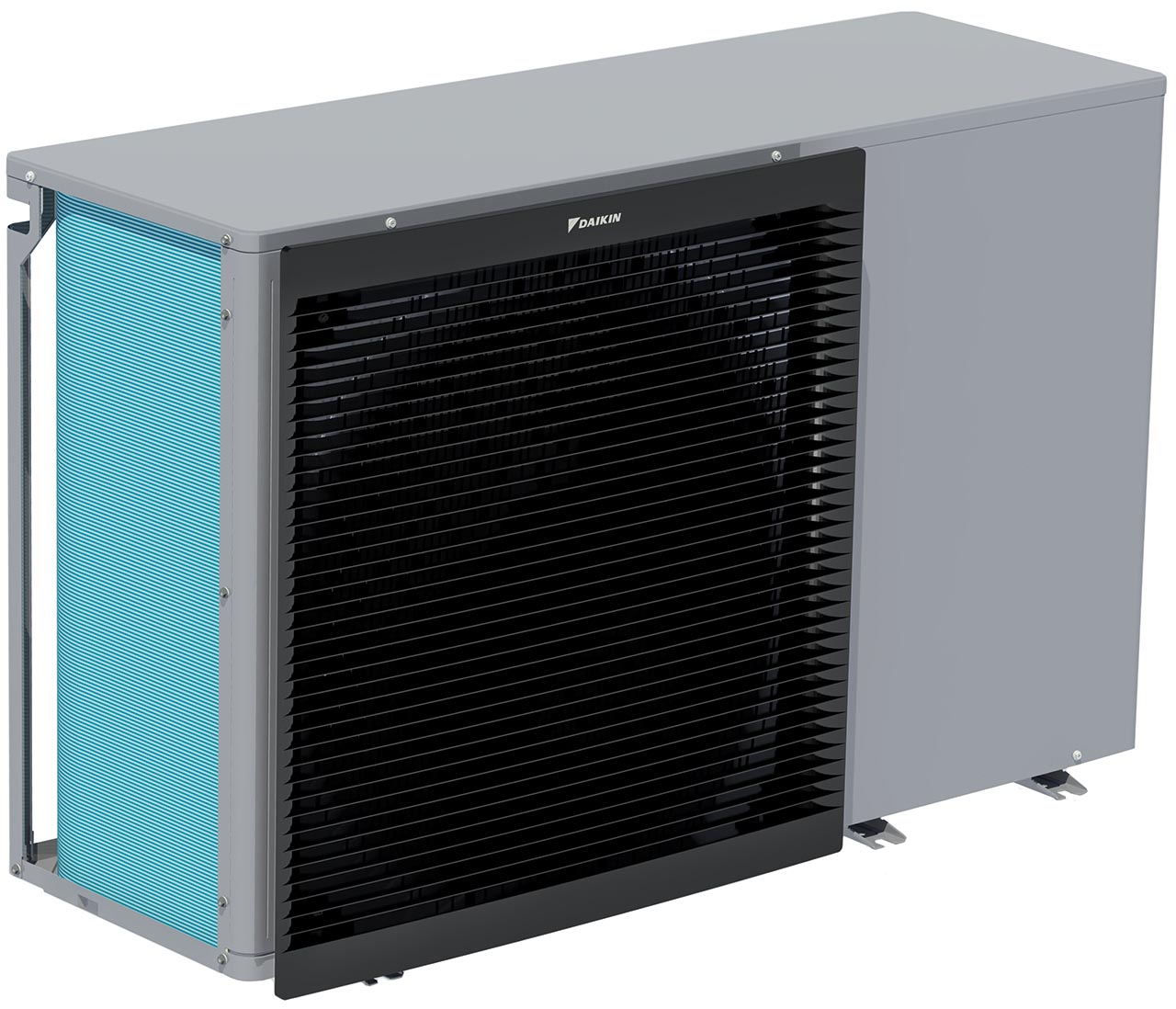

Daikin Altherma low temperature monobloc
Heating only air to water monobloc system, ideal when indoor space is limited
Key Features
- Separate back-up heater kit
- Possible to combine with domestic hot water
- Heating and cooling air to water heat pump
- W-LAN cartridge connection (optional)
- Monobloc all-in-one concept including hydraulic parts
Energy Labels
- Energy Class - Space Heating - Low Temperature
- Energy Label
- Energy Class - Space Heating - Medium Temperature
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Type | Link | ||||
| Energy Class - Space Heating - Low Temperature | |||||
| Energy Class - Space Heating - Medium Temperature |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| COP | 4.53 (1) , 3.51 (2) | ||||
| Compressor component | Main power supply | Phase | 1~ | ||
| 230 | V | ||||
| Dimensions | Unit | Depth | 460 | mm | |
| Height | 870 | mm | |||
| Width | 1380 | mm | |||
| Energy Efficiency Range | Space Heating A+++ ~ D, Water Heating A+ ~ F | ||||
| Fan | Air flow rate | Heating | High | 85.0 | m³/min |
| Heater capacity | Step 1 | 3 | kW | ||
| Heating capacity | Nom. | 16.0 (2) (1) | kW | ||
| Operation range | Domestic hot water | Ambient | Min. | -25 | °CDB |
| Max. | 35 | °CDB | |||
| Water side | Min. | 25 | °C | ||
| Max. | 55 (6) | °C | |||
| Heating | Water side | Min. | 15 (6) | °C | |
| Max. | 60 (6) | °C | |||
| Power input | Heating | Nom. | 3.53 (1) , 4.56 (2) | kW | |
| Power supply | Frequency | 50 | Hz | ||
| Name | V3 | ||||
| Phase | 1~ | ||||
| 230 | V | ||||
| Refrigerant | Charge | 3.80 | kg | ||
| 2.57 | tCO2Eq | ||||
| GWP | 675 | ||||
| Type | R-32 | ||||
| Space heating | Average climate water outlet 35°C | General | SCOP @ | 4.62 | |
| Seasonal space heating eff. class | A+++ | ||||
| Average climate water outlet 55°C | General | SCOP @ | 3.33 | ||
| Seasonal space heating eff. class | A++ | ||||
| Weight | Unit | 149 | kg |
