- SKU: EJHA04AV3

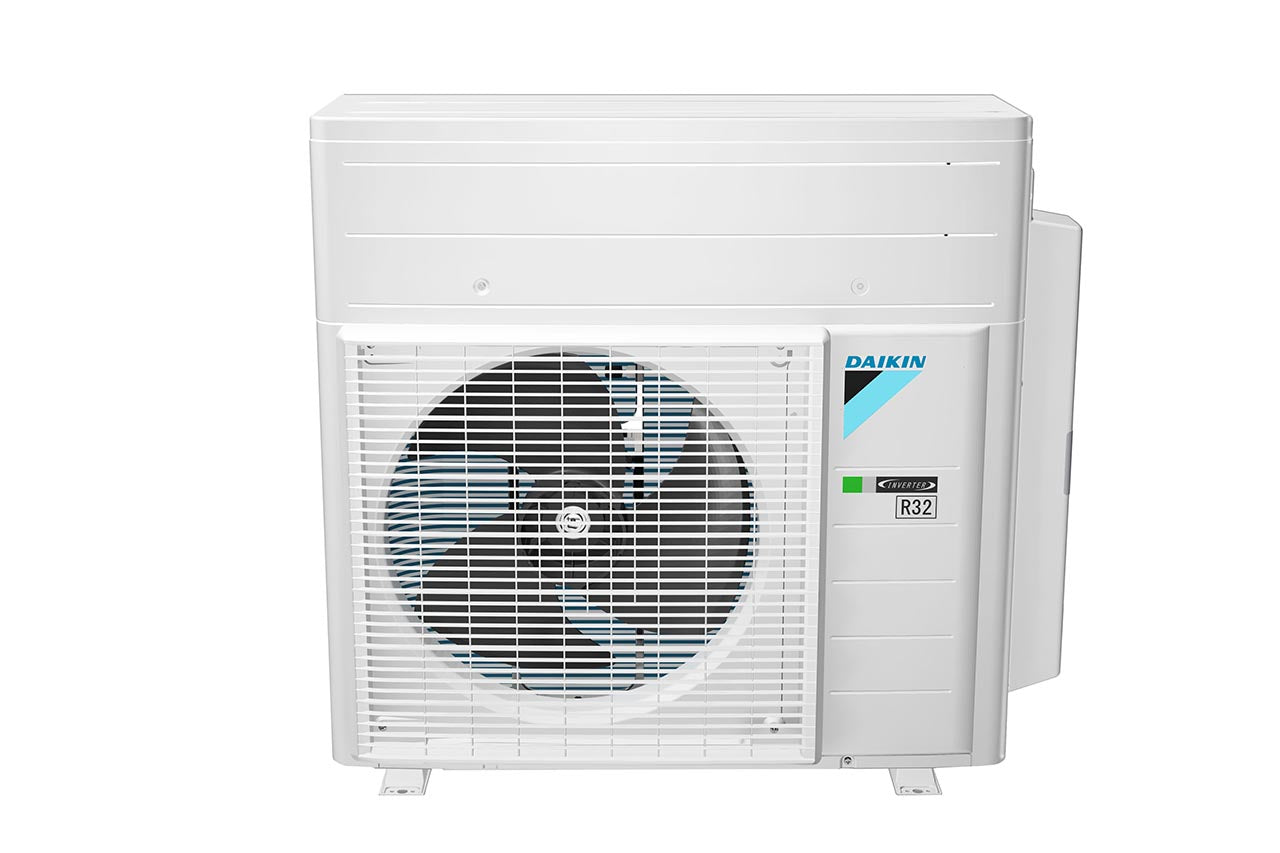

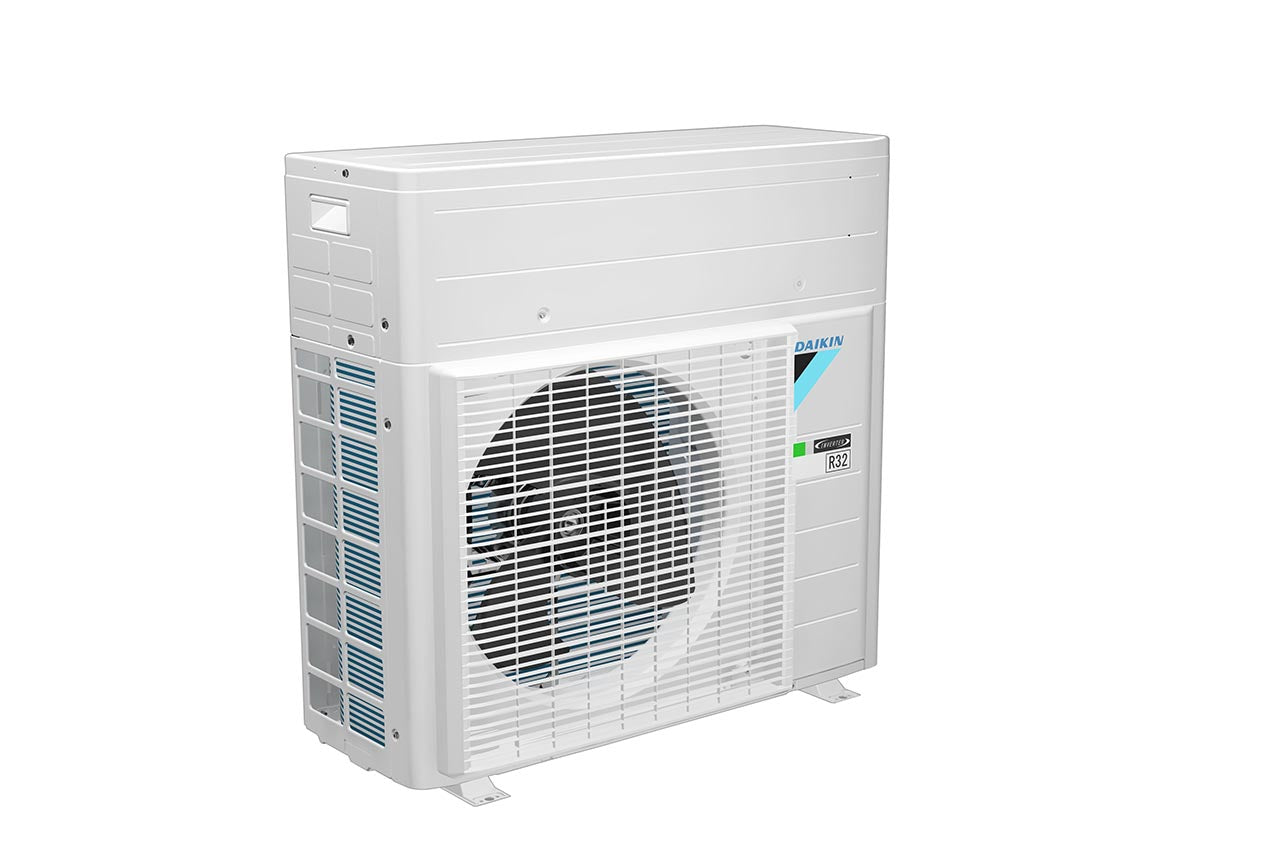

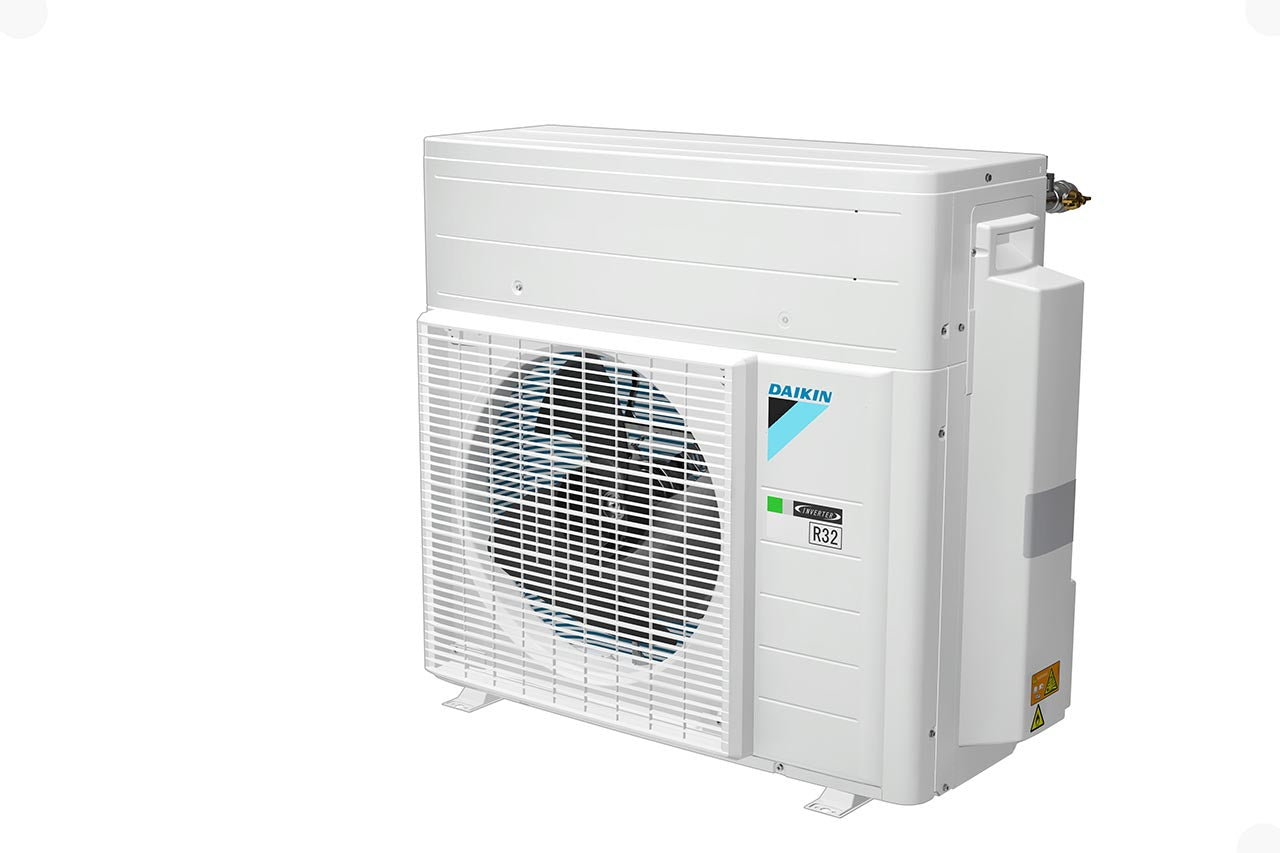

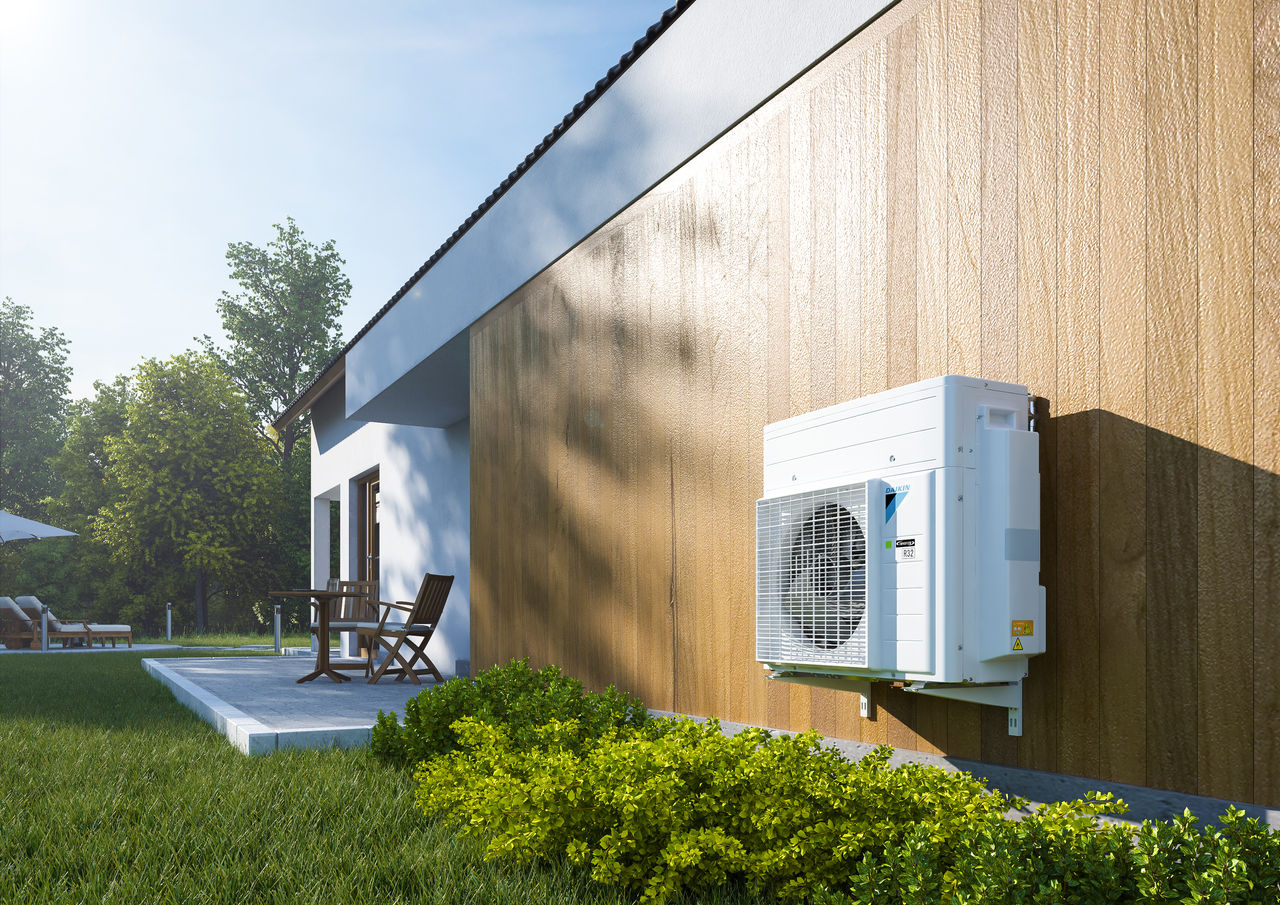

EJHA04AV3 - Hybrid 2 R32 Outdoor Unit
£2,130.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: EJHA04AV3
Key Features
- Easy installation: connection to outdoor without refrigerant
- Hybrid technology (heat pump and gas)
- Small capacity outdoor unit
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| COP | 4.49 (1) | ||||
| Dimensions | Unit | Depth | 329 | mm | |
| Height | 745 | mm | |||
| Width | 845 | mm | |||
| Fan | Air flow rate | Heating | High | 28.3 | m³/min |
| Heating capacity | Nom. | 4.53 (1) | kW | ||
| Operation range | Domestic hot water | Ambient | Min. | -14 | °CDB |
| Max. | 35 | °CDB | |||
| Heating | Ambient | Max. | 25 | °CWB | |
| Power input | Heating | Nom. | 0.850 (1) | kW | |
| Power supply | Frequency | 50 | Hz | ||
| Name | V3 | ||||
| Phase | 1~ | ||||
| 220-240 | V | ||||
| Refrigerant | Charge | 0.560 | kg | ||
| GWP | 675.0 | ||||
| Type | R-32 | ||||
| Sound power level | Heating | Nom. | 58.7 | dBA | |
| Sound pressure level | Heating | Nom. | 37.0 | dBA | |
| Space heating | Average climate water outlet 35°C | General | SCOP | 2.98 | |
| Seasonal space heating eff. class | A | ||||
| ηs (Seasonal space heating efficiency) | 116 | % | |||
| Average climate water outlet 55°C | General | SCOP | 2.60 | ||
| Seasonal space heating eff. class | A+ | ||||
| ηs (Seasonal space heating efficiency) | 101 | % | |||
| Weight | Unit | 45.0 | kg |
