- SKU: EPRA10EV3

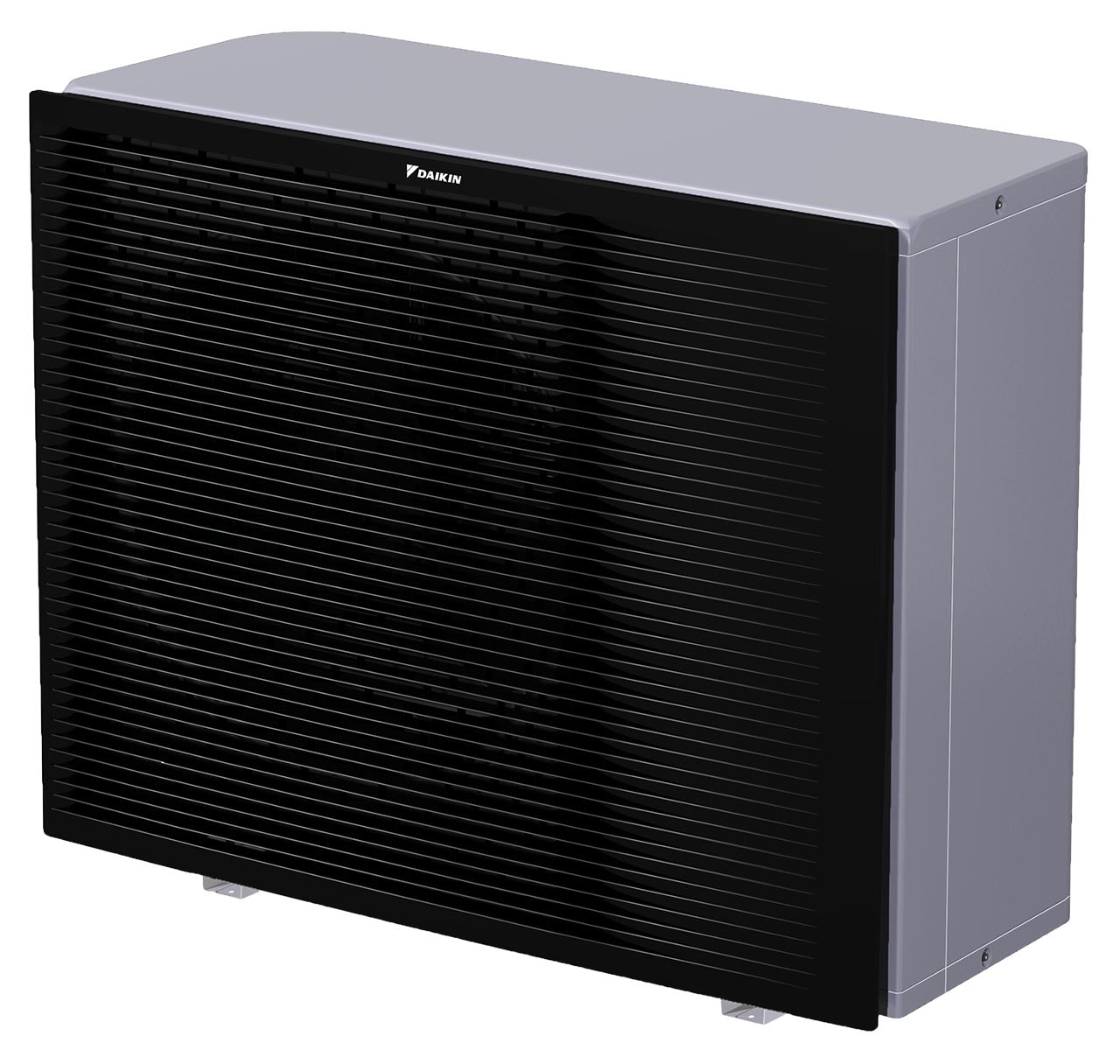

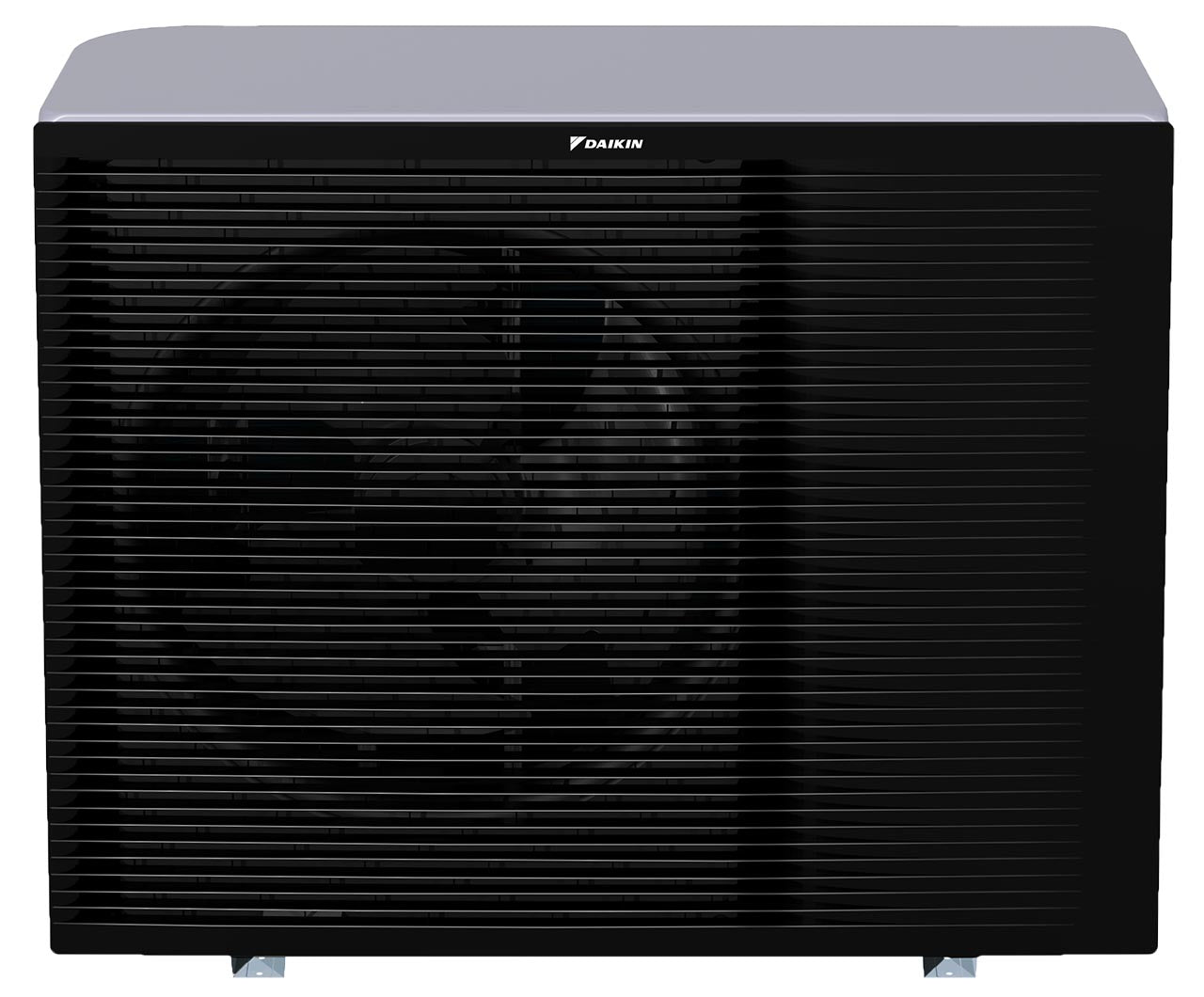

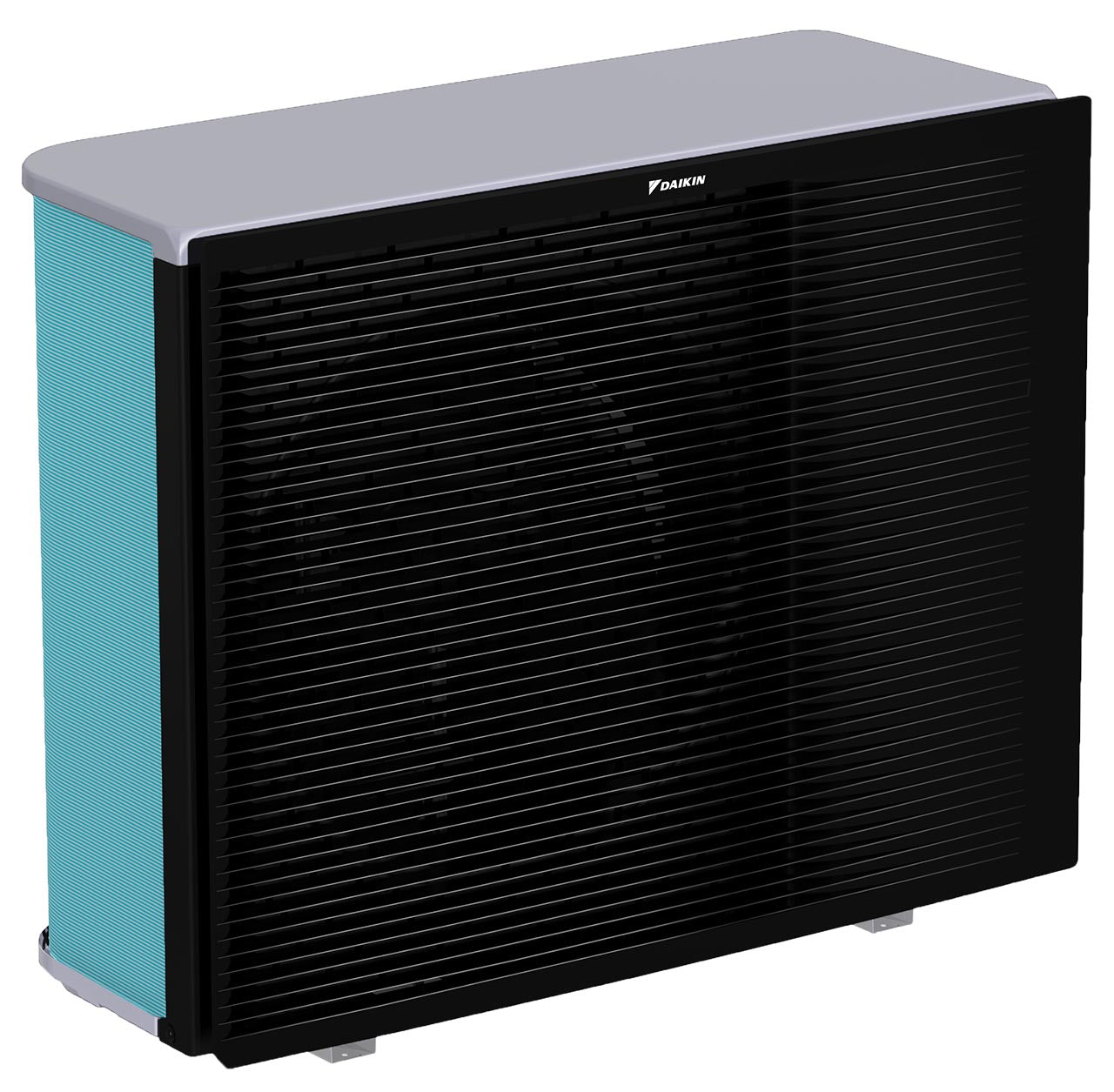

EPRA10EV3 - Daikin Altherma 3 H MT
£3,993.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: EPRA10EV3
Product Details
Daikin Altherma mid temperature split
Key Features
- By heat pump operation only, the outdoor unit delivers a leaving water temperature of 65C at -15C ambient temperature
- Lower environmental impact thanks to R-32 refrigerant
- WLAN cartridge included
- Outdoor unit extracts heat even at -28C
- High capacity at low ambient
Technical Documentation
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Current | Recommended fuses | 32 | A | ||
| Dimensions | Unit | Depth | 533 | mm | |
| Height | 1003 | mm | |||
| Width | 1270 | mm | |||
| Fan | Air flow rate | Cooling | High | 80.1 | m³/min |
| Heating | High | 80.1 | m³/min | ||
| Operation range | Cooling | Max. | 43 | °CDB | |
| Min. | 10 | °CDB | |||
| Domestic hot water | Max. | 35 | °CDB | ||
| Min. | -28 | °CDB | |||
| Piping connections | Level difference | IU | OU | Max. | 10.0 |
| Power supply | Frequency | 50 | Hz | ||
| Name | V3 | ||||
| Phase | 1~ | ||||
| 230 | |||||
| Refrigerant | Charge | 2.19 | tCO2Eq | ||
| 3.25 | |||||
| GWP | 675.0 | ||||
| Type | R-32 | ||||
| Sound power level | Cooling | Nom. | 60.6 (2) | dBA | |
| Heating | Nom. | 54.0 (1) | dBA | ||
| Sound pressure level | Cooling | Nom. | 47.4 (4) | dBA | |
| Heating | Nom. | 40.6 (3) | dBA | ||
| Weight | Unit | 118 | kg |
