- SKU: ERGA08EVA

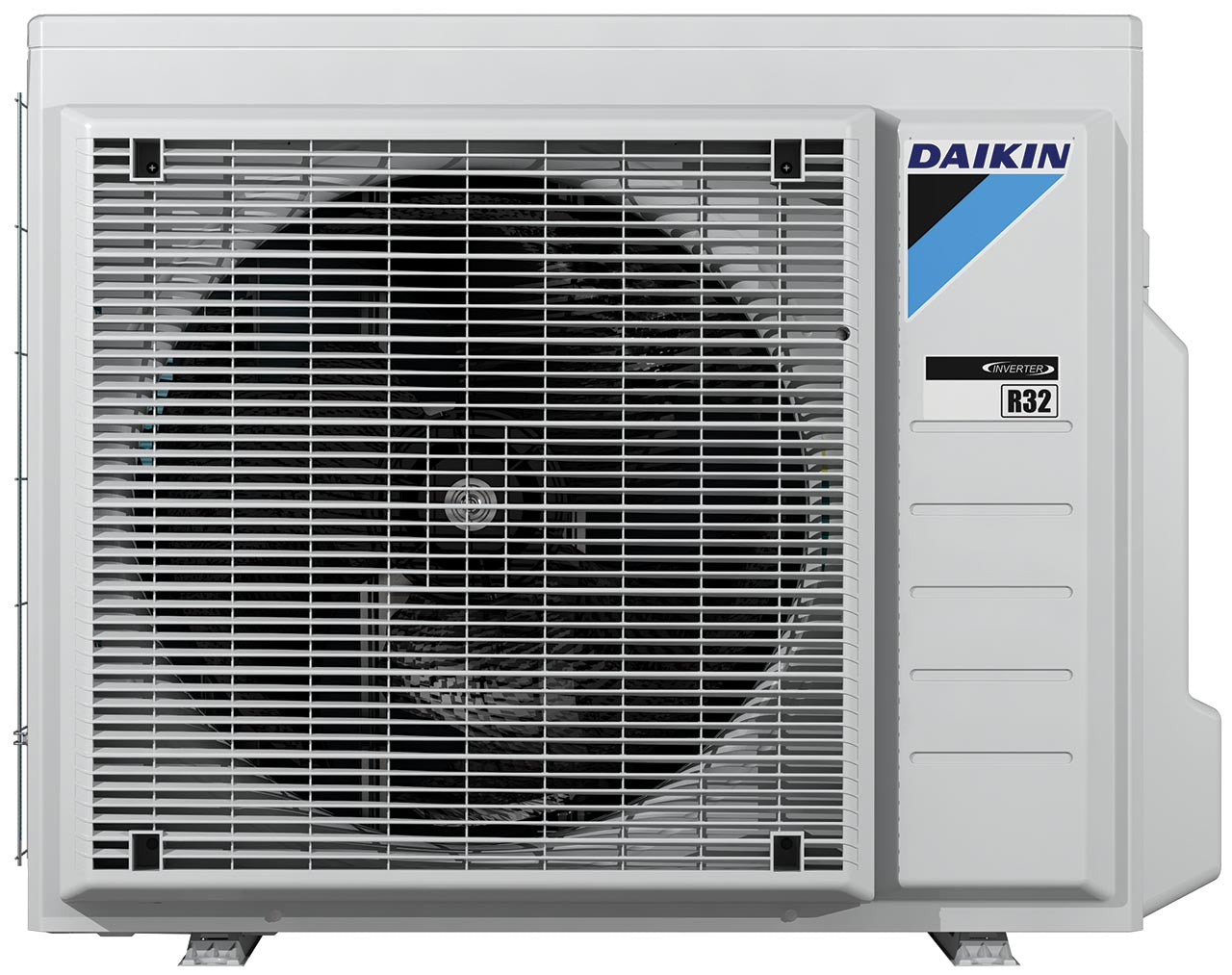

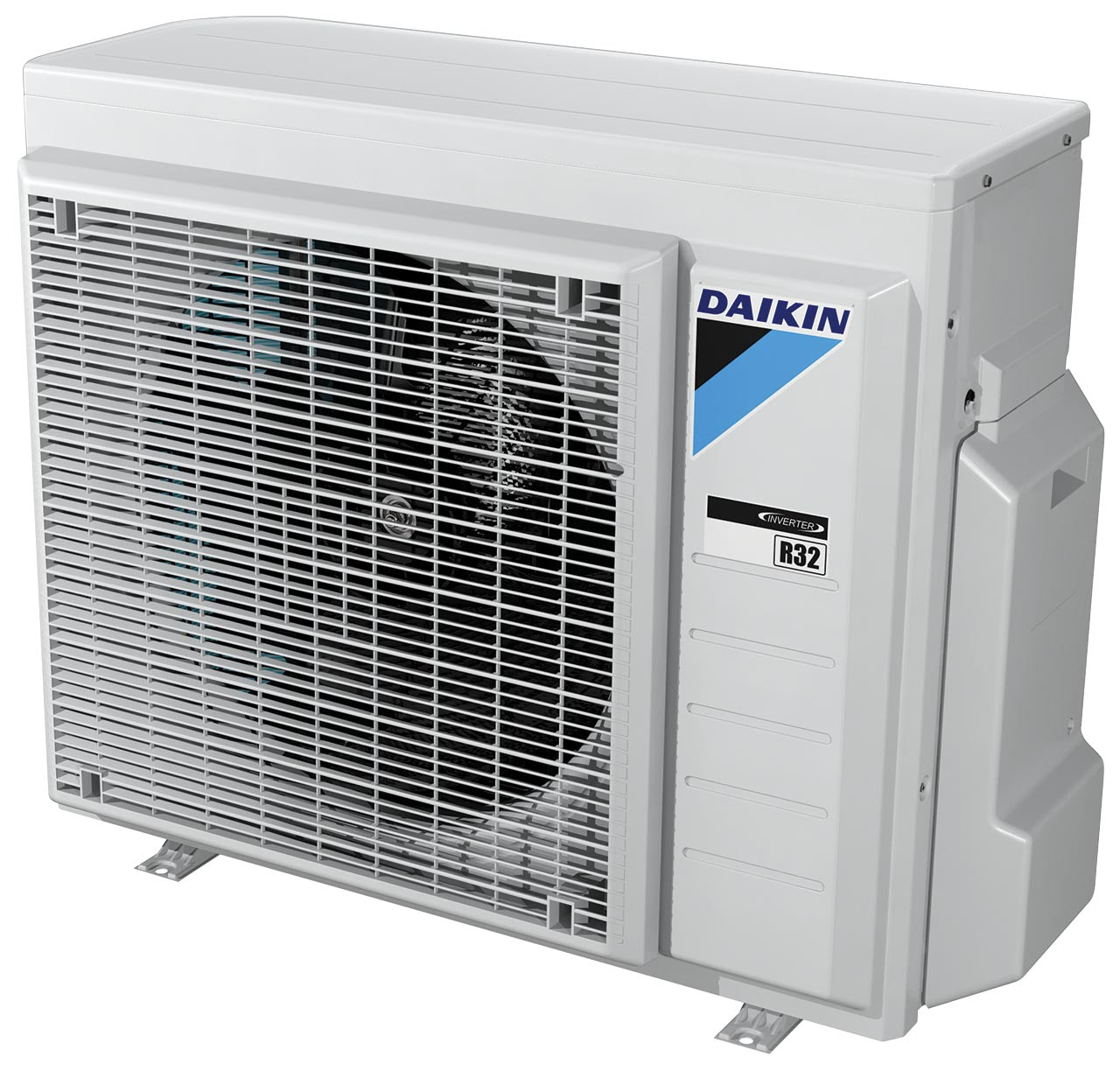

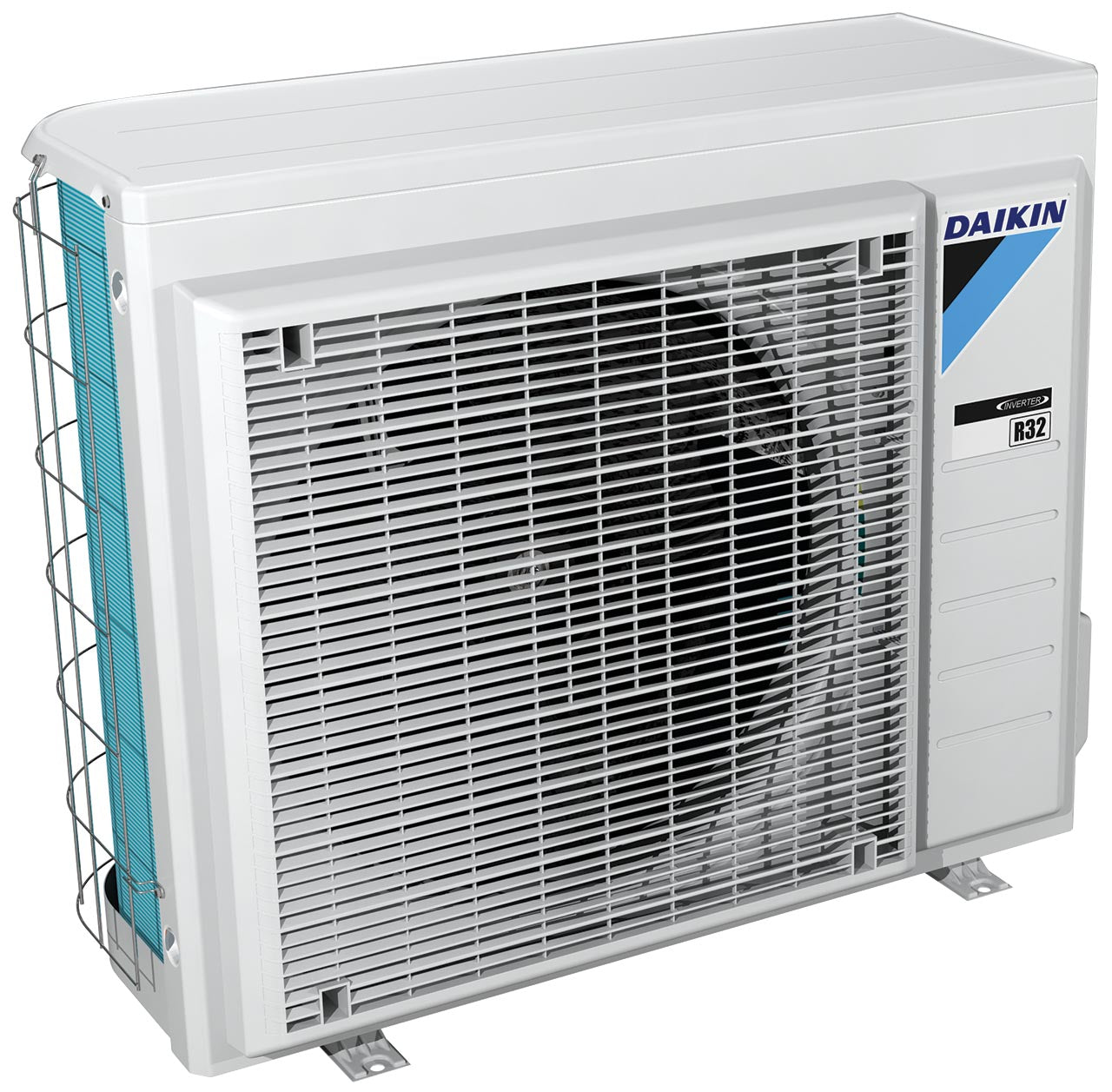

ERGA08EVA - Daikin Altherma 3 R
£2,346.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: ERGA08EVA
Product Details
Daikin Altherma low temperature split
Key Features
- Combining with R-32 Bluevolution technology lowers your environmental impact
- Outdoor unit extracts heat even at -25C
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Current | Recommended fuses | 16 | A | ||
| Dimensions | Unit | Depth | 388 | mm | |
| Height | 740 | mm | |||
| Width | 884 | mm | |||
| Operation range | Cooling | Max. | 43 | °CDB | |
| Min. | 10 | °CDB | |||
| Domestic hot water | Max. | 35 | °CDB | ||
| Min. | -25 | °CDB | |||
| Piping connections | Drain | OD | 18 | mm | |
| Gas | OD | 15.9 | mm | ||
| Heat insulation | Both liquid and gas pipes | ||||
| Level difference | IU | OU | Max. | 20.0 | |
| Liquid | OD | 6 | mm | ||
| Power supply | Frequency | 50 | Hz | ||
| Name | V3 | ||||
| Phase | 1N~ | ||||
| 230 | |||||
| Refrigerant | Charge | 1.01 | tCO2Eq | ||
| 1.5 | |||||
| GWP | 675.0 | ||||
| Type | R-32 | ||||
| Sound power level | Cooling | Nom. | 62 (1) | dBA | |
| Heating | Nom. | 62 (1) | dBA | ||
| Sound pressure level | Cooling | Nom. | 50 (1) | dBA | |
| Heating | Nom. | 49 (1) | dBA | ||
| Weight | Unit | 58.5 | kg |
