- SKU: ERLA16DV37

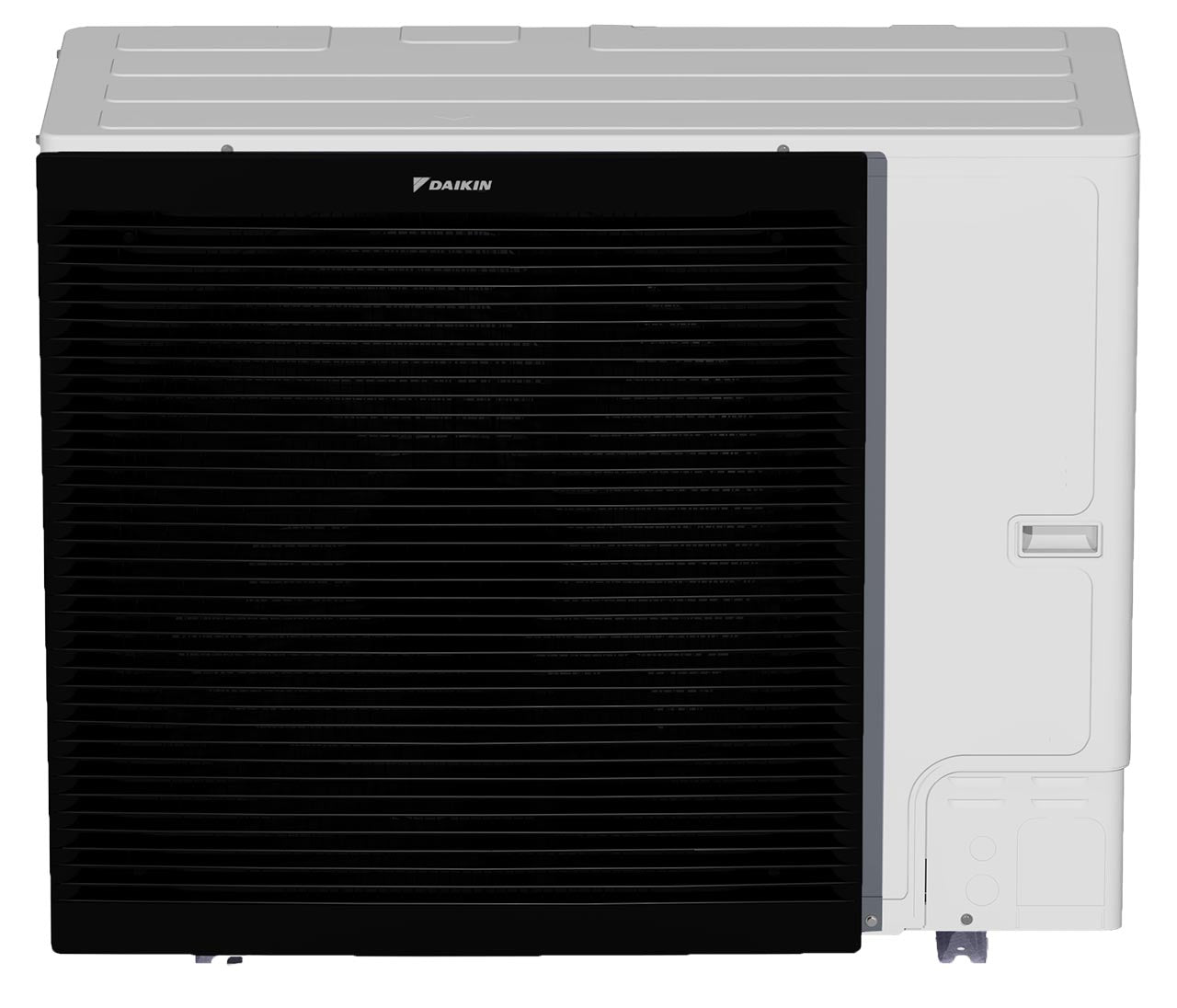

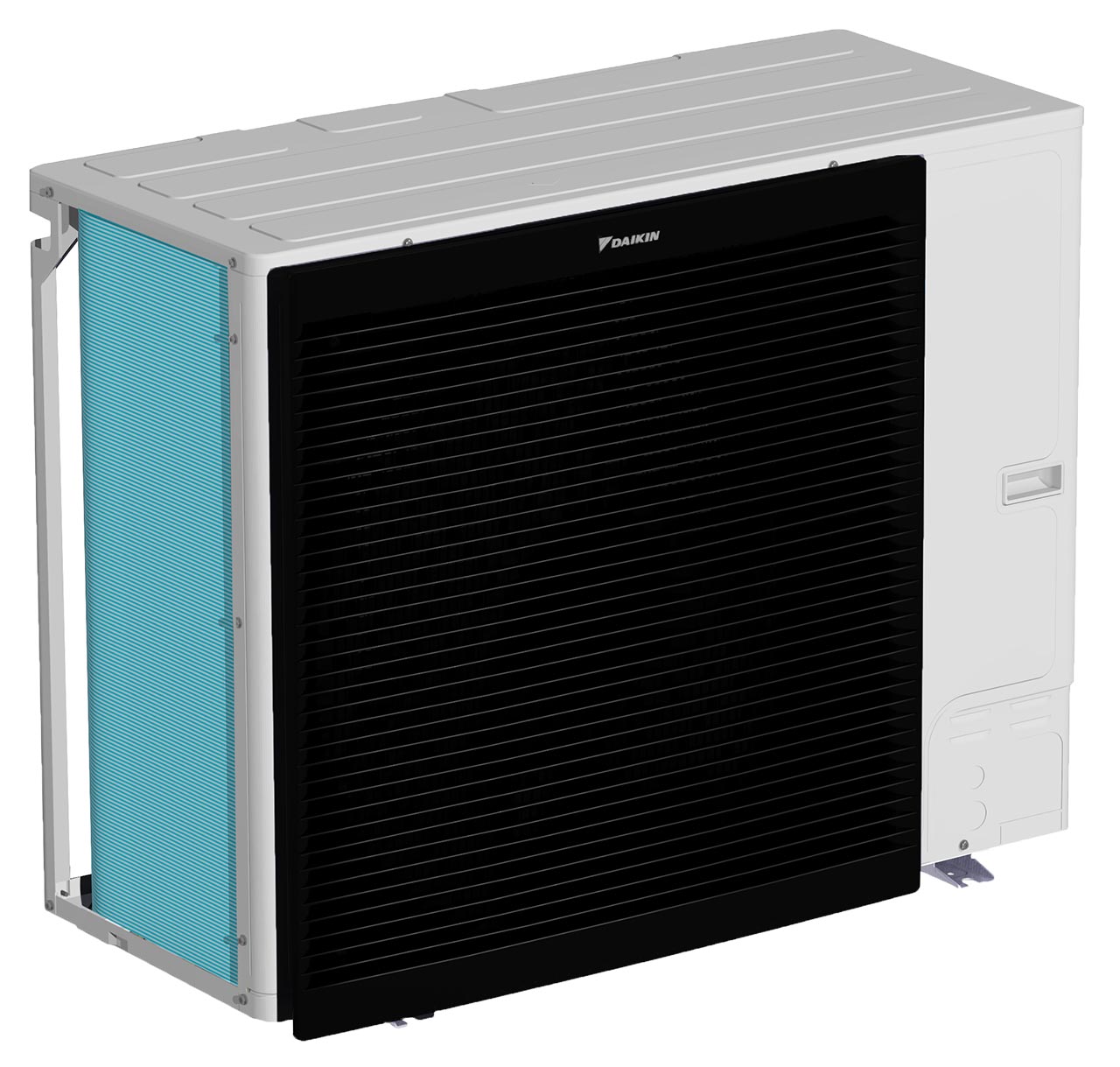

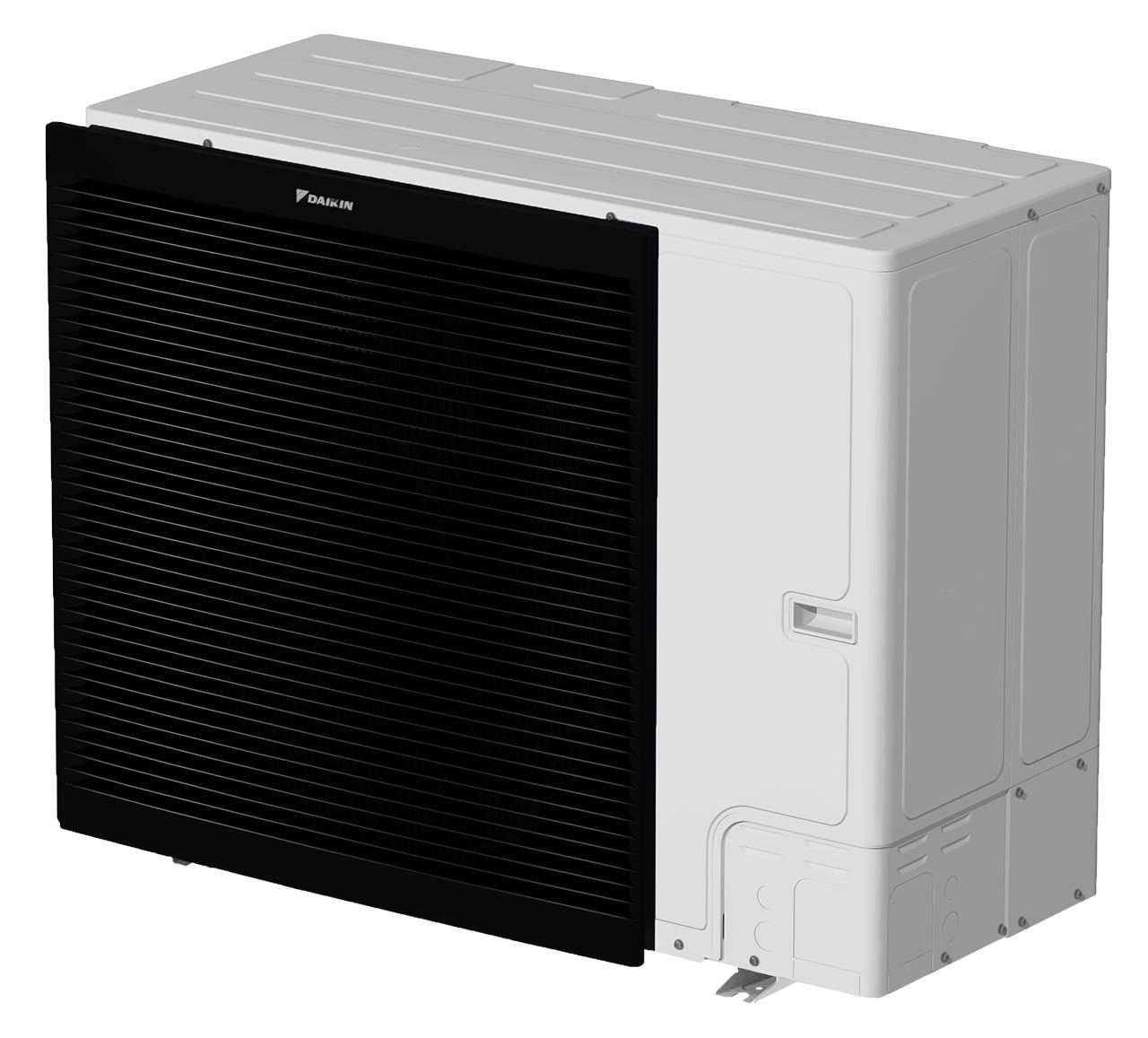

ERLA16DV37 - Daikin Altherma 3 R
£4,809.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: ERLA16DV37
Product Details
Daikin Altherma low temperature split
Key Features
- W-LAN Adapter and cartridge connection (optional)
- Combining with R-32 Bluevolution technology lowers your environmental impact
- Outdoor unit extracts heat even at -25C
- Black grille hiding the fan from view
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Current | Recommended fuses | 32 | A | ||
| Dimensions | Unit | Depth | 460 | mm | |
| Height | 870 | mm | |||
| Width | 1100 | mm | |||
| Fan | Air flow rate | Cooling | High | 85 | m³/min |
| Heating | High | 85.0 | m³/min | ||
| Operation range | Cooling | Max. | 43 | °CDB | |
| Min. | 10 | °CDB | |||
| Domestic hot water | Max. | 25 (1) , 35 (1) | °CDB | ||
| Min. | -25 | °CDB | |||
| Piping connections | Drain | OD | 26 | mm | |
| Gas | OD | 15.9 | mm | ||
| Heat insulation | Both liquid and gas pipes | ||||
| Level difference | IU | OU | Max. | 30.0 | |
| Liquid | OD | 9.5 | mm | ||
| Power supply | Frequency | 50 | Hz | ||
| Name | V3 | ||||
| Phase | 1~ | ||||
| 230 | |||||
| Refrigerant | Charge | 2.57 | tCO2Eq | ||
| 3.8 | |||||
| GWP | 675.0 | ||||
| Type | R-32 | ||||
| Sound power level | Heating | Nom. | 62.0 (2) | dBA | |
| Sound pressure level | Heating | Nom. | 48.0 (2) | dBA | |
| Weight | Unit | 101 | kg |
