- SKU: ETVH12SU23E6V
ETVH12SU23E6V - Daikin Altherma 3 H MT F
£3,158.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: ETVH12SU23E6V
Product Details

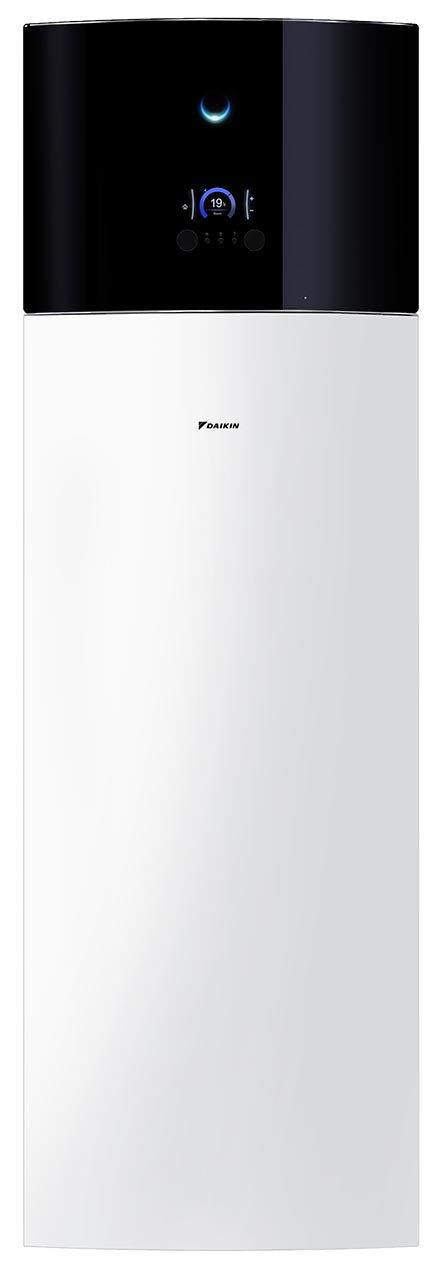

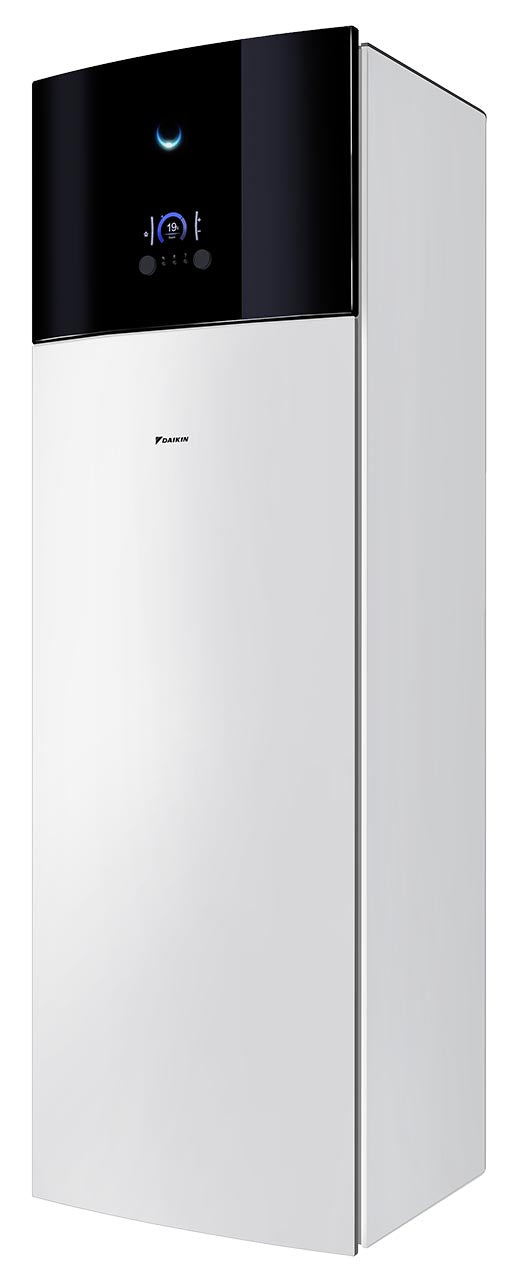

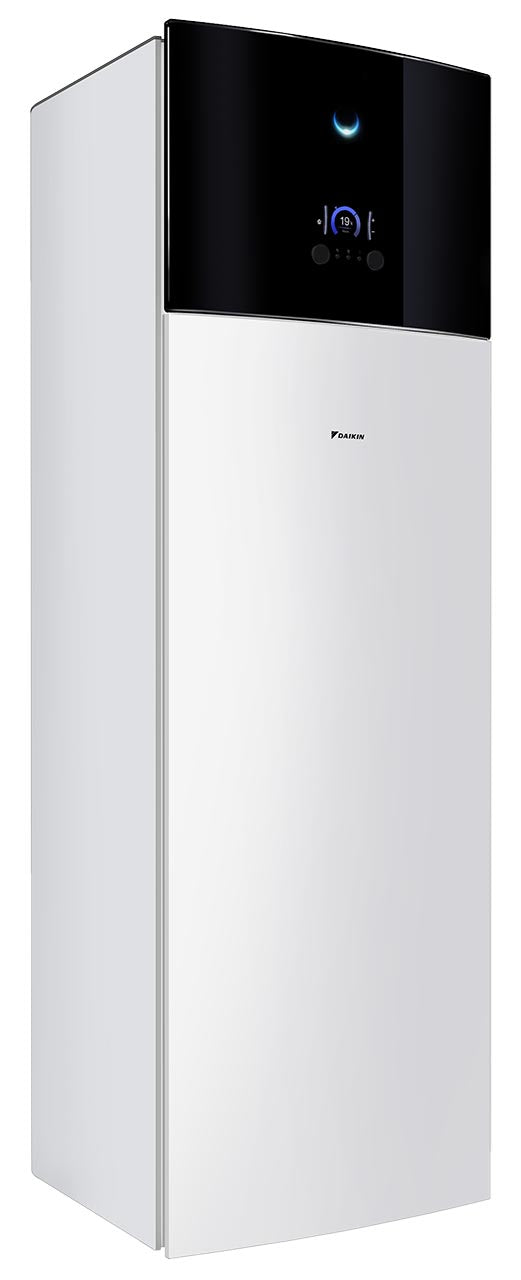

Daikin Altherma mid temperature split
Floor standing air to water heat pump for heating and hot water
Key Features
- Heating and domestic hot water integrated in one indoor unit
- Bi-zone allows temperature monitoring for 2 zones

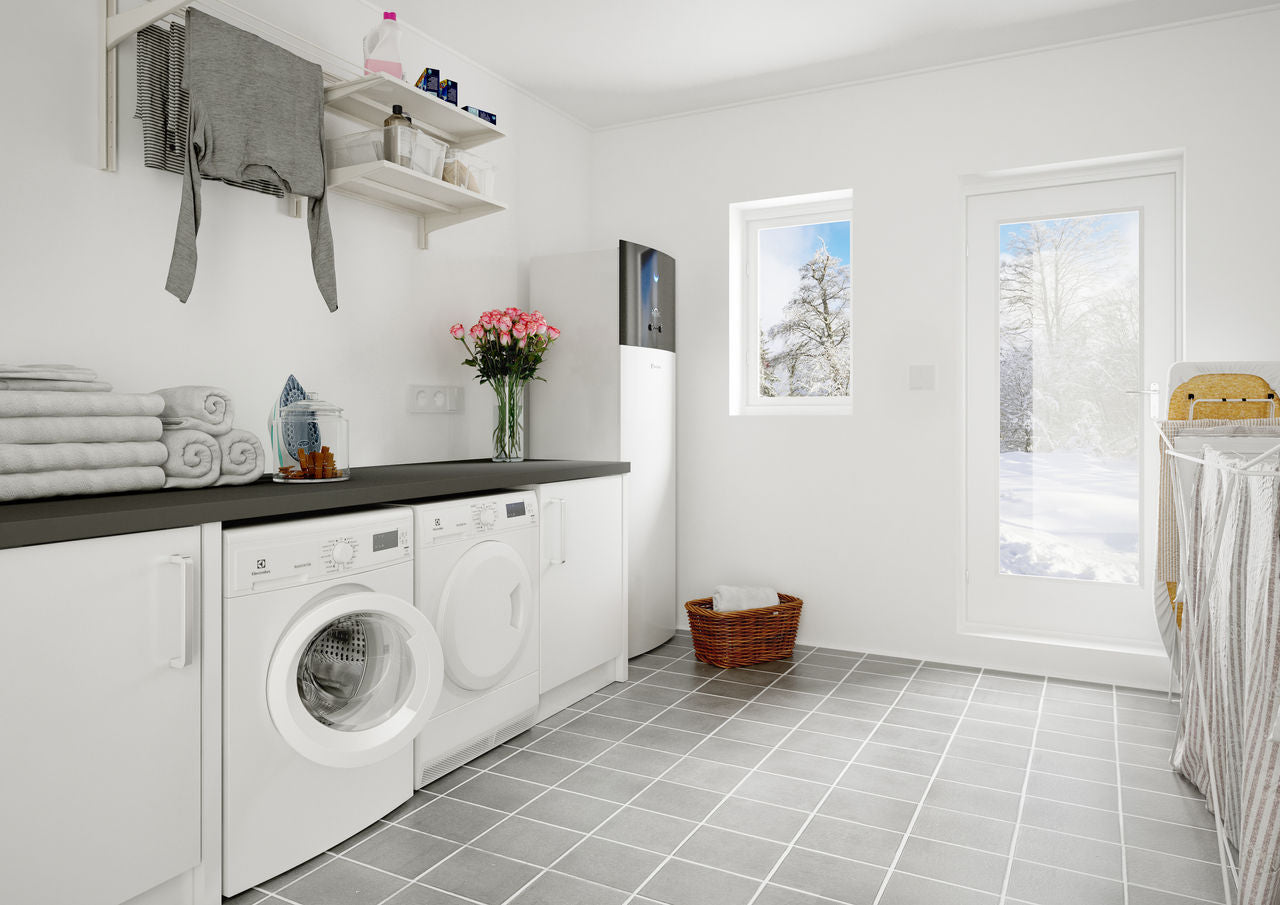

- Unit design blends in with other household appliances.
- Quick configuration in 9 steps
- All hydraulic components included
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Material | Precoated sheet metal | |||
| Dimensions | Unit | Depth | 625 | mm | |
| Height | 1,850 | mm | |||
| Width | 595 | mm | |||
| Electric heater | Power supply | Frequency | 50 | Hz | |
| Name | 6V3 | ||||
| Phase | 1~ / 3~ | ||||
| 230 | V | ||||
| Recommended fuses | 20.000 (10) | A | |||
| Operation range | Cooling | Ambient | Min. | 0 (7) | °CDB |
| Water side | Min. | 0 (7) | °C | ||
| Max. | 0 (7) | °C | |||
| Heating | Water side | Min. | 0 (7) | °C | |
| Max. | 0 (7) | °C | |||
| Power supply | Name | See note 9 | |||
| Sound power level | Nom. | 44.0 (5) | dBA | ||
| Sound pressure level | Nom. | 30.0 (6) | dBA | ||
| Weight | Unit | 117 | kg |
