- SKU: FWXT15ABTV3

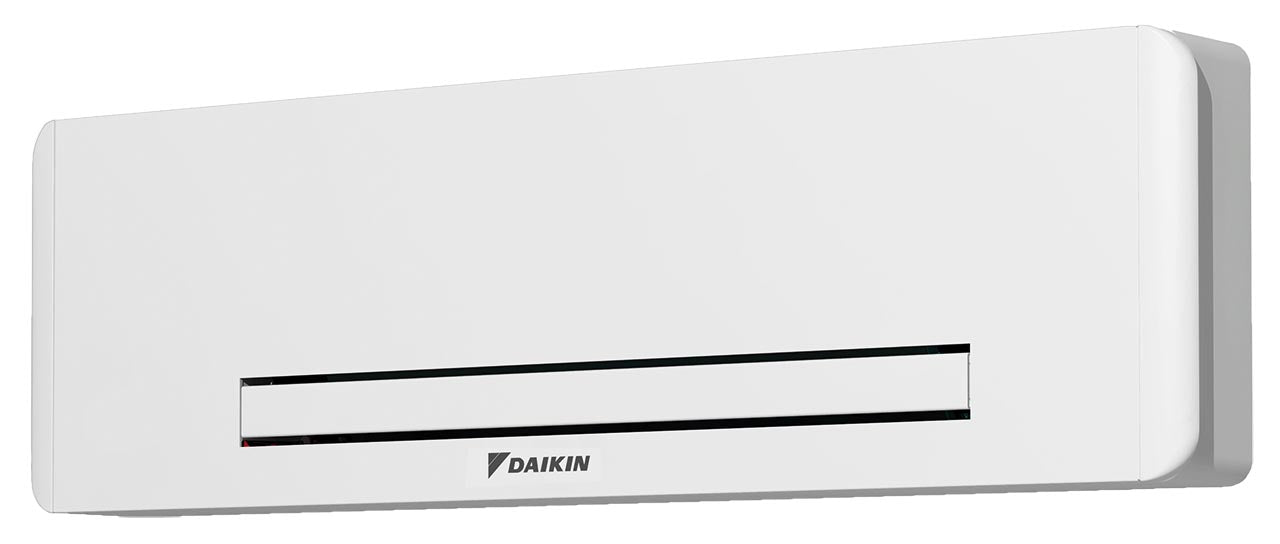

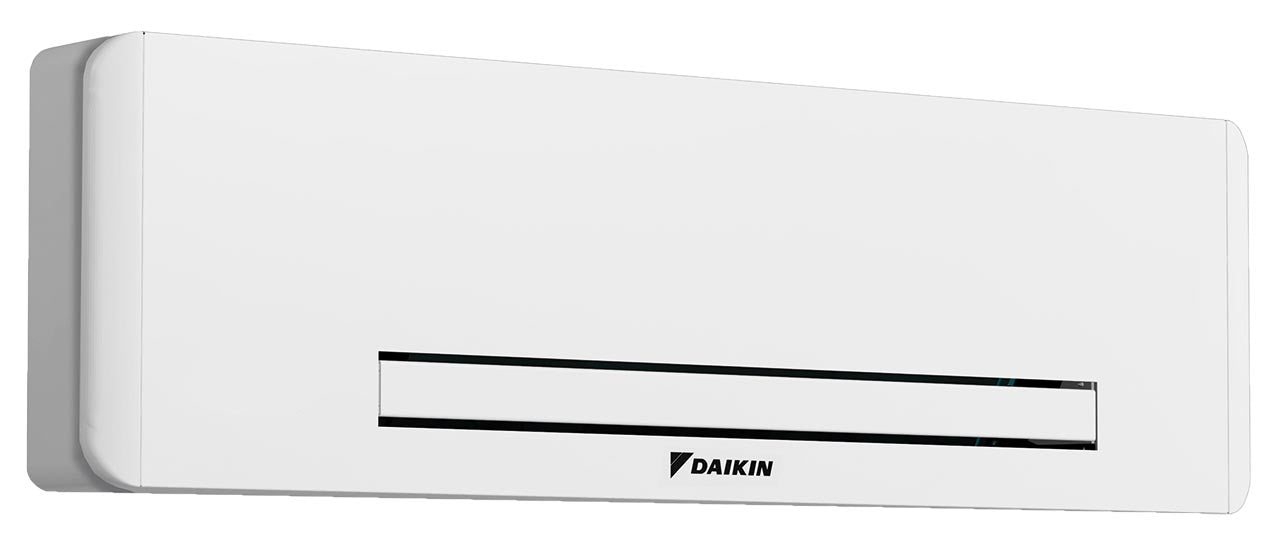

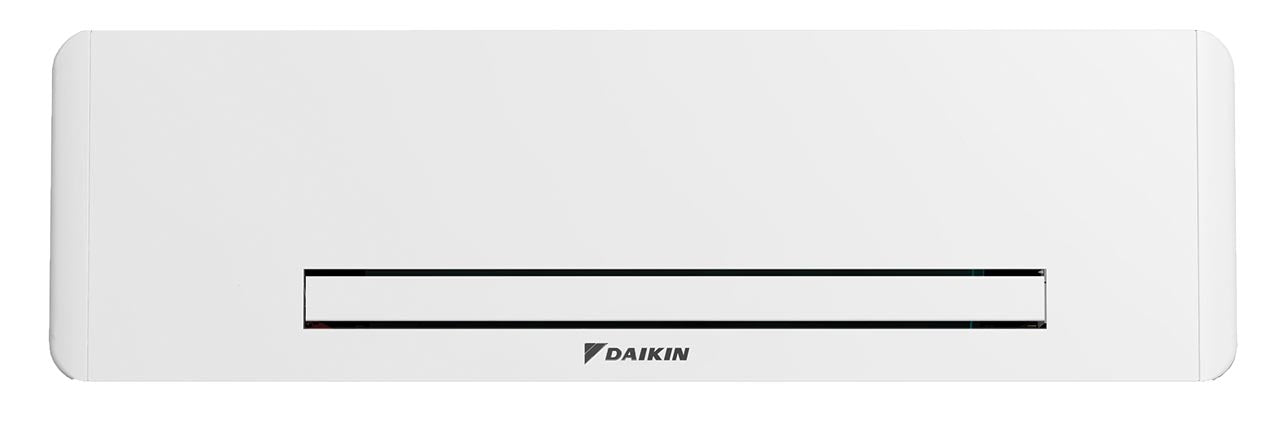

FWXT15ABTV3 - HPC Wall Mounted Models Right Configuration
£630.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: FWXT15ABTV3
Product Details
Heat pump convector
The optimised cooling and heating combination of efficiency, comfort and flexibility
Key Features
- Wall mounted indoor unit
- High heating/cooling capacity
- Optimized for combination with heat pumps
- Pipe connection on the right hand side
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Colour | RAL 9003 | |||
| Material | Sheet metal | ||||
| Control systems | Infrared remote control | For FWXT-ATV3(C)(CL) | |||
| Integrated on indoor unit | Yes | ||||
| Cooling capacity | 7/12°C | Max. | 1.61 | kW | |
| Med. | 1.08 | kW | |||
| Min. | 0.62 | kW | |||
| Current | Maximum running current | Cooling | 0.18 | A | |
| Heating | 0.18 | A | |||
| Dimensions | Packed unit | Depth | 210 | mm | |
| Height | 490 | mm | |||
| Width | 1230 | mm | |||
| Unit | Depth | 128 | mm | ||
| Height | 335 | mm | |||
| Width | 1102 | mm | |||
| Electrical power consumption | Max. | 20 | W | ||
| Standby | 4 | W | |||
| Fan speed | Max. | 1500.00 | rpm | ||
| Med. | 1100.00 | rpm | |||
| Min. | 680.00 | rpm | |||
| Heat exchanger | Charging | Operating pressure | 10 | bar | |
| Quantity | 1 | ||||
| 0.61 | |||||
| Heating capacity | 45/40°C | Max. | 2.01 | kW | |
| Med. | 1.36 | kW | |||
| Min. | 0.79 | kW | |||
| Operation range | Cooling | Water side | Min. | 5 | °C |
| Max. | 18 | °C | |||
| Heating | Water side | Min. | 30 | °C | |
| Max. | 85 | °C | |||
| Indoor installation | Ambient | Min. | 0 | °CDB | |
| Max. | 45 | °CDB | |||
| Packing | Material | Carton | |||
| Weight | 1 | kg | |||
| Power input | Max. | 0.02 | kW | ||
| Med. | 0.01 | kW | |||
| Min. | 0.01 | kW | |||
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 230 | |||||
| Sensible cooling capacity | 7/12°C | Max. | 1.27 | kW | |
| Med. | 0.86 | kW | |||
| Min. | 0.52 | kW | |||
| Sound power level | Max. | 54.0 | dBA | ||
| Med. | 47 | dBA | |||
| Min. | 36 | dBA | |||
| Water circuit | Piping material | COPPER | |||
| Pressure | Heating | Max. | 10 | bar | |
| water flow rate | Cooling | 7/12°C | Min. | 110 | |
| Med. | 190 | ||||
| Max. | 280 | ||||
| Heating | 45/40°C | Min. | 140 | ||
| Med. | 240 | ||||
| Max. | 350 | ||||
| water pressure drop | Cooling | 7/12°C | Min. | 4.70 | |
| Med. | 5.60 | ||||
| Max. | 5.10 | ||||
| Heating | 45/40°C | Min. | 4.81 | ||
| Med. | 6.30 | ||||
| Max. | 7.20 | ||||
| 3/4 | |||||
| Weight | Packed unit | 17 | kg | ||
| Unit | 16 | kg |
