  • SKU: FWXT15ABTV3CL

FWXT15ABTV3CL - Daikin Altherma HPC

£615.00

Shipping calculated at checkout.

Price excludes VAT. VAT will be added at checkout.

Free Shipping on Orders Over £500

Easy 30-day Returns

Manufacturer’s Warranty

Select The Options Above

Product Code: FWXT15ABTV3CL

Product Details

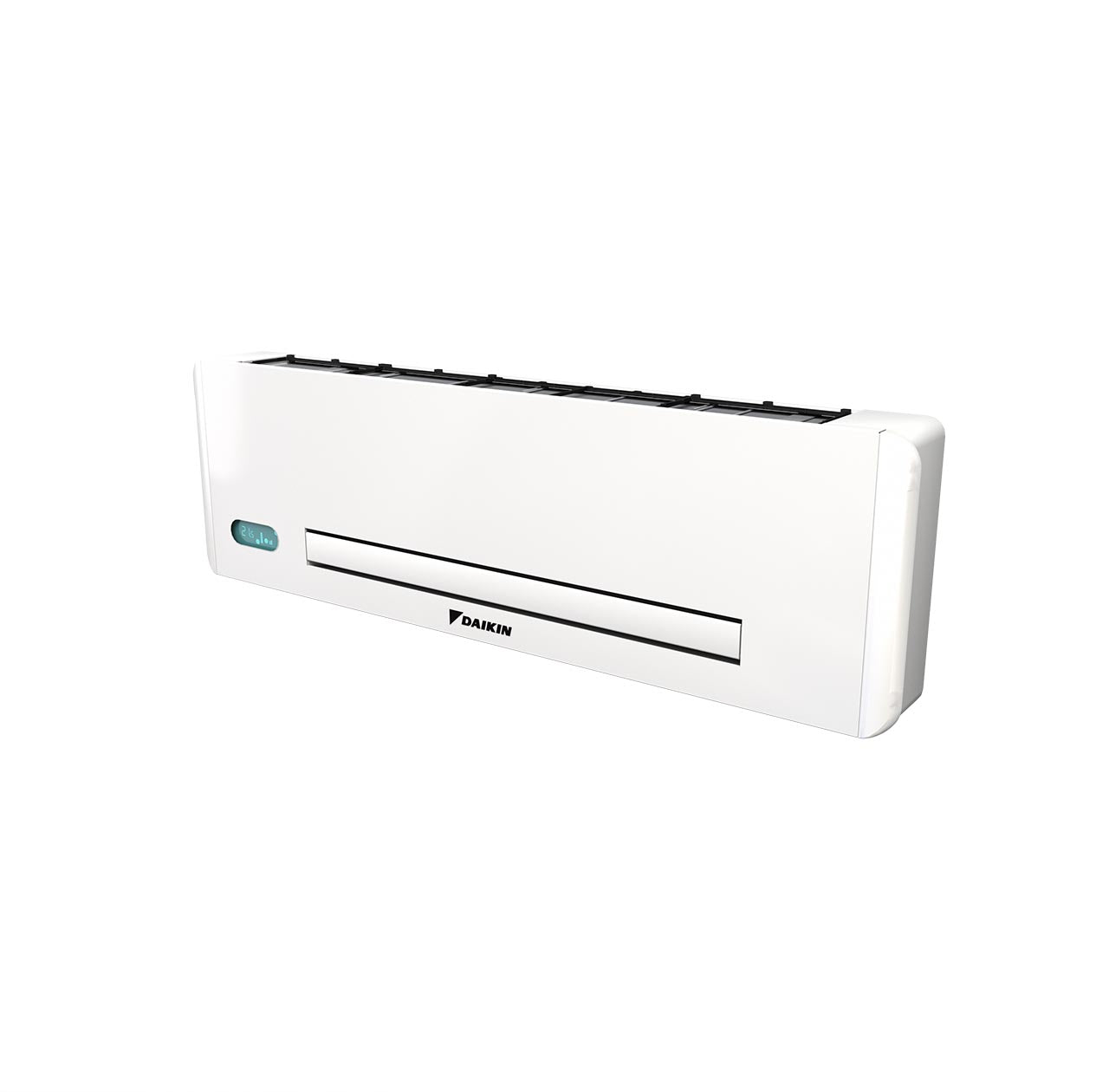

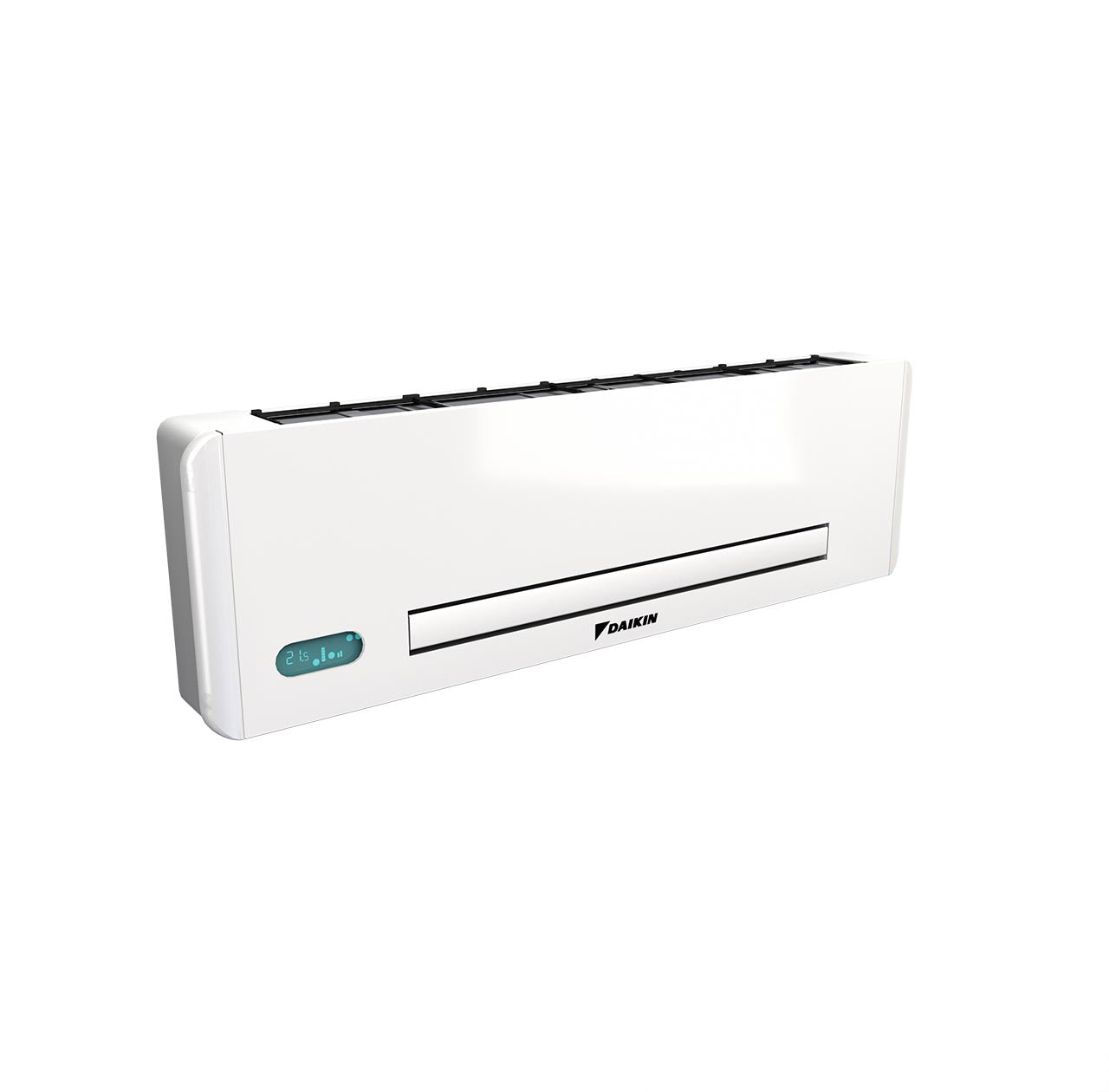

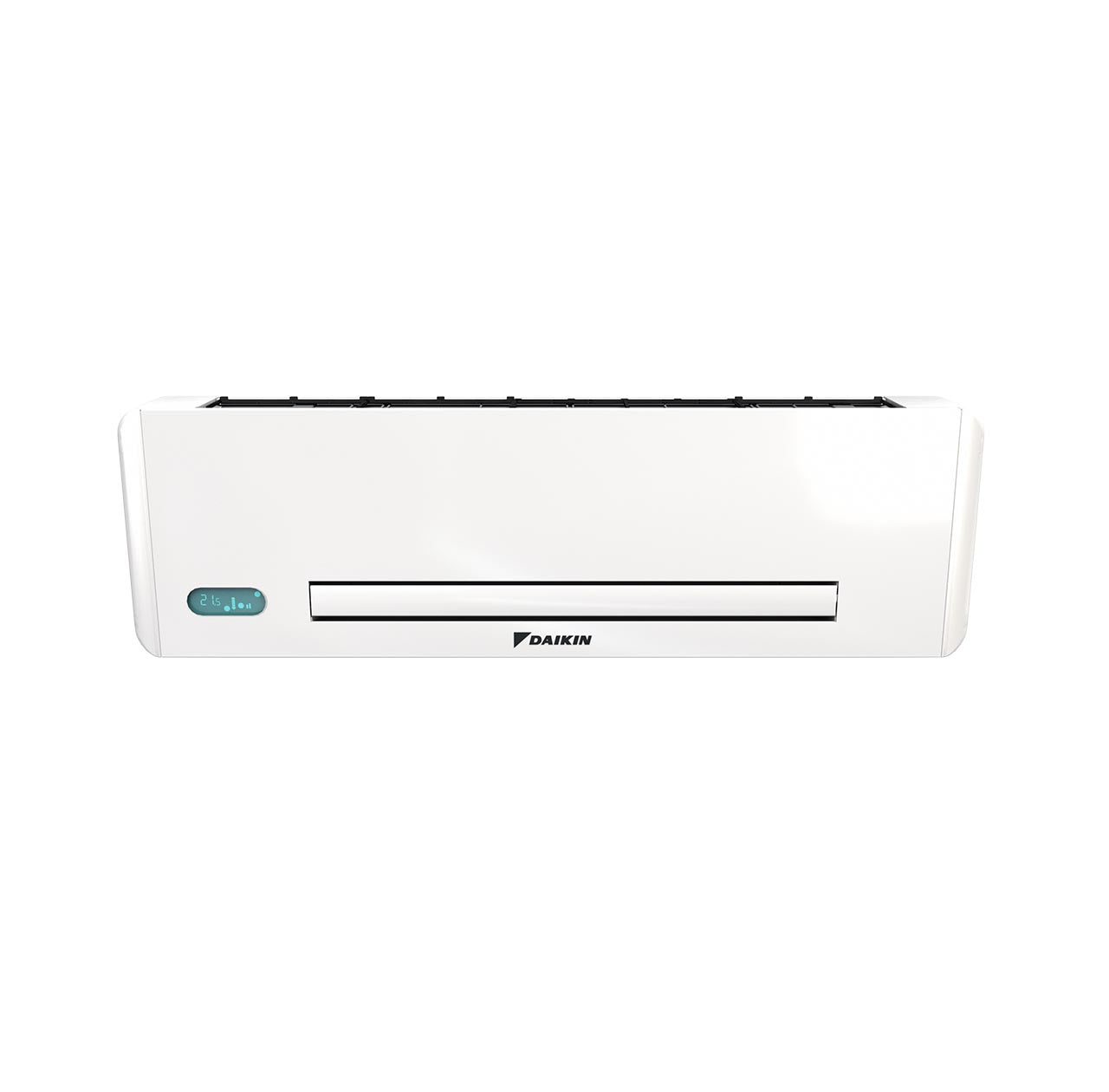

Heat pump convector

The optimised cooling and heating combination of efficiency, comfort and flexibility

Key Features

  • Wall mounted indoor unit
  • High heating/cooling capacity
  • Optimized for combination with heat pumps
  • Pipe connection on the left hand side
  • Includes remote control

Technical Specifications

Category Sub Category Parameter Condition Value Unit
Casing Colour RAL 9003
Material Sheet metal
Control systems Infrared remote control For FWXT-ATV3(C)(CL)
Integrated on indoor unit Yes
Cooling capacity 7/12°C Max. 1.61 kW
Med. 1.08 kW
Min. 0.62 kW
Current Maximum running current Cooling 0.18 A
Heating 0.18 A
Dimensions Packed unit Depth 210 mm
Height 490 mm
Width 1230 mm
Unit Depth 128 mm
Height 335 mm
Width 1102 mm
Electrical power consumption Max. 20 W
Standby 4 W
Fan speed Max. 1500.00 rpm
Med. 1100.00 rpm
Min. 680.00 rpm
Heat exchanger Charging Operating pressure 10 bar
Quantity 1
0.61
Heating capacity 45/40°C Max. 2.01 kW
Med. 1.36 kW
Min. 0.79 kW
Operation range Cooling Water side Min. 5 °C
Max. 18 °C
Heating Water side Min. 30 °C
Max. 85 °C
Indoor installation Ambient Min. 0 °CDB
Max. 45 °CDB
Packing Material Carton
Weight 1 kg
Power input Max. 0.02 kW
Med. 0.01 kW
Min. 0.01 kW
Power supply Frequency 50 Hz
Phase 1~
230
Sensible cooling capacity 7/12°C Max. 1.27 kW
Med. 0.86 kW
Min. 0.52 kW
Sound power level Max. 54.0 dBA
Med. 47 dBA
Min. 36 dBA
Water circuit Piping material COPPER
Pressure Heating Max. 10 bar
water flow rate Cooling 7/12°C Min. 110
Med. 190
Max. 280
Heating 45/40°C Min. 140
Med. 240
Max. 350
water pressure drop Cooling 7/12°C Min. 4.70
Med. 5.60
Max. 5.10
Heating 45/40°C Min. 4.81
Med. 6.30
Max. 7.20
3/4
Weight Packed unit 17 kg
Unit 16 kg
