- SKU: FWXV15ABTV3R

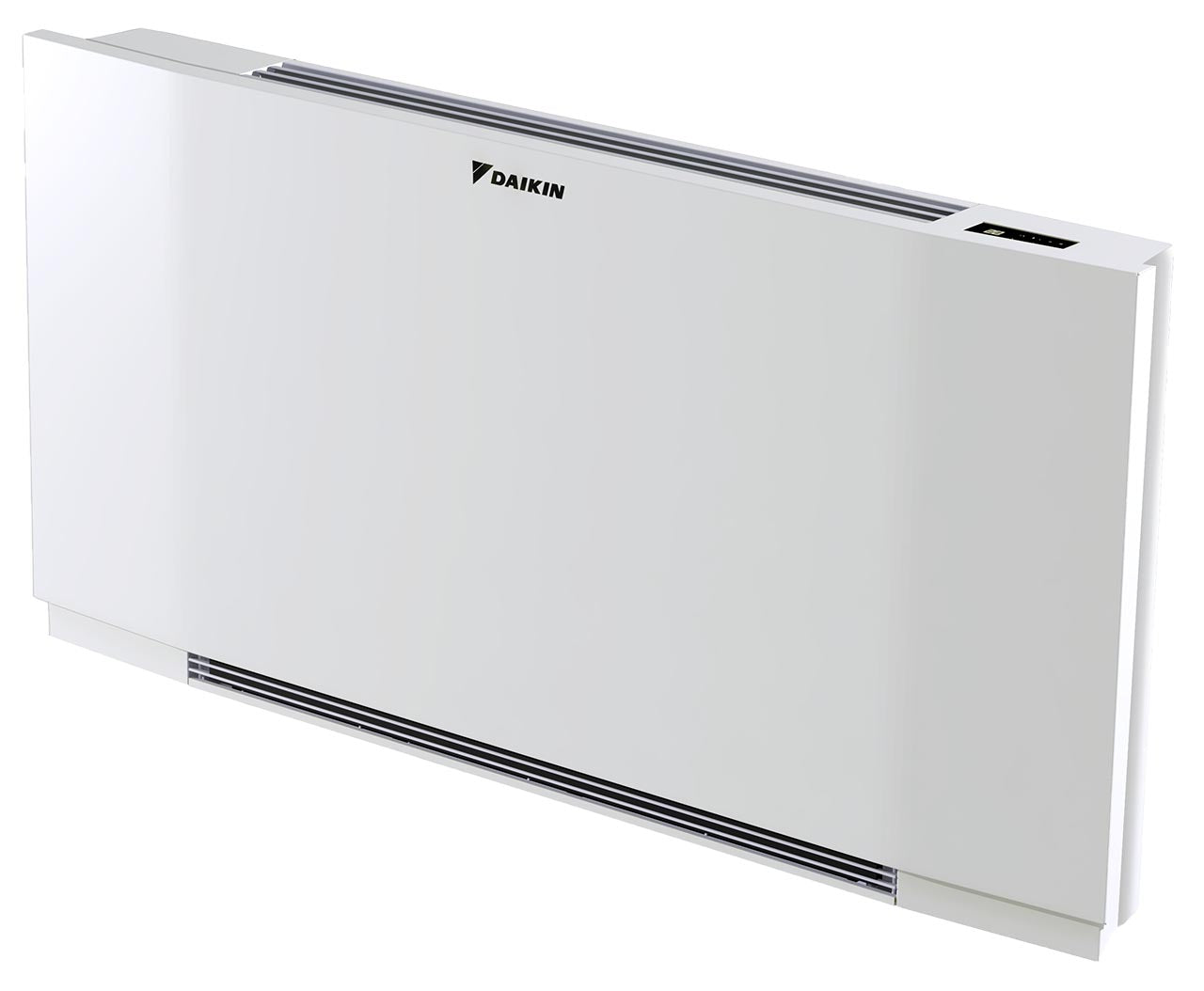

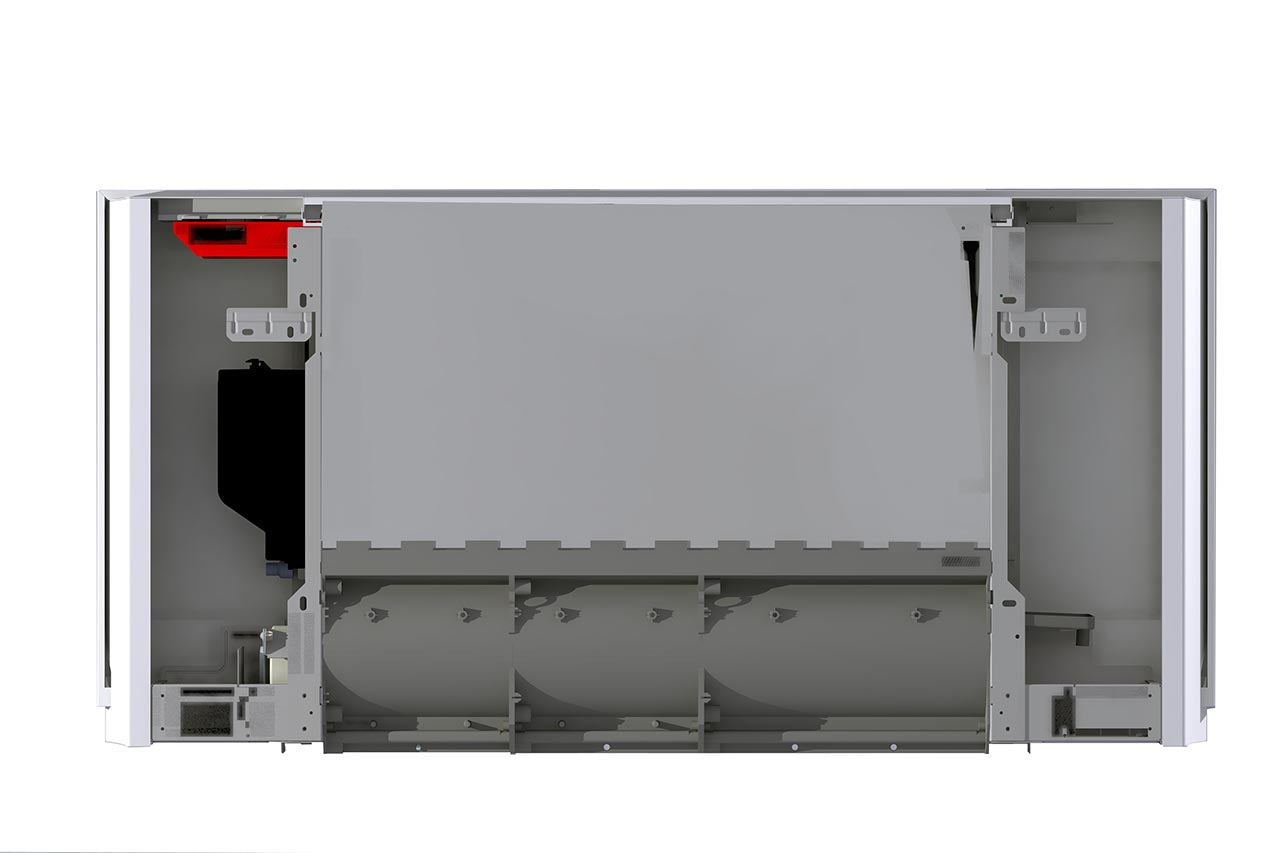

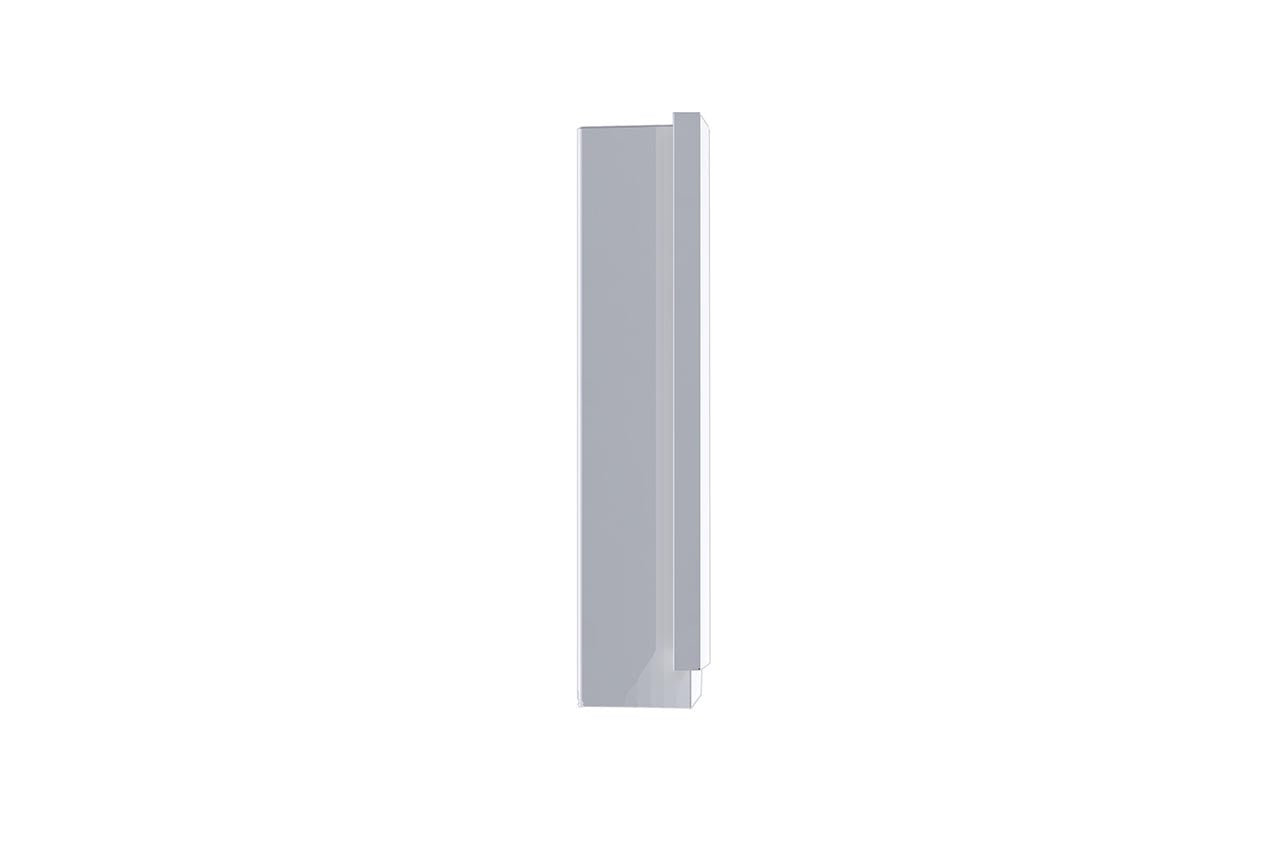

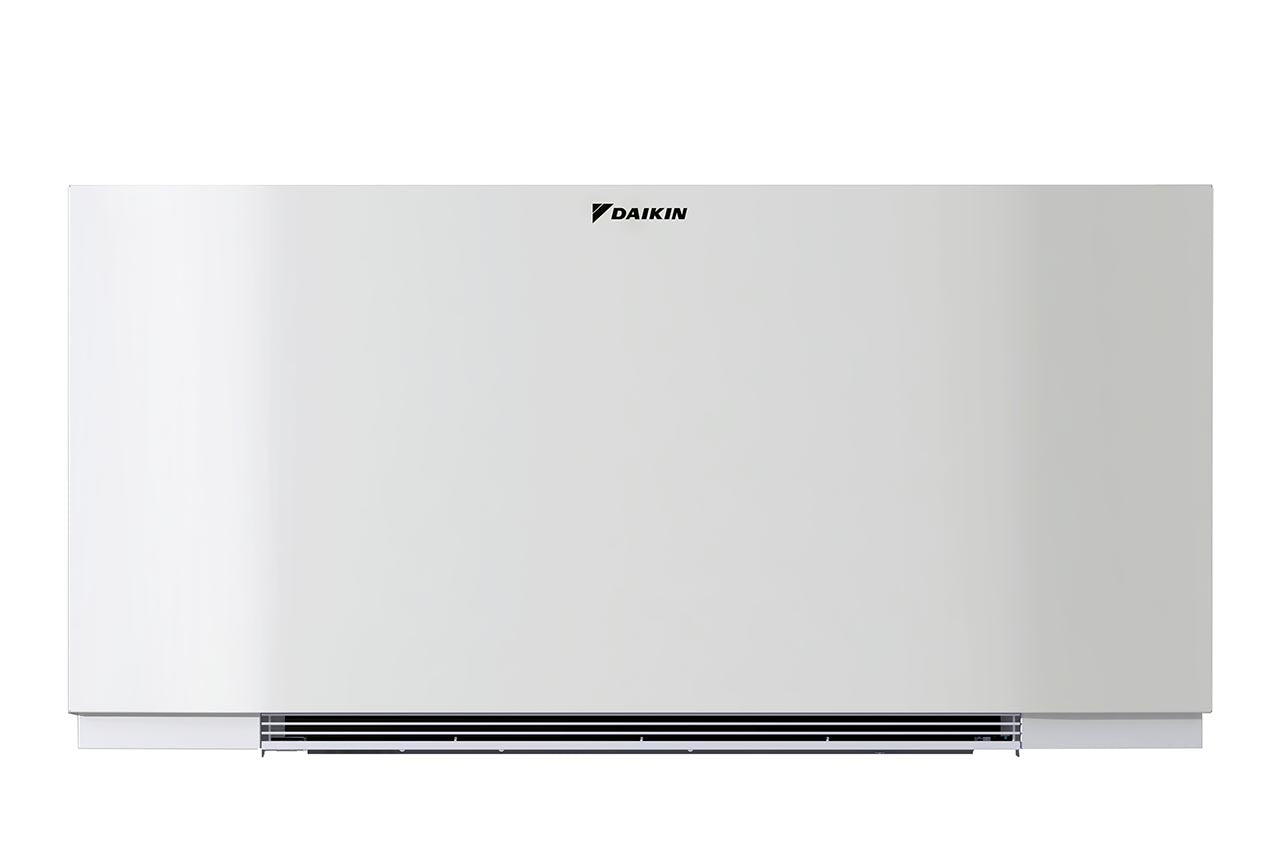

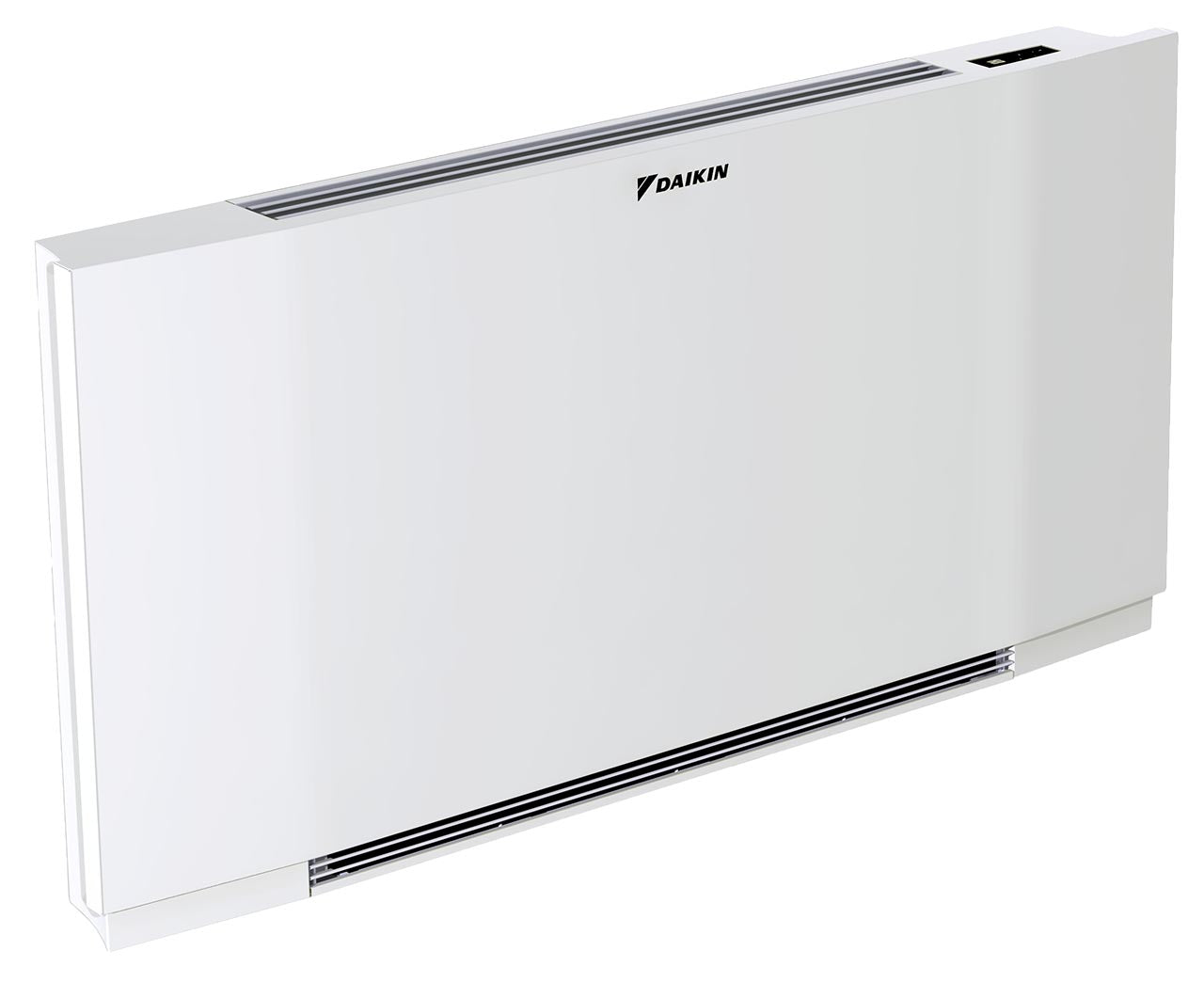

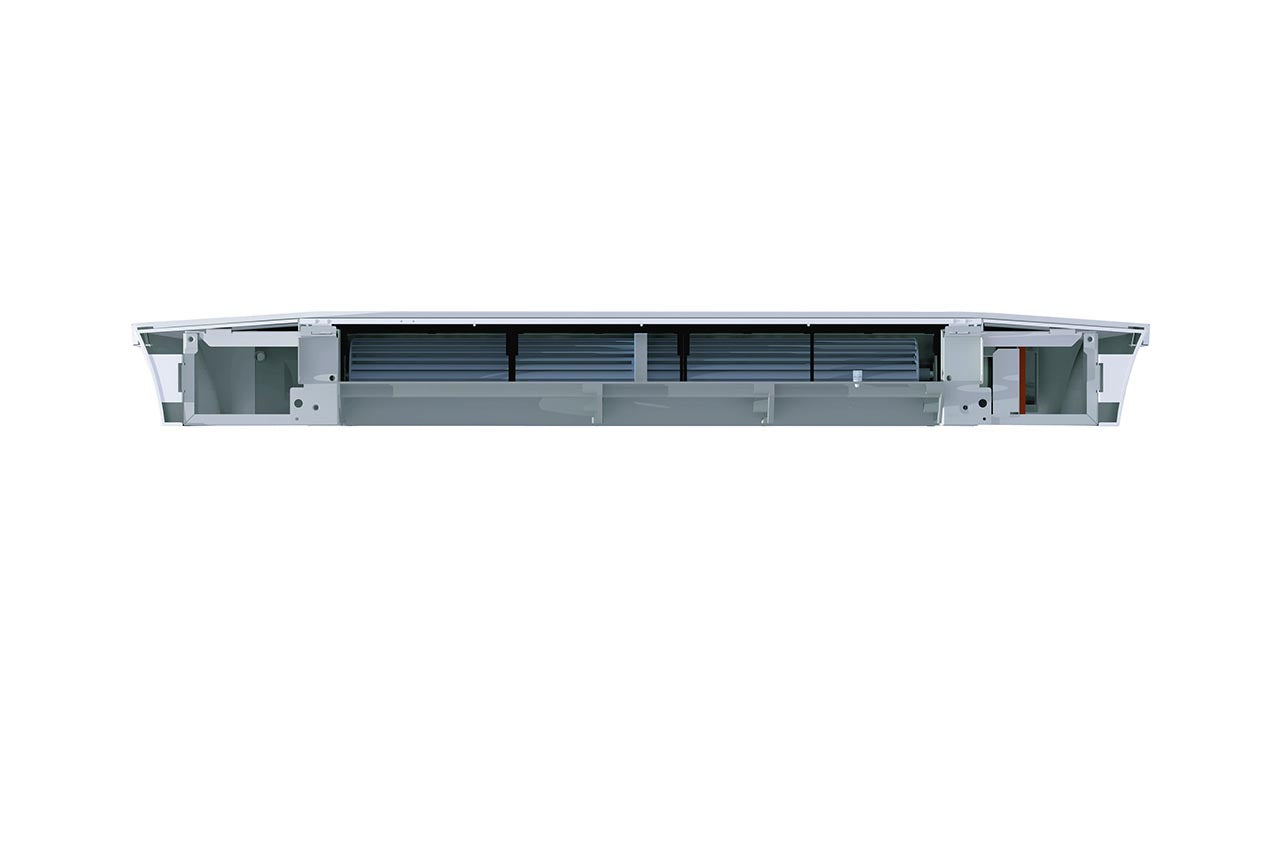

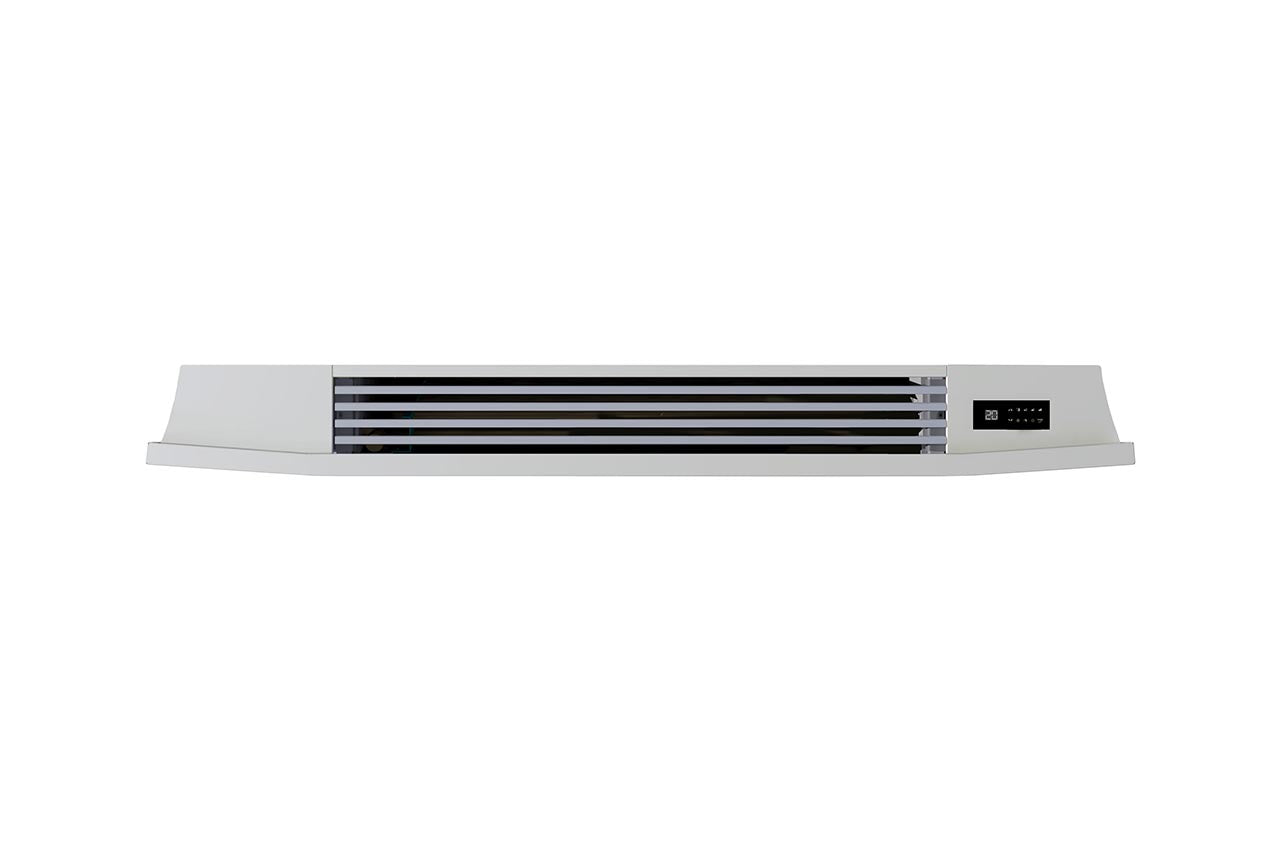

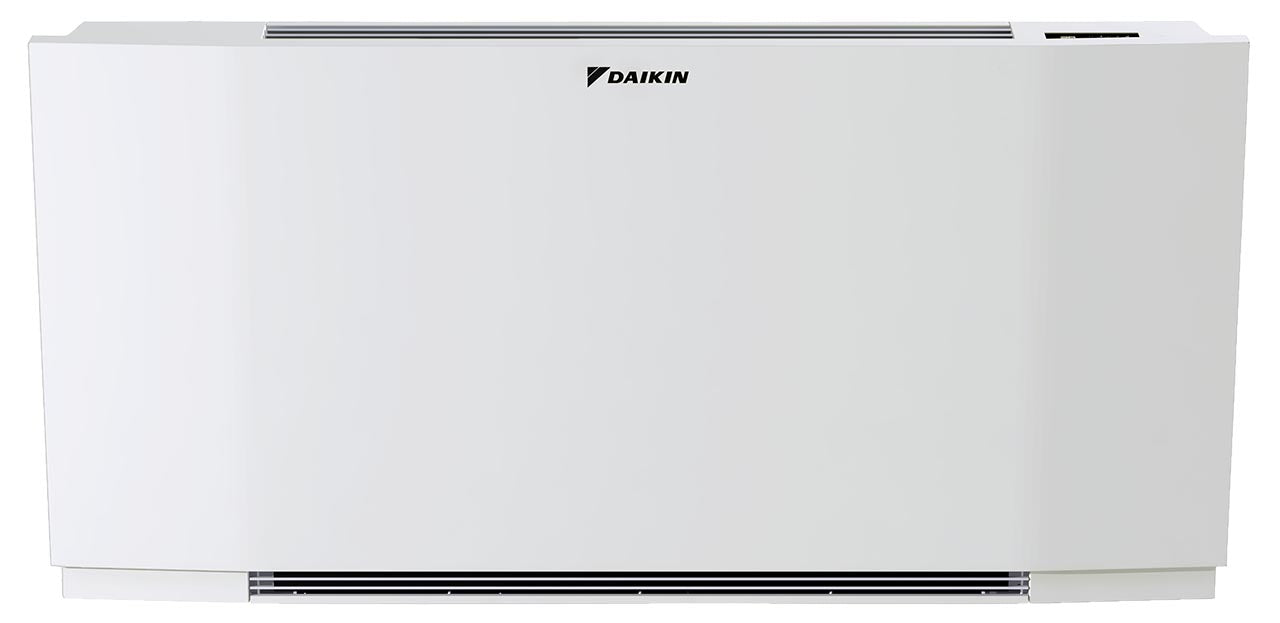

FWXV15ABTV3R - Floor Mounted HPC Size 15 Right Config
£616.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: FWXV15ABTV3R
Product Details
Heat pump convector
The optimised cooling and heating combination of efficiency, comfort and flexibility
Key Features
- High heating/cooling capacity
- Sound pressure 25 dB(A) at 1m
- Optimized for combination with heat pumps
- Pipe connection on the right hand side
- Includes indoor air quality control (optional)
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Colour | RAL 9003 | |||
| Material | Sheet metal | ||||
| Control systems | Infrared remote control | No | |||
| Integrated on indoor unit | Yes | ||||
| Cooling capacity | 7/12°C | Max. | 2.64 | kW | |
| Med. | 1.65 | kW | |||
| Min. | 1.10 | kW | |||
| Current | Maximum running current | Cooling | 0.21 | A | |
| Heating | 0.21 | A | |||
| Dimensions | Packed unit | Depth | 210 | mm | |
| Height | 690 | mm | |||
| Width | 1430 | mm | |||
| Unit | Depth | 135 | mm | ||
| Height | 601 | mm | |||
| Width | 1199 | mm | |||
| Electrical power consumption | Max. | 25 | W | ||
| Standby | 4 | W | |||
| Fan speed | Max. | 1700.00 | rpm | ||
| Med. | 1220.00 | rpm | |||
| Min. | 720.00 | rpm | |||
| Heat exchanger | Charging | Operating pressure | 10 | bar | |
| Quantity | 1 | ||||
| 1.1 | |||||
| Heating capacity | 45/40°C | Max. | 2.86 | kW | |
| Med. | 1.83 | kW | |||
| Min. | 1.12 | kW | |||
| Operation range | Cooling | Water side | Min. | 5 | °C |
| Max. | 18 | °C | |||
| Heating | Water side | Min. | 30 | °C | |
| Max. | 85 | °C | |||
| Indoor installation | Ambient | Min. | 0 | °CDB | |
| Max. | 45 | °CDB | |||
| Packing | Material | Carton | |||
| Weight | 1 | kg | |||
| Power input | Max. | 0.03 | kW | ||
| Med. | 0.01 | kW | |||
| Min. | 0.01 | kW | |||
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 230 | |||||
| Sensible cooling capacity | 7/12°C | Max. | 1.91 | kW | |
| Med. | 1.15 | kW | |||
| Min. | 0.82 | kW | |||
| Sound power level | Max. | 57.0 | dBA | ||
| Med. | 49 | dBA | |||
| Min. | 42 | dBA | |||
| Water circuit | Piping material | COPPER | |||
| Pressure | Heating | Max. | 10 | bar | |
| water flow rate | Cooling | 7/12°C | Min. | 190.00 | |
| Med. | 280.00 | ||||
| Max. | 450.00 | ||||
| Heating | 45/40°C | Min. | 200.00 | ||
| Med. | 320.00 | ||||
| Max. | 500.00 | ||||
| water pressure drop | Cooling | 7/12°C | Min. | 9.00 | |
| Med. | 14.00 | ||||
| Max. | 23.00 | ||||
| Heating | 45/40°C | Min. | 9.00 | ||
| Med. | 14.00 | ||||
| Max. | 23.00 | ||||
| 3/4 | |||||
| Weight | Packed unit | 24 | kg | ||
| Unit | 23 | kg |
