- SKU: FTXA50CS
SB.FTXA50CS/RXA8/1 - Stylish Silver - 5.0kW - 1ph - Max. 30m
£735.00
Shipping calculated at checkout.
Price excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty
Couldn't load pickup availability
Description
Description
Shipping & Returns
Shipping & Returns
Product Code: FTXA50CS
SB.FTXA50CS/RXA8/1 - Stylish Silver - 5.0kW - 1ph - Max. 30m
Searched Code: FTXA50CS
Searched Code: FTXA50CS
Product Details

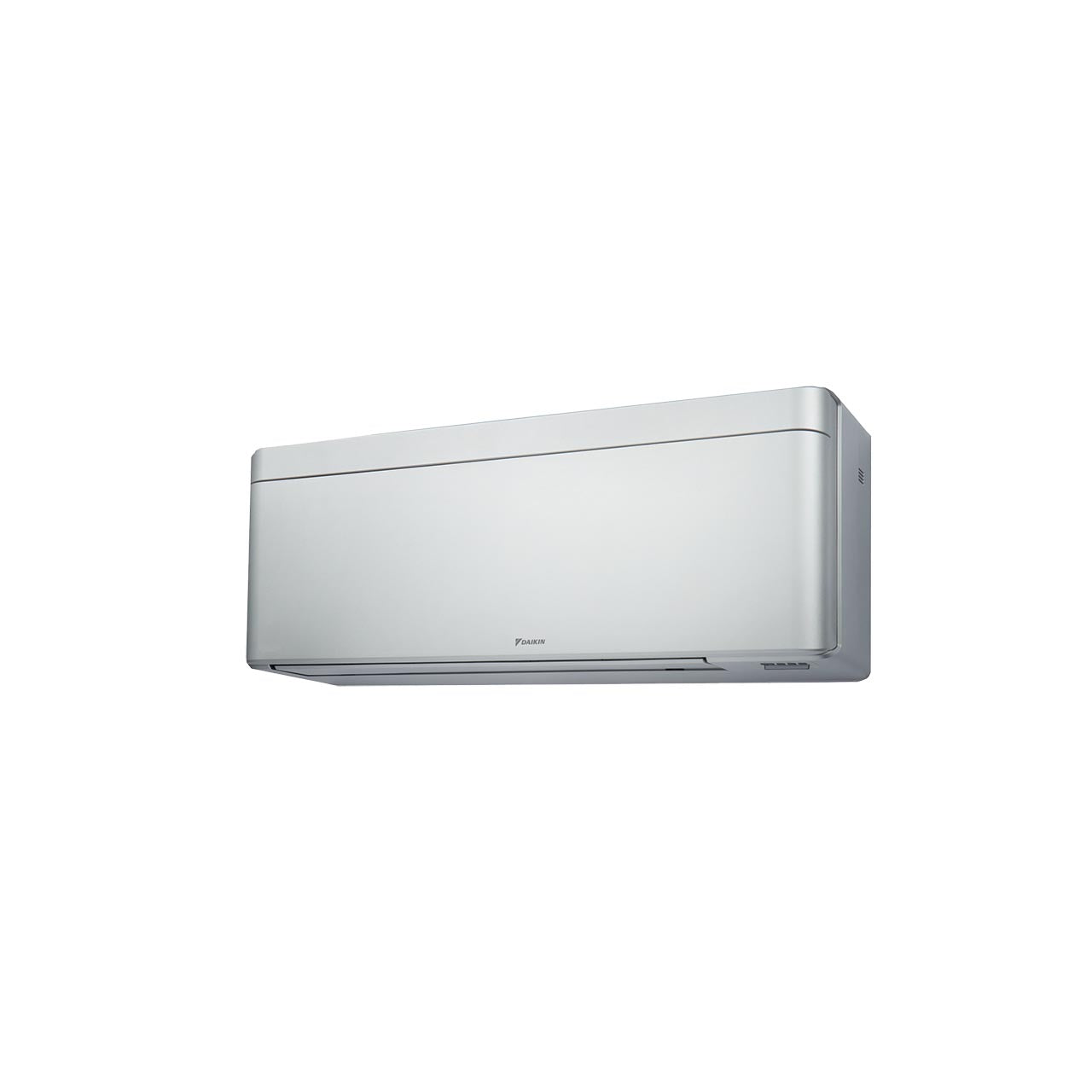

Wall mounted unit
Where innovation meets creativity
Energy Labels
Technical Specifications
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Compressor | Type | Hermetically sealed swing compressor | |||
| Dimensions | Unit | Depth | 401 | mm | |
| Height | 734 | mm | |||
| Width | 954 | mm | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Operation range | Cooling | Ambient | Min. | -10 | °CDB |
| Max. | 46 | °CDB | |||
| Heating | Ambient | Min. | -15 | °CWB | |
| Max. | 18 | °CWB | |||
| Piping connections | Additional refrigerant charge | 0.02 (for piping length exceeding 10m) | kg/m | ||
| Level difference | IU | OU | Max. | 20 | |
| Piping length | OU | IU | Max. | 30 | |
| Power supply | Frequency | 50 | Hz | ||
| Phase | 1~ | ||||
| 220-240 | |||||
| Refrigerant | Charge | 1.1 | kg | ||
| 0.75 | |||||
| GWP | 675 | ||||
| Type | R-32 | ||||
| Sound pressure level | Cooling | Nom. | 48 | dBA | |
| Heating | Nom. | 48 | dBA | ||
| Weight | Unit | 49 | kg |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Casing | Colour | Silver | |||
| Control systems | Infrared remote control | ARC466A85 | |||
| Wired remote control | BRC073A1 | ||||
| Dimensions | Unit | Depth | 189 | mm | |
| Height | 295 | mm | |||
| Width | 798 | mm | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Fan | Air flow rate | Cooling | High | 13.5 | m³/min |
| Medium | 10.4 | m³/min | |||
| Low | 7.6 | m³/min | |||
| Silent operation | 5.2 | m³/min | |||
| Heating | High | 15.1 | m³/min | ||
| Medium | 11.1 | m³/min | |||
| Low | 8.2 | m³/min | |||
| Silent operation | 5.7 | m³/min | |||
| Piping connections | Drain | 18 | |||
| Gas | OD | 12.70 | mm | ||
| Liquid | OD | 6.35 | mm | ||
| Power input | Cooling | Nom. | 0.030 | kW | |
| Heating | Nom. | 0.039 | kW | ||
| Power supply | Frequency | 50 | Hz | ||
| Name | V1 | ||||
| Phase | 1~ | ||||
| 220-240 | V | ||||
| Refrigerant | GWP | 675.0 | |||
| Sound power level | Cooling | 60 | dBA | ||
| Sound pressure level | Cooling | High | 46 | dBA | |
| Low | 31 | dBA | |||
| Medium | 39 | dBA | |||
| Silent operation | 24 | dBA | |||
| Heating | High | 46 | dBA | ||
| Low | 33 | dBA | |||
| Medium | 42 | dBA | |||
| Silent operation | 24 | dBA | |||
| Weight | Unit | 11.5 | kg |
| Category | Sub Category | Parameter | Condition | Value | Unit |
|---|---|---|---|---|---|
| Cooling capacity | Max. | 5.3 | kW | ||
| Min. | 1.7 | kW | |||
| Nom. | 5 | kW | |||
| Energy Efficiency Range | A+++ ~ D | ||||
| Heating capacity | Max. | 6.5 | kW | ||
| Min. | 1.7 | kW | |||
| Nom. | 5.8 | kW | |||
| Nominal efficiency | Annual energy consumption | 679 | kWh | ||
| COP | 4 | ||||
| EER | 3.68 | ||||
| Energy labeling Directive | Cooling | A | |||
| Heating | A | ||||
| Space cooling | Annual energy consumption | 239 | kWh/a | ||
| Capacity | Pdesign | 5 | kW | ||
| Energy efficiency class | A++ | ||||
| SEER | 7.33 | ||||
| Space heating (Average climate) | Annual energy consumption | 1218 | kWh/a | ||
| Capacity | Pdesign | 4 | kW | ||
| Energy efficiency class | A++ | ||||
| Pdh Heating capacity at -10° | 3.19 | kW | |||
| SCOP/A | 4.6 |
