• SB.FTXM50A/RZAGB/1 - Mini Sky Air - 5.0kW - 1ph - Max. 50m
SB.FTXM50A/RZAGB/1 - Mini Sky Air - 5.0kW - 1ph - Max. 50m FTXM50A
SB.FTXM50A/RZAGB/1 - Mini Sky Air - 5.0kW - 1ph - Max. 50m FTXM50A
  • SKU: FTXM50A

SB.FTXM50A/RZAGB/1 - Mini Sky Air - 5.0kW - 1ph - Max. 50m

£431.00

Shipping calculated at checkout.

Price excludes VAT. VAT will be added at checkout.

Free Shipping on Orders Over £500

Easy 30-day Returns

Manufacturer’s Warranty

Select The Options Above

Product Code: FTXM50A

SB.FTXM50A/RZAGB/1 - Mini Sky Air - 5.0kW - 1ph - Max. 50m
Searched Code: FTXM50A

Product Details

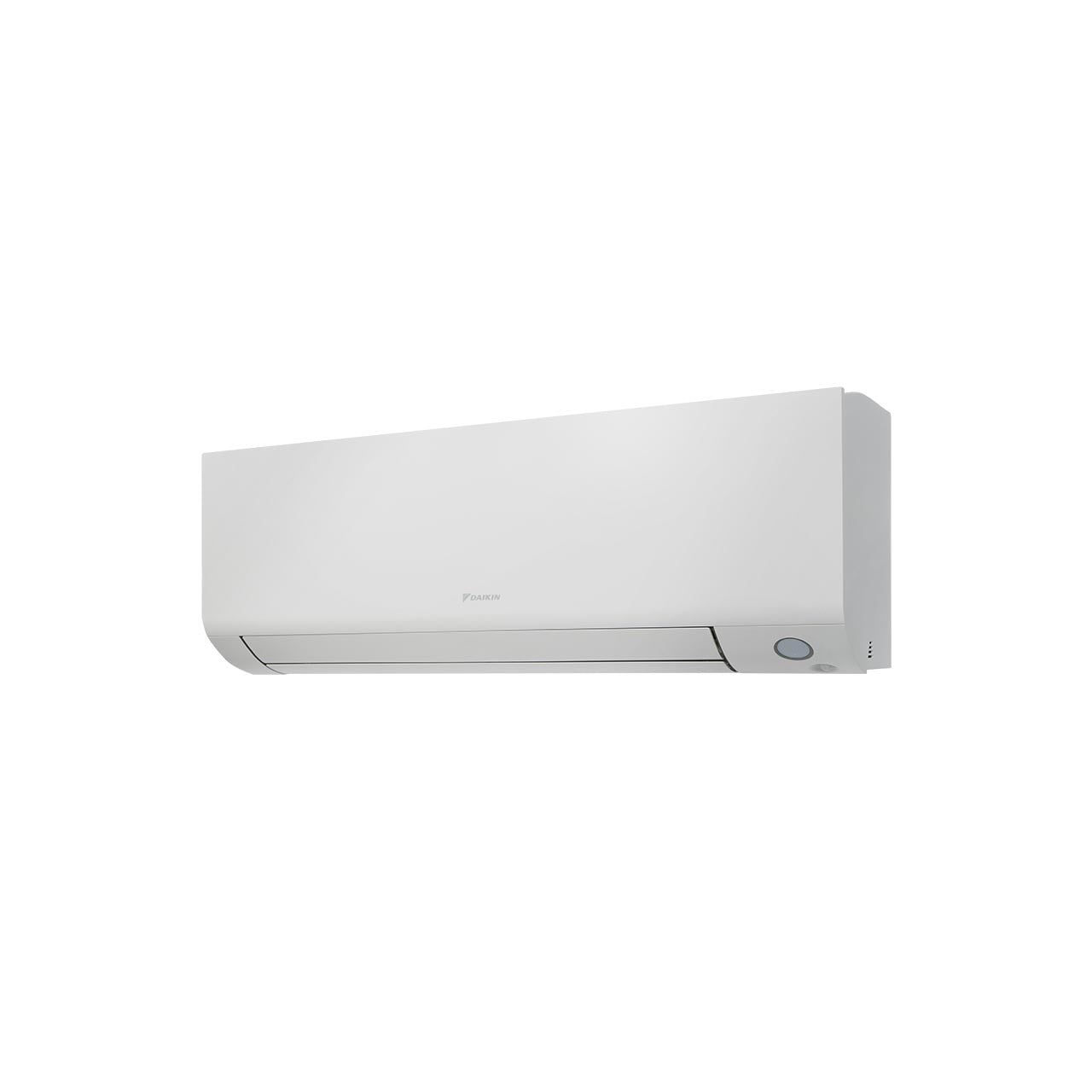

Wall mounted unit Sky Air Alpha-series

Attractive, wall mounted design with perfect indoor air quality Industry leading technology for commercial applications and even for technical rooms

Energy Labels

Technical Specifications

Category Sub Category Parameter Condition Value Unit
Casing Colour White
Control systems Infrared remote control ARC466A86
Wired remote control BRC073A1
Dimensions Unit Depth 252 mm
Height 298 mm
Width 804 mm
Fan Air flow rate Cooling High 12.7 m³/min
Medium 10.4 m³/min
Low 7.8 m³/min
Silent operation 5.9 m³/min
Heating High 14.5 m³/min
Medium 11.5 m³/min
Low 8.6 m³/min
Silent operation 6.9 m³/min
Piping connections Drain 16
Gas OD 12.7 mm
Liquid OD 6.4 mm
Power input Cooling Nom. 0.034 kW
Heating Nom. 0.036 kW
Power supply Frequency 50 Hz
Name V1
Phase 1~
220-240 V
Refrigerant GWP 675
Sound power level Cooling 60 dBA
Heating 60 dBA
Sound pressure level Cooling High 46 dBA
Low 33 dBA
Medium 40 dBA
Silent operation 27 dBA
Heating High 46 dBA
Low 34 dBA
Medium 41 dBA
Silent operation 31 dBA
Weight Unit 11.5 kg
Category Sub Category Parameter Condition Value Unit
Compressor Type Hermetically sealed swing compressor
Dimensions Unit Depth 373 mm
Height 734 mm
Width 870 mm
Operation range Cooling Ambient Min. -20 °CDB
Max. 52 °CDB
Heating Ambient Min. -21 °CWB
Max. 18 °CWB
Piping connections Additional refrigerant charge 0.02 (for piping length exceeding 30m) kg/m
Gas OD 12.7 mm
Level difference IU OU Max. 30
Liquid OD 6.35 mm
Piping length OU IU Max. 50
Power supply Frequency 50 Hz
Phase 1~
220-240
Refrigerant Charge 1.55 kg
1.05
GWP 675
Type R-32
Sound power level Cooling 63 dBA
Heating 63 dBA
Sound pressure level Cooling Nom. 49 dBA
Heating Nom. 49 dBA
Weight Unit 52 kg
Category Sub Category Parameter Condition Value Unit
Cooling capacity Max. 6 kW
Min. 1.7 kW
Nom. 5 kW
Heating capacity Max. 6.5 kW
Min. 1.5 kW
Nom. 6 kW
Nominal efficiency Annual energy consumption 625 kWh
COP 4
EER 4
Energy labeling Directive Cooling A
Heating A
Space cooling Annual energy consumption 236 kWh/a
Capacity Pdesign 5 kW
Energy efficiency class A++
SEER 7.41
Space heating (Average climate) Annual energy consumption 1369 kWh/a
Capacity Pdesign 4.5 kW
Energy efficiency class A++
Pdh Heating capacity at -10° 3.49 kW
SCOP/A 4.6
