Sheffield Pro Compact Ground Mount – 460W Plug-In Solar Kit
Trade Quantities Available Soon
Our Sheffield Pro trade packs of 10, 20 and 50 units will be available to purchase soon.
Need a single unit before then? You can place an individual trial order through our IPPS website.
Purchase an Individual Trial UnitPrice excludes VAT. VAT will be added at checkout.
Free Shipping on Orders Over £500
Easy 30-day Returns
Manufacturer’s Warranty

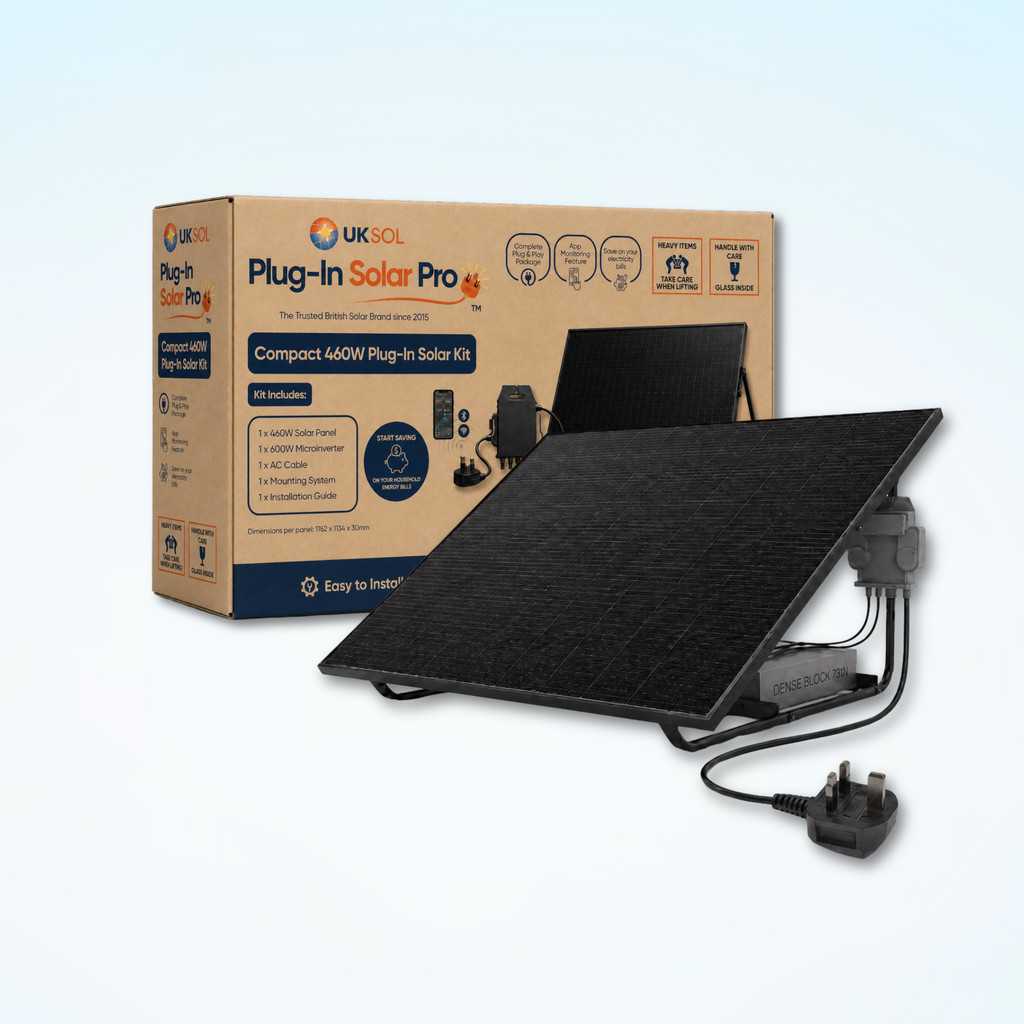

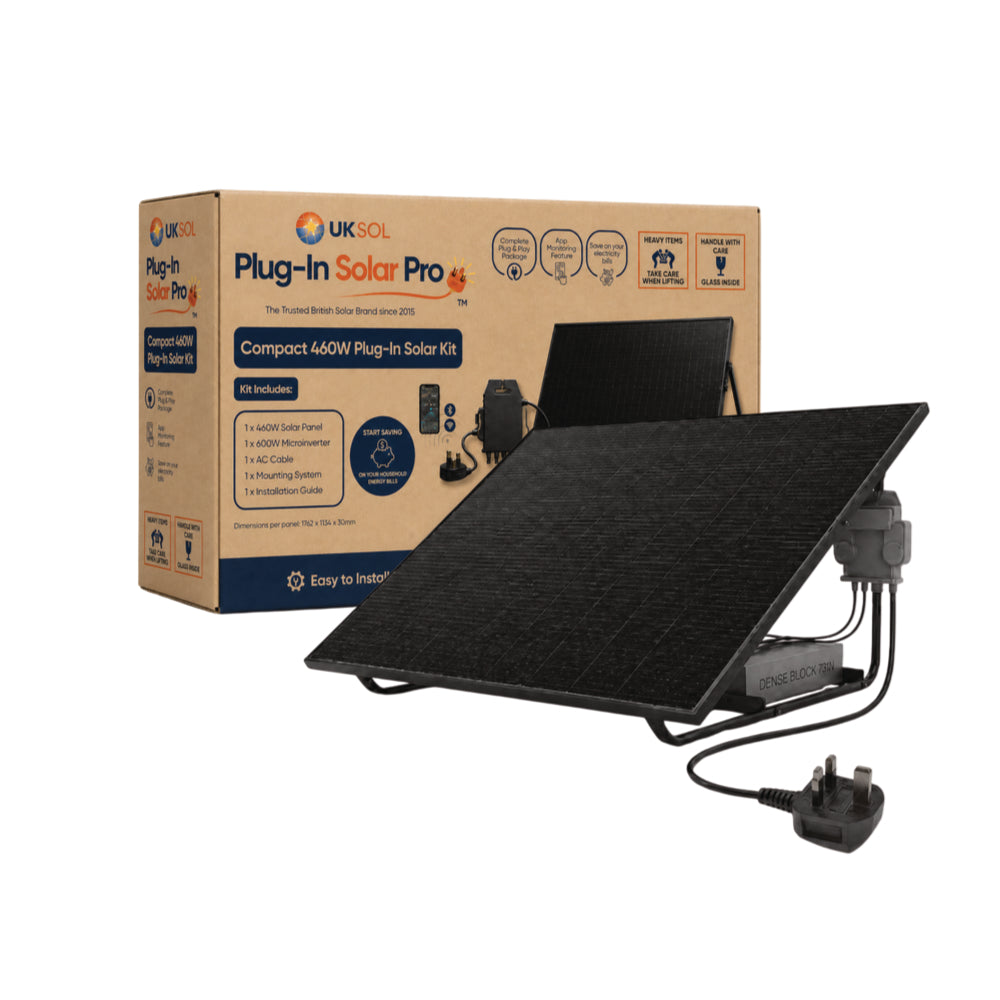

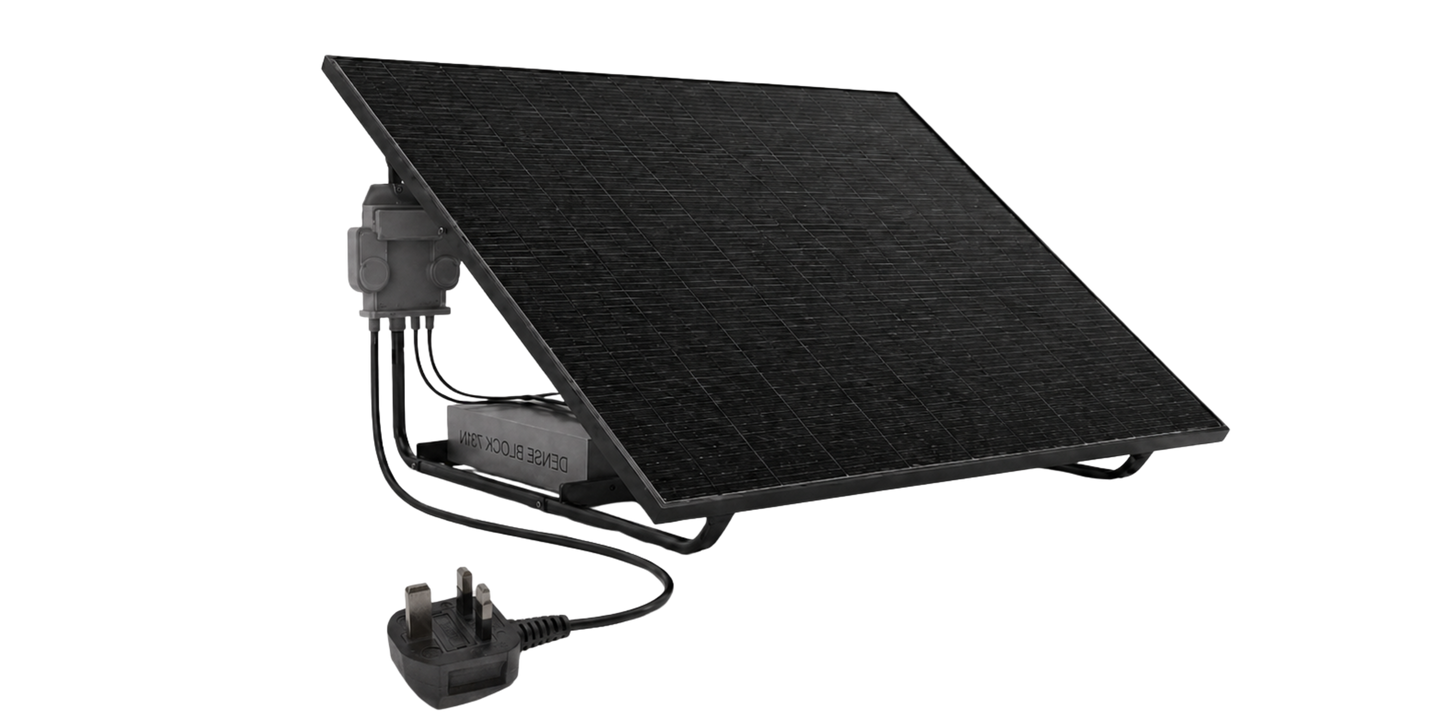

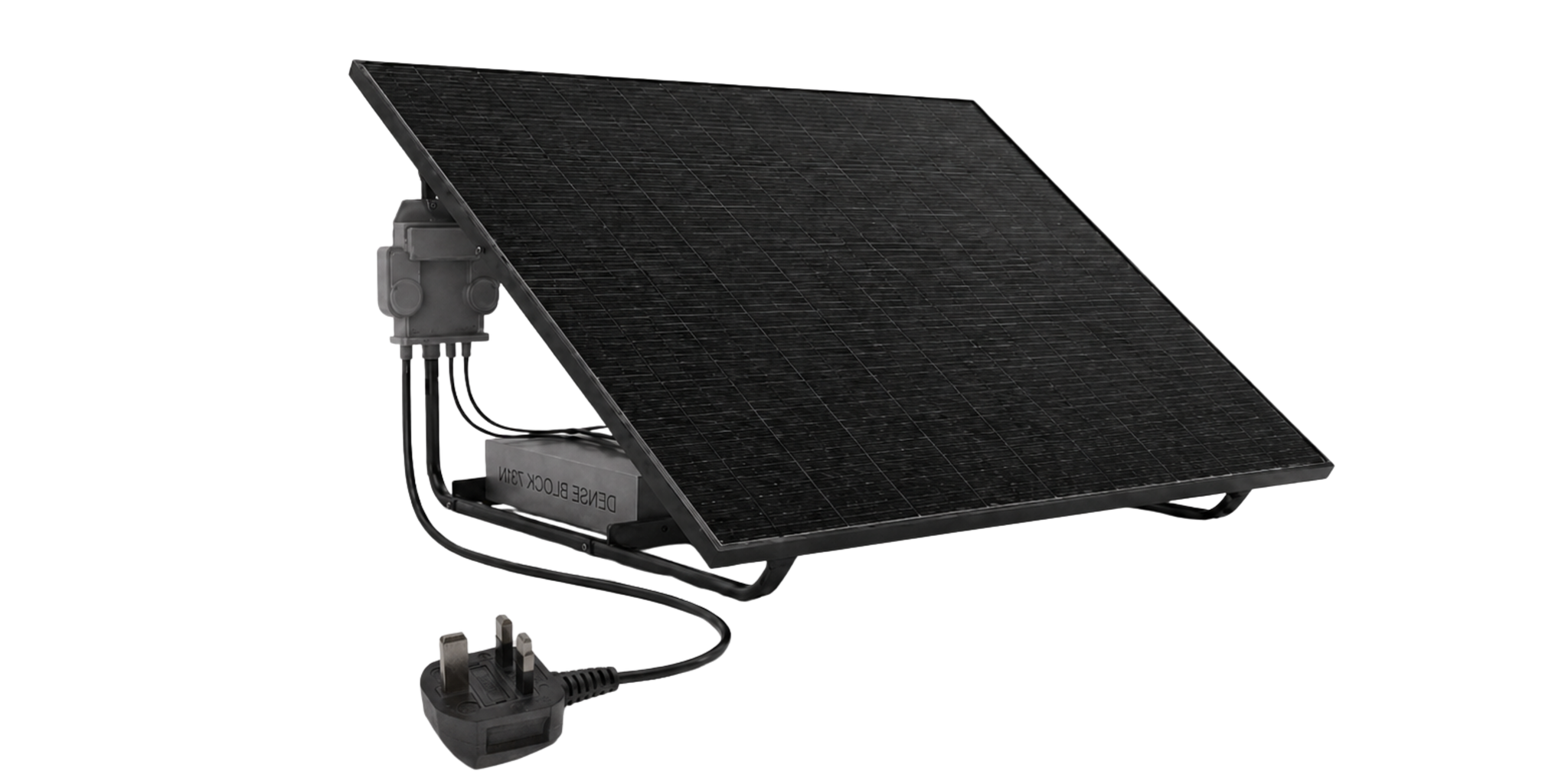

The Sheffield Pro Compact Ground Mount is a complete 460W plug-in solar package designed to make generating your own clean electricity simple and convenient.
Featuring a high-efficiency 460W all-black TOPCon N-Type bifacial solar panel, an 800W smart microinverter and a Sheffield-made ground mounting frame, the system provides a compact solution for suitable outdoor spaces.
Simply position the panel in a suitable south-facing, unshaded location, connect the system in accordance with the supplied installation instructions, and monitor solar generation from your smartphone.
What’s Included
- 1 × 460W high-efficiency all-black solar panel
- 1 × 800W smart microinverter
- Sheffield ground mounting frame
- Wi-Fi & Bluetooth monitoring capability
- Plug-in connection equipment
- Warranty and Certification document
Key Features
- 460W TOPCon N-Type monocrystalline solar panel
- 23.0% module efficiency
- Bifacial glass-glass module
- 800W smart microinverter
- 2 independent MPPTs
- Built-in Wi-Fi & Bluetooth
- Smartphone performance monitoring
- IP67-rated microinverter
- Battery storage compatible
- Anti-islanding protection
- 10-year British panel warranty
- Ground-mount design
- Kit assembled in Great Britain
Panel Specifications
Maximum Power: 460W
Module Efficiency: 23.0%
Cell Type: TOPCon N-Type Monocrystalline Silicon
Cell Configuration: 96 cells
Dimensions: 1762 × 1134 × 30mm
Weight: 25.5kg
Frame: 30mm anodized aluminium alloy
Junction Box: IP68 rated
Maximum System Voltage: 1500V DC
Maximum Fuse Rating: 35A
Bifaciality: Up to 80%

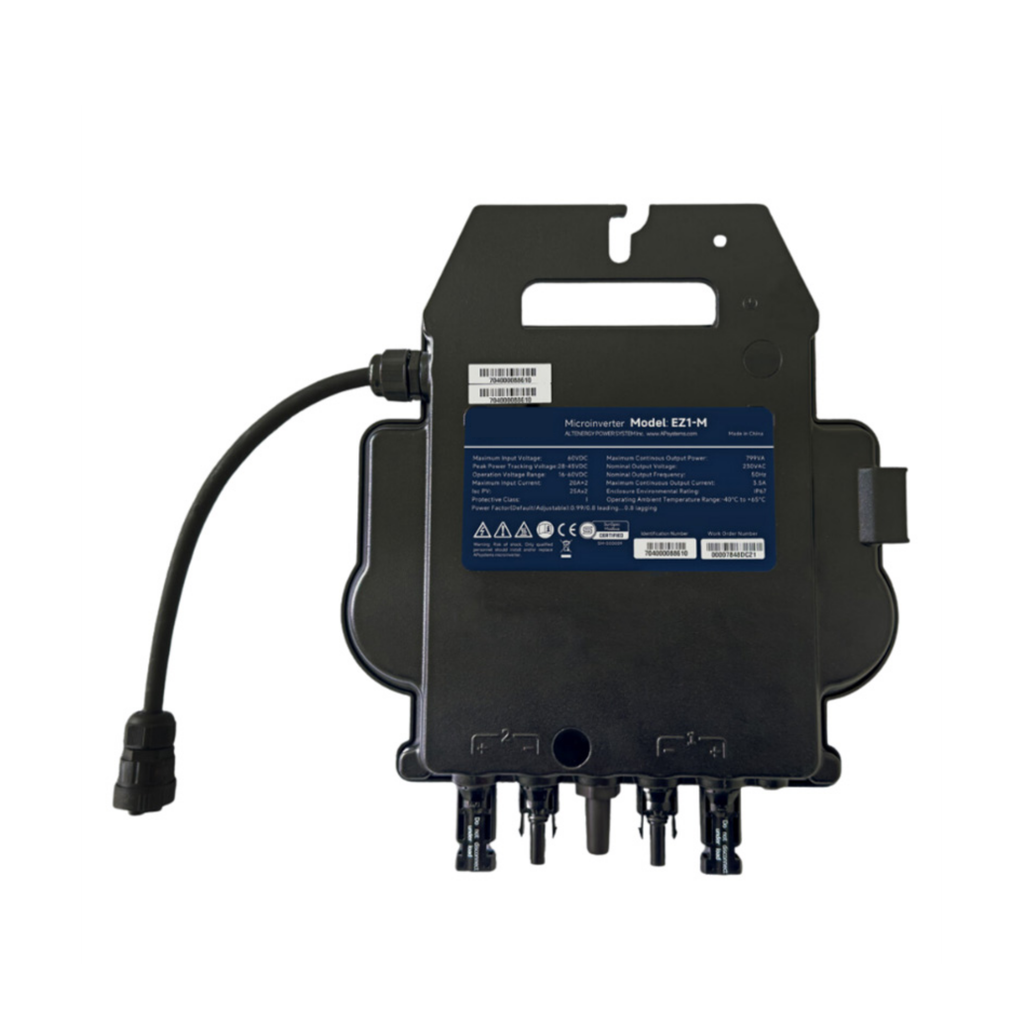

Microinverter Specifications
Microinverter: 800W Smart Microinverter
Maximum Continuous Output: 799VA
MPPT Channels: 2 independent MPPTs
Recommended Module Range: 300W–730W
Peak Efficiency: 96.7%
Communication: Built-in Wi-Fi & Bluetooth
Protection Rating: IP67
AC Output Voltage: 230V
AC Output Frequency: 50Hz
Maximum Output Current: 3.5A
Monitoring: Smartphone monitoring app
Warranty: 10-year British warranty
Click here for technical datasheet
Not suitable for use on balconies. Installation must follow the supplied instructions and applicable electrical regulations.
