- SKU: ISUK-ZAPTEC-PRO-BP-Q1
Zaptec Pro (MID) 22kW Commercial EV Charger + Backplate
per unit ex VAT
per unit inc VAT
FREE UK DELIVERY
Enter your postcode to check installation availability.
Couldn't load pickup availability
FREE UK delivery. Target delivery 3–5 working days, subject to stock availability and postcode. Tracking will be provided following dispatch.
Easy 30-day Returns
Manufacturer’s Warranty
Product details
Description

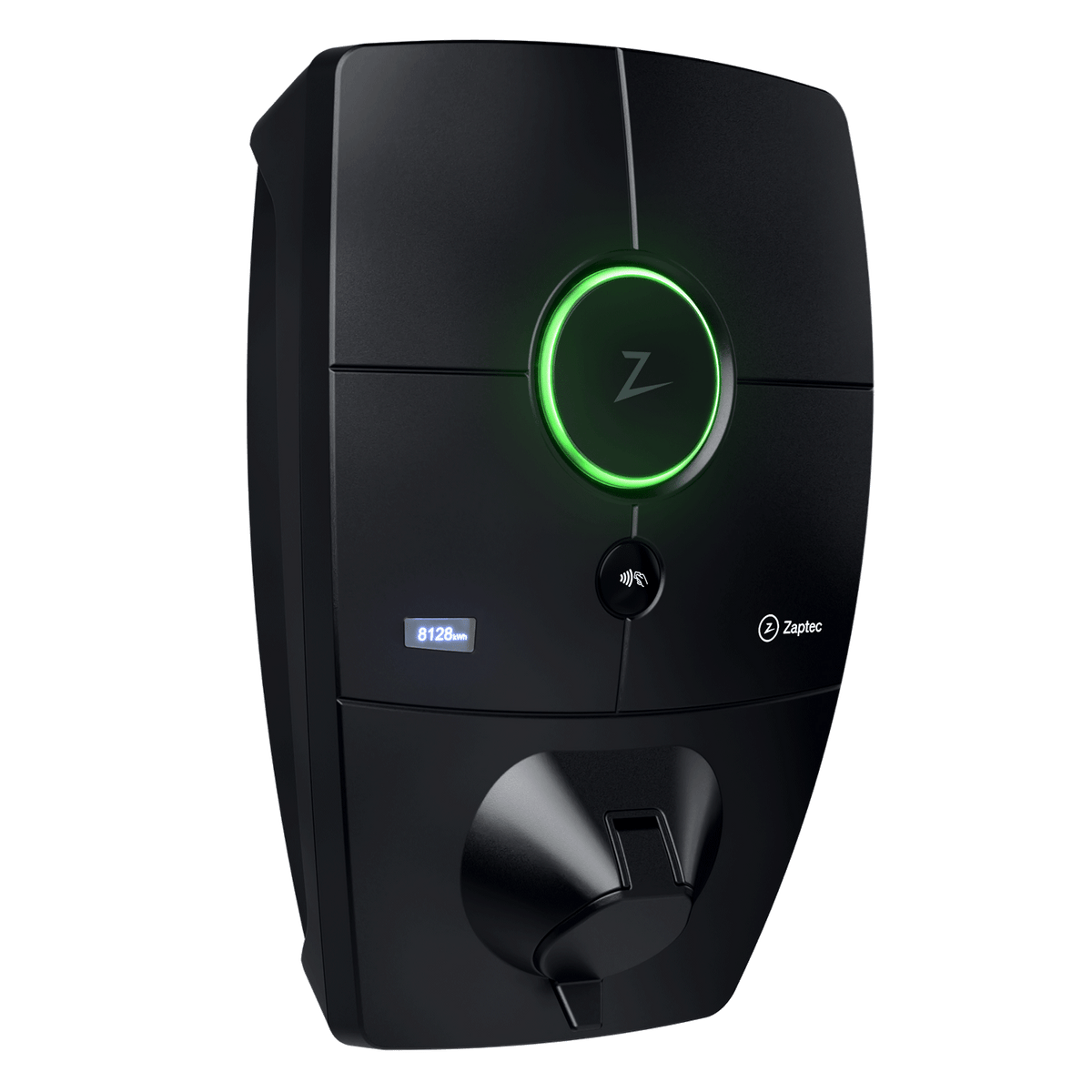

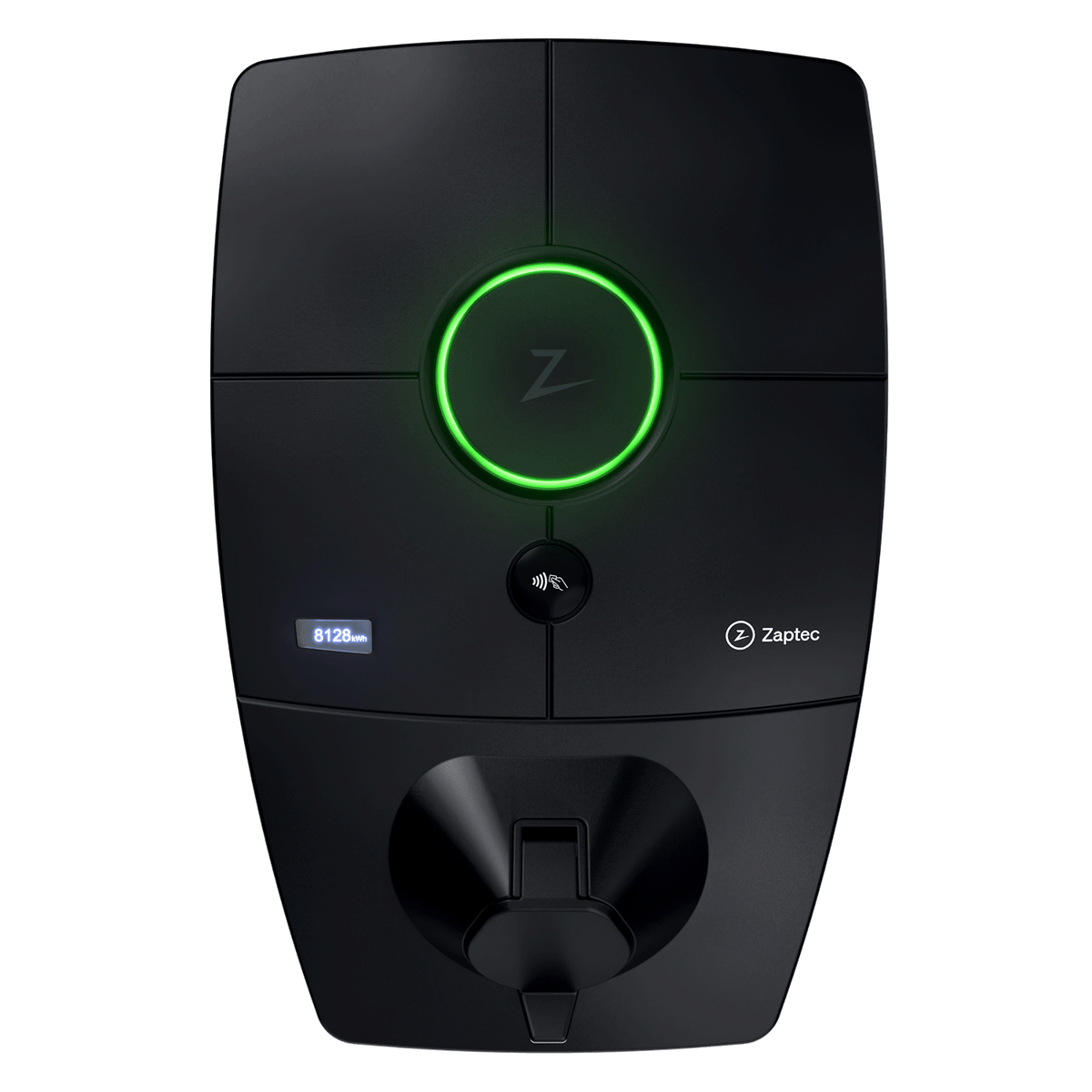

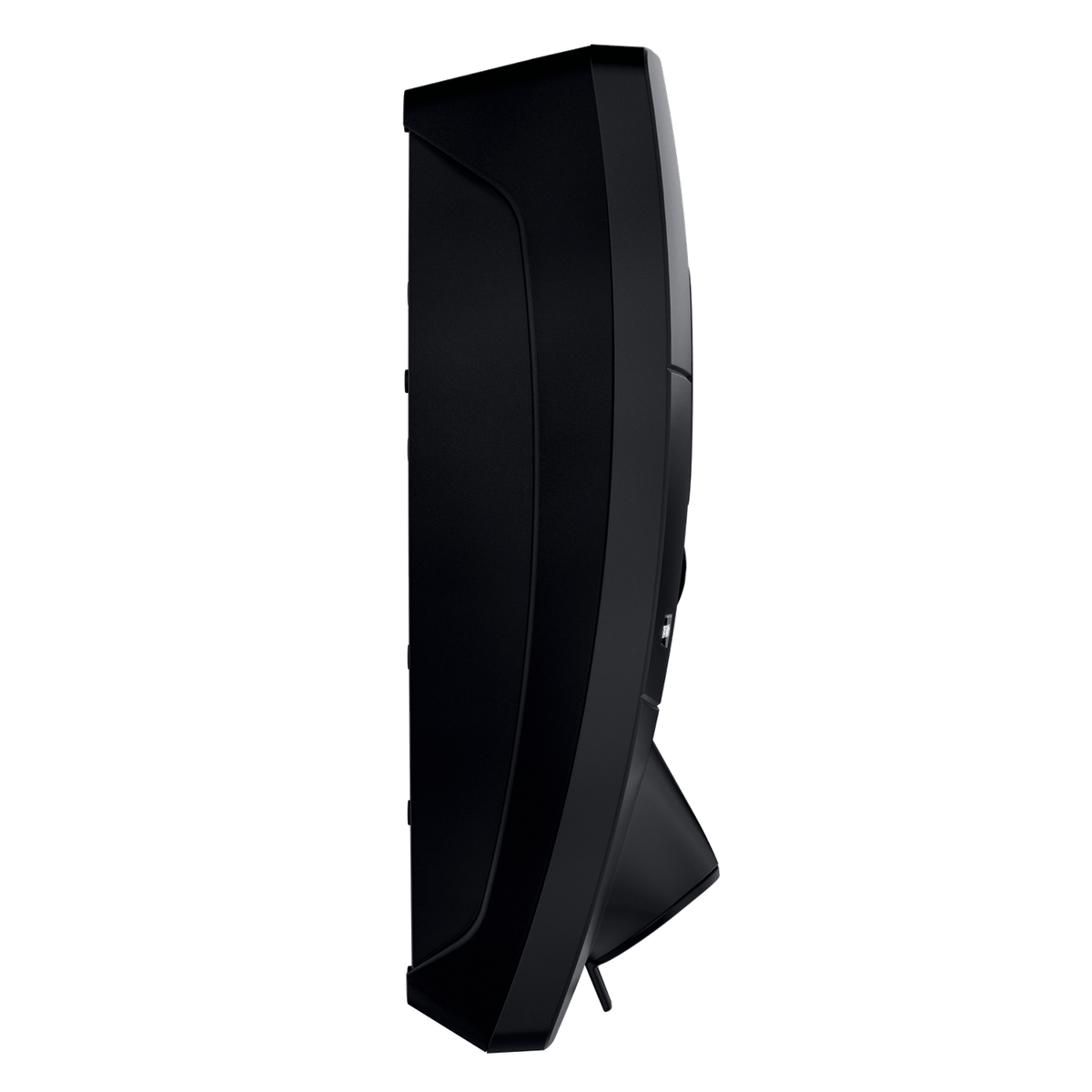

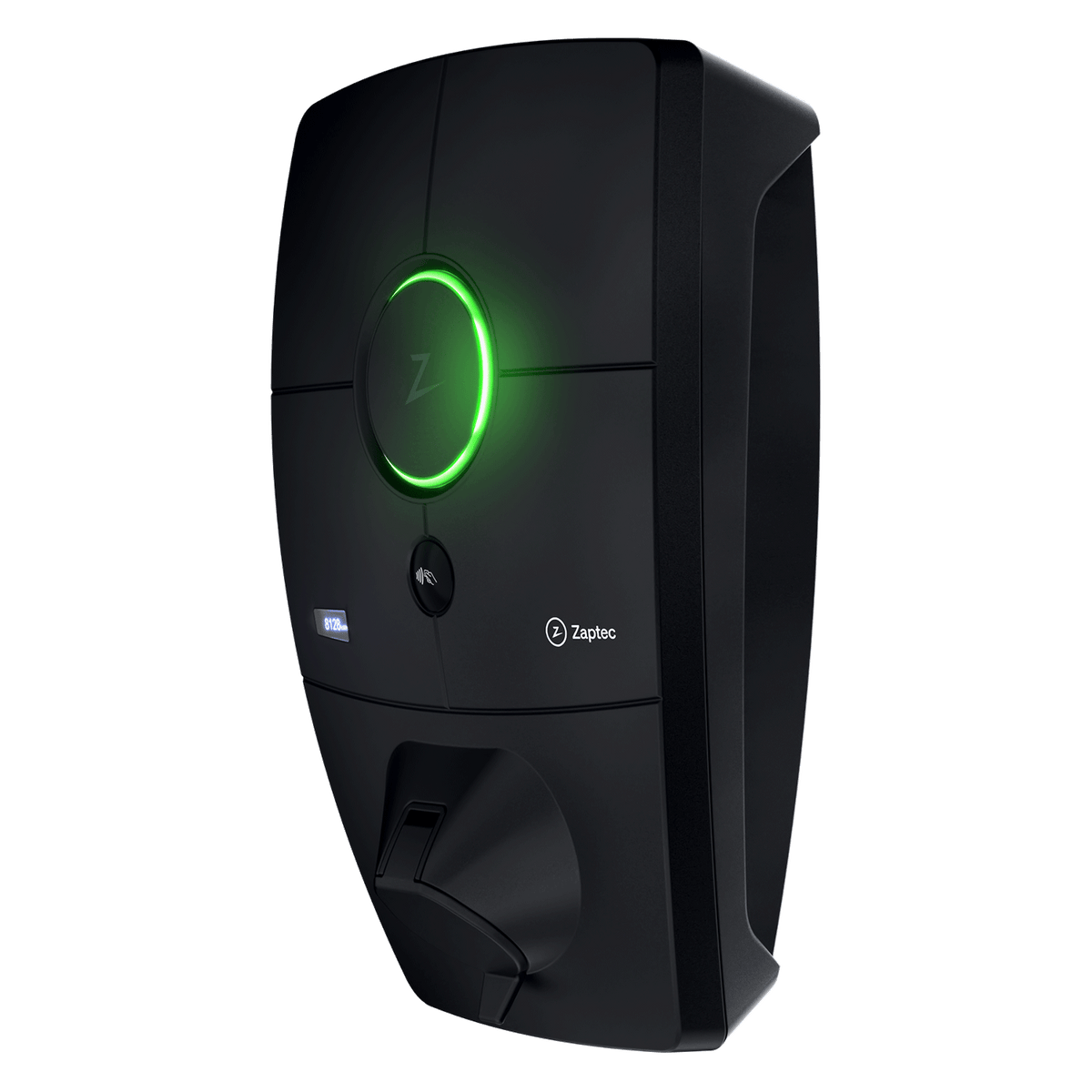

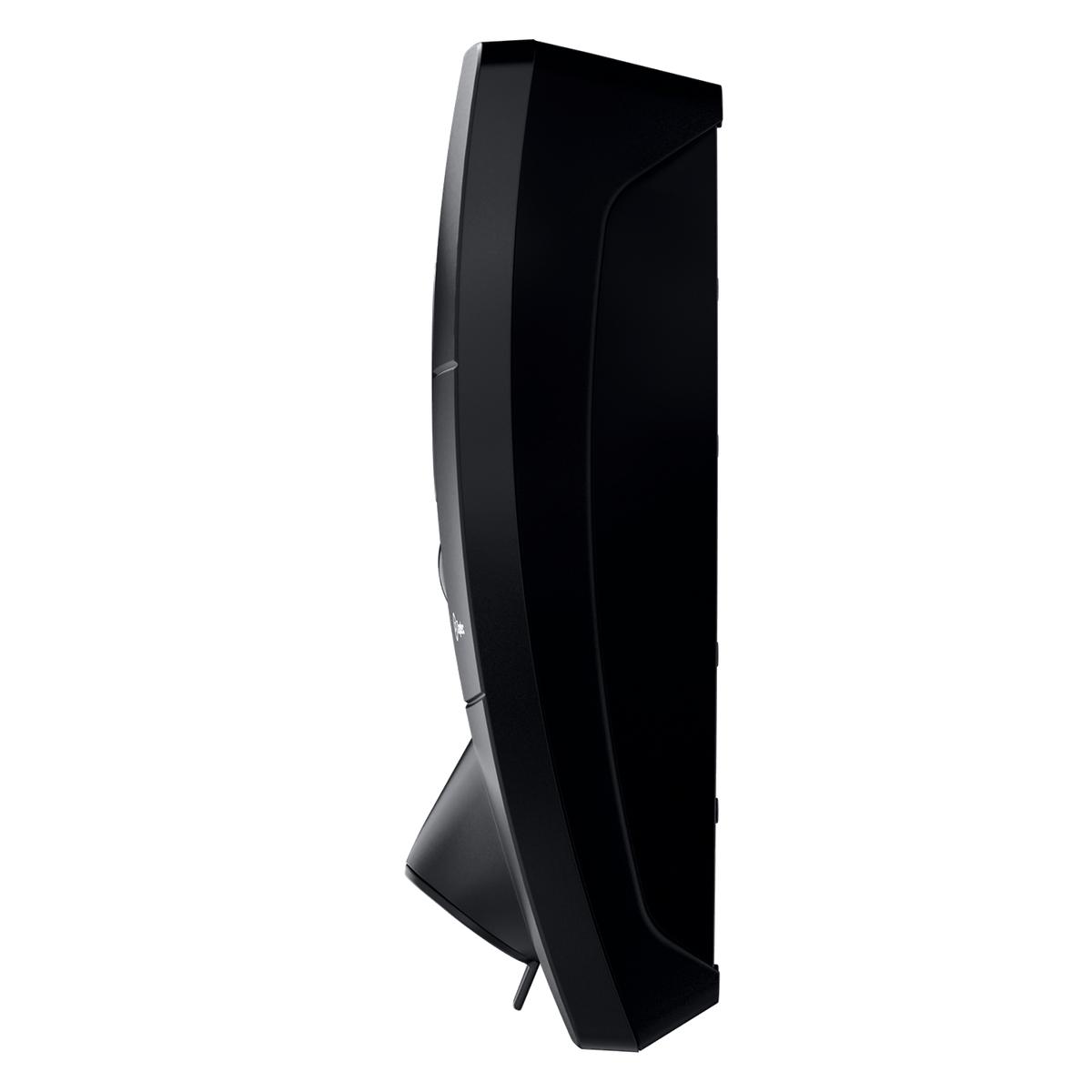

Zaptec Pro (MID) is a smart AC charging system for commercial, workplace, apartment, landlord, fleet and destination charging. From a single charger to 1,000+ charging stations, patented dynamic phase and load balancing makes the most of your available power. Supplied with the Zaptec Pro Backplate required for installation.
Benefits
- Charge more cars without costly upgrades – available power is shared dynamically across all chargers.
- Scale when you need to – start with one or two chargers and add more later without major infrastructure changes.
- Bill users fairly – MID-certified metering records accurate consumption per charger.
- Manage everything in one place – free access to the Zaptec Portal for users, settings, reports and updates.
- Built to last – designed, developed and manufactured in Norway, with a 5-year Zaptec guarantee on the charging station.
Key features
- Up to 22kW AC charging on suitable three-phase supplies
- Designed for commercial and shared charging
- Suitable from a single charger through to 1,000+ charger deployments
- Patented dynamic phase and load balancing
- MID-certified metering (Class B) with display
- Zaptec Portal management
- Wi-Fi and 4G LTE-M connectivity, plus powerline (PLC) communication
- Built-in Type B RCD and integrated MCB
- IP54 and IK10 rated
- Backplate included with every unit
- 5-year Zaptec guarantee on the charging station
Technical specification
| Charger type | AC wall or column-mounted charging station, IEC 61851-1, EVSE Mode 3 |
| Charging output | 22kW at 32A three phase (TN networks); 12.7kW at 32A three phase (IT networks); 7.4kW at 32A single phase (IT/TN)* |
| Charging socket | IEC 62196-2 Type 2 with integrated self-closing cover; electronic lock, can be permanently locked by the user |
| Earth fault protection | Built-in Type B RCD; calibration and self-test before every charging cycle |
| Integrated circuit breaker | Built-in 3 × 40A MCB, Type C |
| Energy metering | Integrated power meter, MID Class B certified (EN 50470); display showing total energy (kWh) |
| Load & phase balancing | Power automatically distributed between Zaptec Pro chargers and phases; dynamic 1-phase / 3-phase selection |
| Installation network / voltage | TN, IT and TT; 230VAC ±10%, 400VAC ±10% |
| Installation circuit | Max. 63A circuit breaker |
| Backplate connection | Cable cross section 2.5–10mm²; cable diameter 10–20mm |
| Connectivity | 4G LTE-M; Wi-Fi 2.4GHz IEEE 802.11 b/g/n; Powerline (PLC) HomePlug Green PHY, 10Mbit/s |
| Identification & configuration | Bluetooth Low Energy 4.1; RFID/NFC reader (Mifare Classic, Type A); ISO 15118 hardware support; RGBW LED status ring |
| Theft protection | Front cover opens only with a special tool; charging cable can be locked permanently |
| Standby power | 3W |
| Dimensions | H 392 × W 258 × D 112mm |
| Weight | Approx. 5kg including backplate |
| Protection | IP54 (indoor and outdoor); IK10 impact; UL94 5VB flammability; UV resistant |
| Electrical protection | Protection class I; overvoltage category III (4kV) |
| Operating temperature | −30°C to +40°C |
| Standards | CE – Radio Equipment Directive 2014/53/EU, RoHS 2011/65/EU; IEC 61851-1 (TÜV SÜD) and IEC 61851-21-2 |
| Integration | Zaptec Portal; third-party integration (API, Webhooks); OCPP 1.6J cloud-to-cloud |
*32A is available but may be restricted by the vehicle's battery condition and temperature at the charging station.
What's included
- 1 × Zaptec Pro (MID) charging station (Zaptec part 900-00021) per unit ordered
- 1 × Zaptec Pro Backplate (Zaptec part ZM000438) per unit ordered – required for every Zaptec Pro installation, wall or post mounted

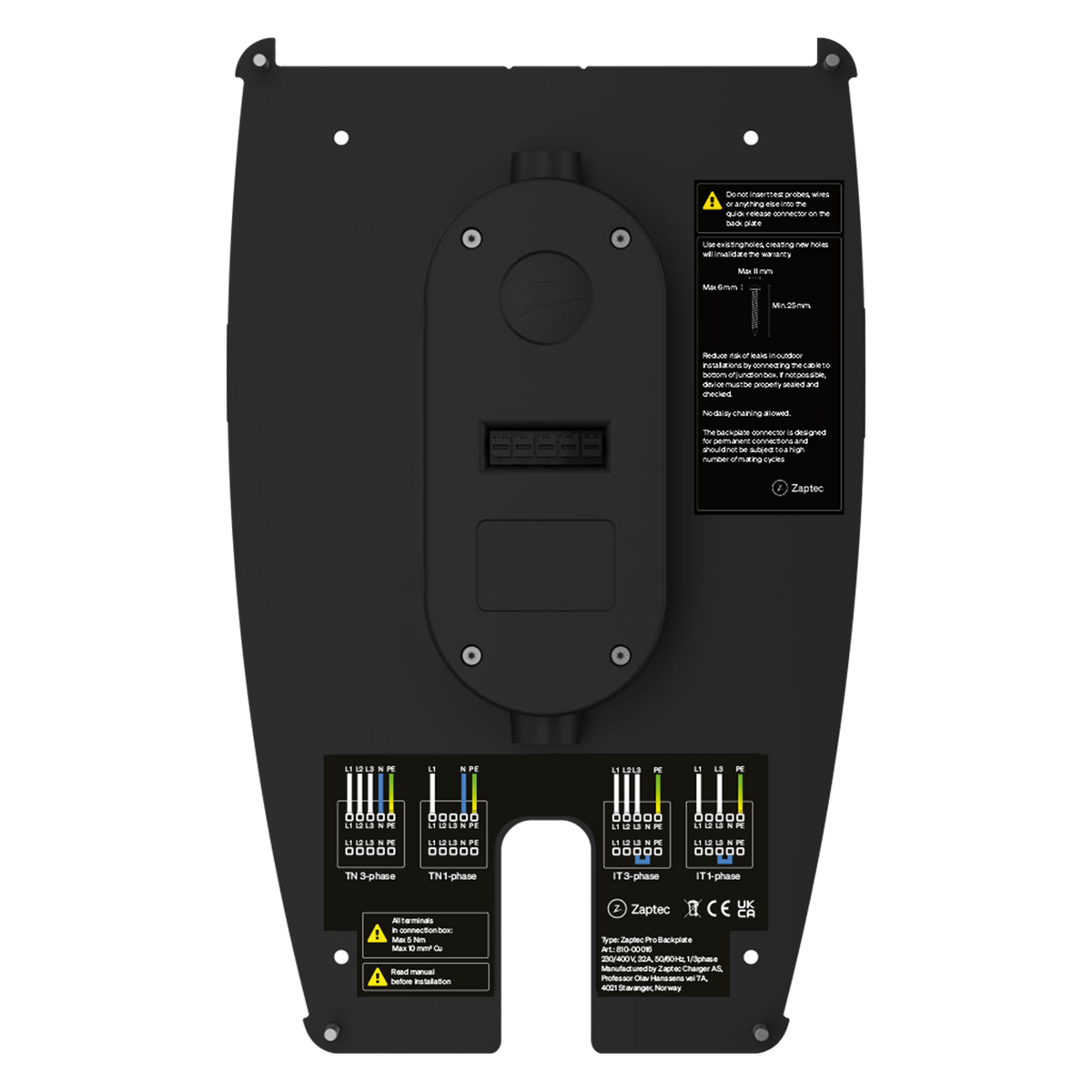

Backplate details: galvanised steel panel, powder-coated black (RAL 9017); ASA+PC junction box; 20mm cable inlet for 2.5–10mm² cable; cable seals supplied (Ø14mm, Ø8mm and blanking plug); 4 × Ø5mm wall fixing holes.
Compatibility
- Works with any electric vehicle.
- Up to 22kW on suitable three-phase TN supplies; also suitable for single-phase supplies (up to 7.4kW).
- Load and phase balancing works across multiple Zaptec Pro chargers on the same installation.
- Backplates allow electrical work to be completed separately from fitting the charger, so sites can be prepared for future chargers.
- Compatible with Zaptec Sense and other Zaptec Pro accessories (sold separately).
- Must be installed by a qualified electrician in line with current UK wiring regulations.
Warranty / guarantee
The Zaptec Pro charging station comes with a 5-year Zaptec guarantee. The backplate is a Zaptec accessory and is covered by Zaptec's accessories guarantee, which varies by product. Read the Zaptec guarantee terms.
Delivery
FREE UK delivery. Target delivery 3–5 working days, subject to stock availability and postcode. Tracking will be provided following dispatch.
If you order your charger with installation, it won't be couriered to you – our installation team will bring it to your property on installation day.
Installation
Professional installation by Infinity Solar UK is available when you buy a single charger in areas we cover. Enter your postcode to check availability and choose your preferred installation dates – our team will contact you to confirm your appointment.
Installation isn't available in your area? You can still buy your Zaptec charger with FREE delivery.
Trade quantities (10, 20 or 50 units) are supplied product only.
FAQs
Is the backplate included?
Yes. Every Zaptec Pro unit is supplied with its backplate, which is required for installation.
How many chargers can I connect?
Zaptec Pro scales from a single charger to 1,000+ charging stations, all managed through the Zaptec Portal.
What is load and phase balancing?
Available power is shared automatically between chargers and phases, so more vehicles can charge without overloading your supply.
Can I bill individual users?
Yes. MID-certified metering records accurate consumption per charger, and the Zaptec Portal provides charge reports per user.
Can I buy in bulk?
Yes. Choose 1, 10, 20 or 50 units, with volume pricing and free UK delivery. Installation is available on single-unit orders only.
How long is the guarantee?
5 years from Zaptec on the charging station. The backplate is covered by Zaptec's accessories guarantee.
How long does delivery take?
Our target is 3–5 working days, subject to stock availability and postcode.
